XM-A560 GNSS Antenna – Four‑Star Full‑Frequency Helical

Compact, high‑precision helical antenna supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS, and IRNSS. Designed for drones, handheld terminals, and small RTK equipment — delivers reliable positioning in a lightweight form factor.

GPS L1/L2/L5

BDS B1/B2/B3

GLONASS L1/L2/L3

Galileo E1/E5a/E5b/E6

SBAS / QZSS / IRNSS

RHCP · 2 dBi Gain

0Constellations

0Gain (dBi)

0Weight (g)

≤2VSWR

High‑Precision Helical Antenna for Multi‑GNSS

The XM‑A560 is a four‑star full‑frequency helical antenna with exceptional phase center stability and low axial ratio. Its compact size and light weight make it ideal for integration into drones, handheld terminals, and portable RTK equipment, delivering reliable GNSS signals even in challenging environments.

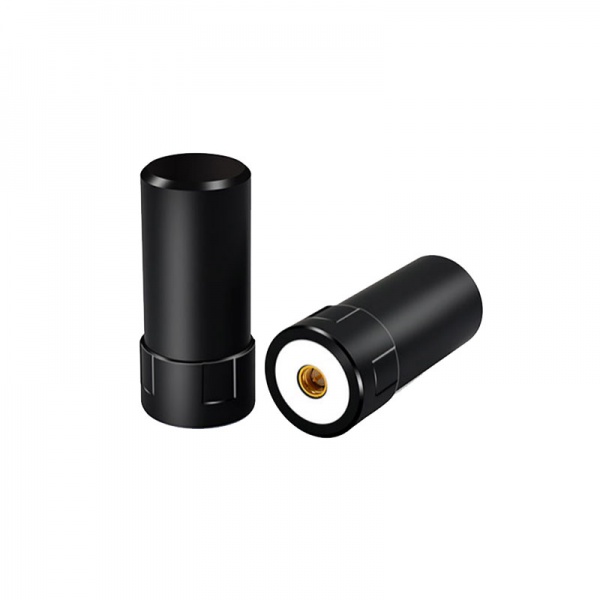

XM-A560 GNSS helical antenna detail – SMA connector and LNA

Key Features

The XM‑A560 supports all major GNSS constellations and frequencies, including GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, as well as SBAS, QZSS, and IRNSS. Its right‑hand circular polarization (RHCP) and low noise figure ensure excellent signal reception.

Four‑star full‑frequency coverage (GPS + BDS + GLONASS + Galileo + others)
Gain 2 dBi, axial ratio ≤3 dB, VSWR ≤2
Built‑in LNA with 32±2 dB gain, noise figure ≤2 dB
Compact size: Φ27.3 × 58.6 mm, weight ≤20 g
SMA‑J connector for easy integration
Wide operating voltage 3.3‑12V, current ≤50 mA

Six Advantages of XM‑A560 Antenna

Engineered for precision, the XM‑A560 delivers outstanding performance in a miniature package, making it the ideal choice for demanding positioning applications.

🛰️

Multi‑Constellation

Supports GPS, BDS, GLONASS, Galileo, QZSS, SBAS, and IRNSS — full global coverage.

Learn More →

📡

Full‑Frequency

Covers L1/L2/L5 and all major GNSS bands, ensuring compatibility with high‑precision receivers.

Learn More →

📏

Compact & Lightweight

Φ27.3 × 58.6 mm, weighing only 20 g — ideal for drones and portable devices.

Learn More →

🔋

Low Power Consumption

Operating current ≤50 mA, voltage range 3.3‑12V — suitable for battery‑powered equipment.

Learn More →

📶

High‑Gain LNA

Built‑in low‑noise amplifier with 32±2 dB gain and noise figure ≤2 dB for superior sensitivity.

Learn More →

🌡️

Wide Temperature Range

Operating -40°C to +70°C, storage -55°C to +85°C — built for harsh environments.

Learn More →

Detailed Antenna Specifications

Complete technical parameters for the XM‑A560 GNSS helical antenna.

General

Antenna Type	Four‑star full‑frequency helical antenna
Polarization	Right‑hand circular polarization (RHCP)
Connector Type	SMA‑J
Antenna Size	Φ27.3 × 58.6 mm
Antenna Weight	≤20 g

Frequency & Performance

Frequency Range	GPS L1/L2/L5 · BDS B1/B2/B3 · GLONASS L1/L2/L3 · Galileo E1/E5a/E5b/E6 · SBAS L1/L5 · QZSS L1/L2/L5/L6 · IRNSS L5
Gain	2 dBi
Axial Ratio	≤3 dB
Horizontal Coverage Angle	360°
VSWR	≤2
Phase Center Error	±2 mm
Port Impedance	50 Ω

LNA Specifications

LNA Gain	32 ± 2 dB
Noise Figure	≤2 dB
Output VSWR	≤2
In‑band Flatness	±2 dB
Differential Propagation Delay	≤5 ns

Electrical & Environmental

Operating Voltage	3.3 – 12.0 V
Operating Current	≤50 mA
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +85°C

Trusted by GNSS Professionals

We combine technical expertise, manufacturing excellence, and global logistics to deliver reliable antenna solutions.

✅

ISO9001

Quality management certified

📋

CE / FCC / RoHS

Global compliance standards

🔧

OEM / ODM

Custom designs available

🛠️

Technical Support

Expert engineers ready to assist

🏭

Factory Direct

Competitive pricing

📦

Fast Delivery

Global logistics network

🔬

In‑House Testing

Full quality control

⭐

10+ Years

Industry experience

Versatile Deployment

The XM‑A560 is designed for a wide range of positioning and navigation applications where size, weight, and performance matter.

🚁

Drones & UAVs

Lightweight and compact, ideal for drone navigation, mapping, and surveying.

Learn More

📱

Handheld Terminals

Perfect for rugged handheld GNSS receivers and data collectors.

Learn More

📡

Small RTK Equipment

Provides reliable GNSS signals for compact RTK base stations and rovers.

Learn More

🗺️

GIS & Surveying

Accurate positioning for GIS data collection and land surveying.

Learn More

🚜

Precision Agriculture

Enables high‑accuracy guidance for tractors and agricultural machinery.

Learn More

🏗️

Infrastructure Monitoring

Used in structural deformation monitoring and asset tracking.

Learn More
