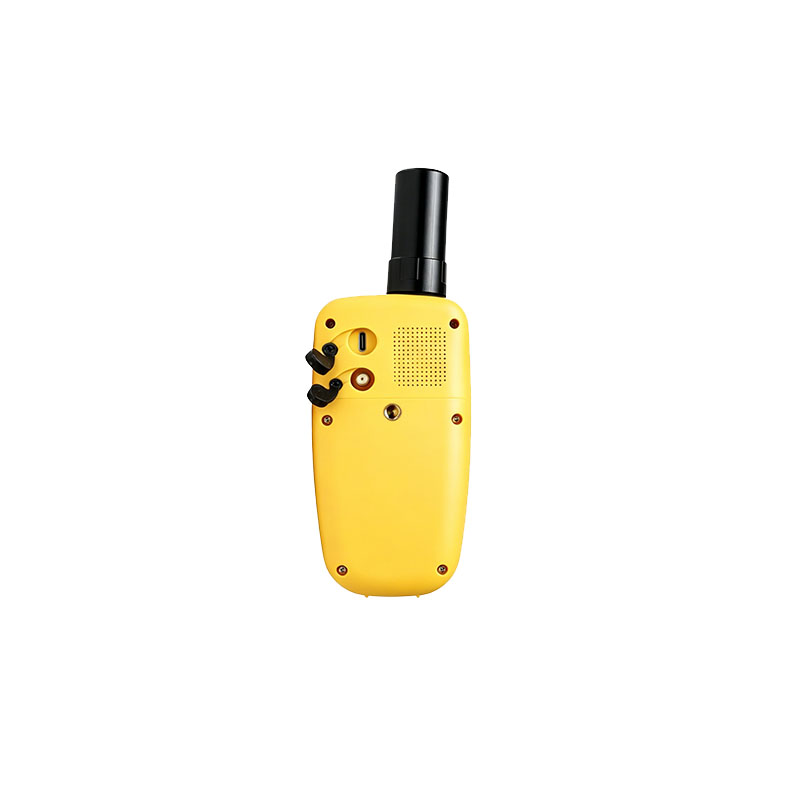

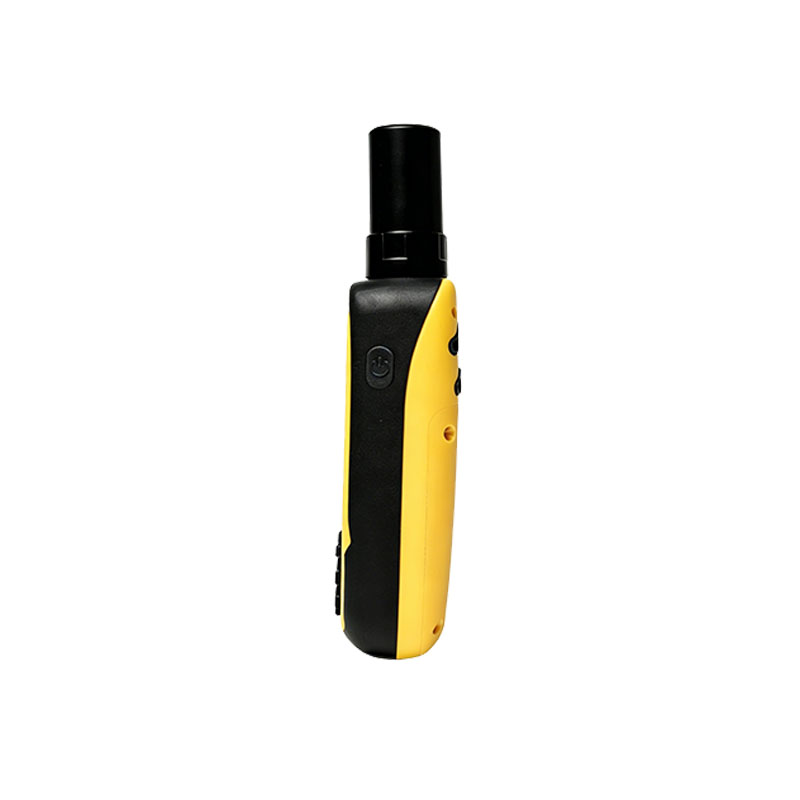

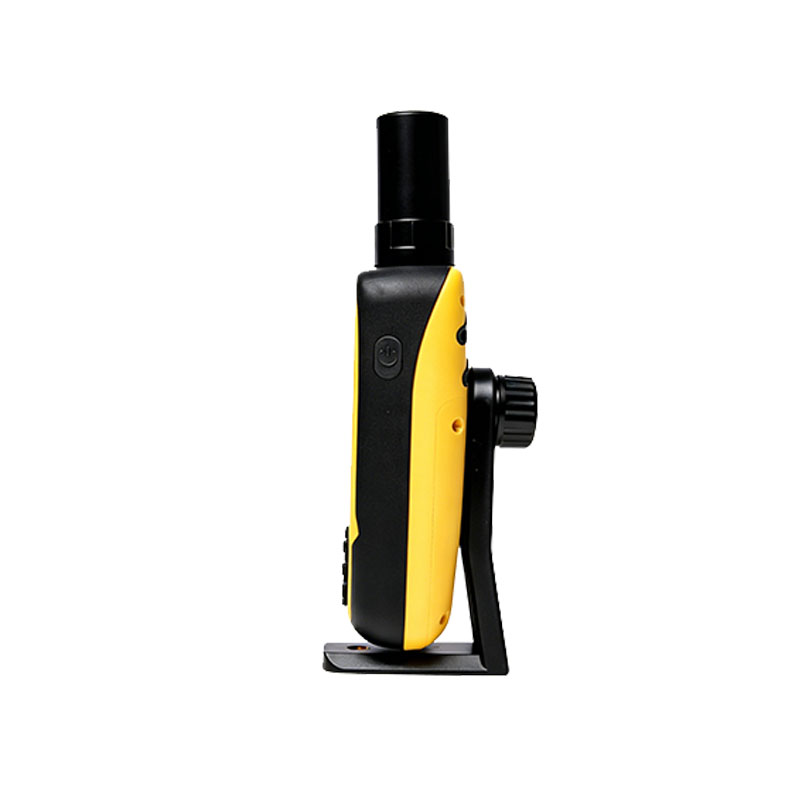

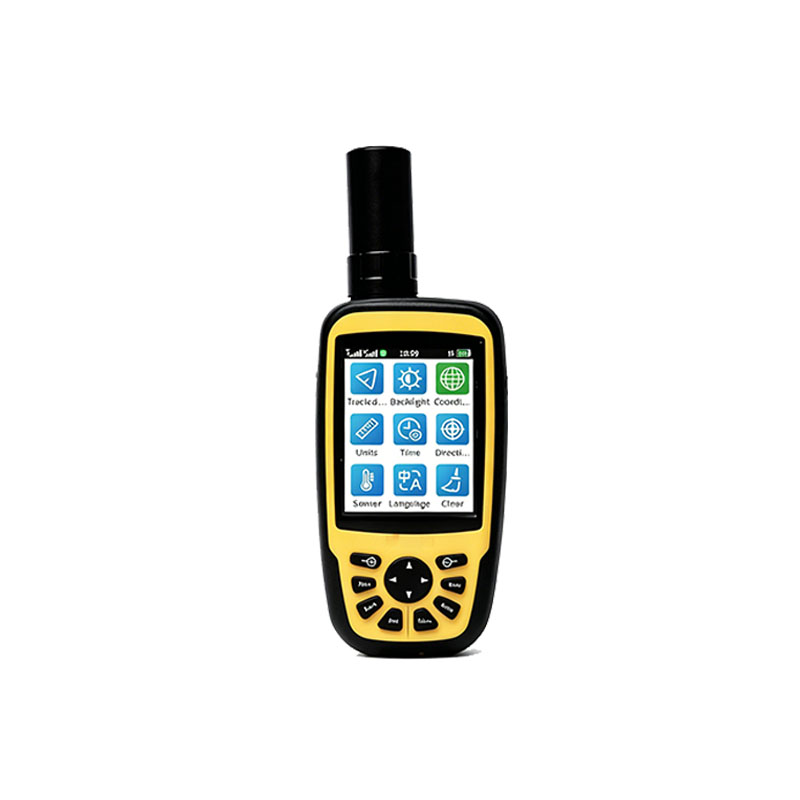

XM320R High-Precision GNSS RTK Handheld Surveying Device

XM320R High-Precision GNSS RTK Handheld Surveying Device

The XM320R is a compact and high-performance GNSS RTK handheld device designed for professional surveying and geospatial applications. Featuring multi-constellation support including GPS, BeiDou, Galileo, and QZSS, it delivers reliable centimeter-level positioning accuracy in real time.

With built-in 4G connectivity, CORS support, and cloud data synchronization, the XM320R enables efficient field data collection, seamless data management, and precise measurement workflows. Its rugged design,

Select the number of specifications

Please check the product information you want!

Product Detail

XM320R RTK GNSS Handheld Receiver | Surveying Device

NEXT-GENERATION RTK POSITIONING

XM320R RTK GNSS Handheld Receiver

Engineered for professionals who demand centimeter-level positioning accuracy, multi-constellation GNSS support, and reliable performance in challenging outdoor environments. Ideal for surveying, construction, GIS mapping, utilities, agriculture, mining, and infrastructure inspection.

Centimeter-Level RTK Accuracy

GPS · BeiDou · Galileo · GLONASS

Android Industrial Platform

IP67 Rugged Protection

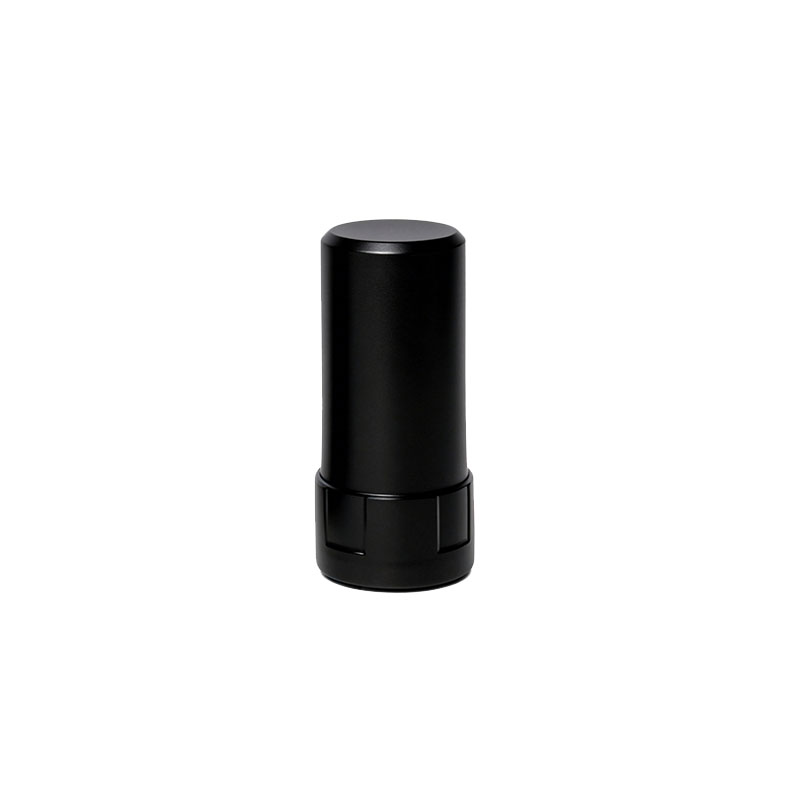

High-Precision Antenna

All-Day Battery Performance

Request a Quote View Specifications

XM320R RTK GNSS handheld receiver for centimeter-level surveying

PRODUCT OVERVIEW

Built for Precision. Engineered for Reliability.

The STARMAX XM320R RTK GNSS Handheld Receiver combines advanced multi-constellation satellite positioning, industrial-grade durability, and intelligent Android computing into one powerful field solution. Designed for demanding surveying, construction, GIS mapping, utility inspection, mining, agriculture, and infrastructure management applications, XM320R delivers dependable centimeter-level positioning performance wherever precision matters.

Professional GNSS Surveying Solution

Powered by next-generation RTK technology, XM320R supports GPS, BeiDou, Galileo, GLONASS and QZSS for superior positioning stability even in complex environments.

Its rugged IP67 enclosure, long-life battery, sunlight-readable touchscreen, and high-performance GNSS engine enable survey professionals to work efficiently under harsh outdoor conditions.

Centimeter-Level RTK Positioning Accuracy
Full-Constellation Multi-Frequency GNSS Tracking
Industrial Android Operating System
IP67 Waterproof & Dustproof Protection
High-Capacity Battery for Full-Day Operation
Ideal for Surveying, GIS, Construction & Mining

1 cm

RTK Position Accuracy

5+

Satellite Constellations

IP67

Industrial Protection

12 Hrs

Continuous Operation

📡

High-Precision Positioning

Professional RTK engine providing centimeter-level positioning accuracy for surveying and engineering projects.

🌍

Multi-Constellation GNSS

Supports GPS, BeiDou, Galileo, GLONASS and QZSS to improve signal availability and positioning reliability.

🛡

Industrial Rugged Design

Built with IP67 protection and reinforced housing to withstand rain, dust, vibration and harsh environments.

⚡

All-Day Productivity

Large-capacity battery, Android platform and efficient field software maximize productivity during long working hours.

CORE FEATURES

Six Powerful Features for Professional Surveying

XM320R integrates advanced RTK positioning technology, industrial-grade durability, and intelligent Android computing into one compact handheld device. Built for professionals working in demanding environments, it delivers reliable centimeter-level positioning and seamless field productivity.

📡

Centimeter RTK Accuracy

Professional RTK engine provides stable centimeter-level positioning with rapid initialization for surveying, GIS mapping, engineering and precision measurement.

🛰️

Full GNSS Support

Tracks GPS, BeiDou, Galileo, GLONASS and QZSS simultaneously to maximize satellite visibility and positioning reliability in complex environments.

🛡️

Industrial IP67 Protection

Designed for harsh outdoor environments with waterproof, dustproof and shock-resistant construction that meets demanding industrial applications.

⚡

Long Battery Life

High-capacity battery supports full-day surveying operations with optimized power management for uninterrupted productivity.

📱

Android Intelligent Platform

Powered by Android OS with a responsive touchscreen, customizable applications, wireless connectivity and efficient field data collection.

🌍

Multiple Industry Applications

Ideal for land surveying, construction, mining, utilities, agriculture, GIS mapping, infrastructure inspection and asset management.

RTK TECHNOLOGY

Centimeter-Level RTK Positioning

The XM320R leverages advanced Real-Time Kinematic (RTK) technology to deliver centimeter-level positioning accuracy, enabling precise surveying, mapping, and construction applications with rapid initialization and high reliability.

RTK

Multi-Constellation Signal Tracking

XM320R simultaneously tracks GPS, BeiDou, Galileo, GLONASS, and QZSS satellites, ensuring maximum satellite visibility and robust signal reception even in challenging environments.

Real-Time Correction Processing

Onboard RTK engine processes correction data from base stations or network services (NTRIP) to compute precise positioning with centimeter-level accuracy.

Fast & Reliable Initialization

Advanced algorithms ensure rapid RTK fix initialization with high reliability, minimizing downtime and maximizing productivity in the field.

Centimeter Output

Delivers horizontal accuracy better than 1 cm + 1 ppm and vertical accuracy better than 2 cm + 1 ppm in RTK fixed mode, meeting the most demanding surveying requirements.

APPLICATIONS

Versatile Across Industries

XM320R is engineered to perform in a wide range of professional applications, from land surveying and construction to agriculture and emergency response. Its rugged design and high-precision GNSS make it the ideal tool for field professionals.

⛰️

Land Surveying & Mapping

Precise boundary surveys, topographic mapping, and cadastral measurements with centimeter-level RTK accuracy.

🏗️

Construction & Engineering

Grade control, stakeout, site layout, and as-built verification for infrastructure and building projects.

⛏️

Mining & Quarrying

Volume calculation, blast pattern design, and pit mapping in demanding and dusty environments.

🌾

Agriculture & Precision Farming

Field boundary mapping, crop health monitoring, and precision guidance for farm equipment.

🚰

Utilities & Infrastructure

Asset mapping, pipeline and utility inspection, and infrastructure monitoring with high-accuracy positioning.

🚁

Emergency & Disaster Response

Rapid damage assessment, search and rescue, and incident mapping with reliable GNSS positioning.

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM320R RTK GNSS Handheld Receiver.

Communication Protocol	UDP / TCP (customizable)
4G CAT1 Frequency Band	FDD: Band 1/3/5/8; TDD: Band 34/38/39/40/41
GNSS Module	BD/GPS multi-mode module, dual-frequency single point (QM200R2), single-frequency RTK (QM200R1)
Positioning Accuracy (RTK)	Horizontal < 1 cm CEP; Vertical < 2 cm CEP
Positioning Accuracy (Single Point)	Horizontal < 1.5 m CEP; Vertical < 2.5 m CEP
BDS/GPS Sensitivity	Better than -162 dBm
Time Accuracy	1PPS 20 ns
Speed Measurement Accuracy	GNSS 0.1 m/s CEP
Reacquisition Sensitivity	-158 dBm
Battery	3000 mAh / 3.7V lithium
Operating Voltage	3.8V
Working Current	300 mA
Standby Current	< 5 mA
Indicators	Red – charging / low battery / PPT; Green – fully charged / GPS; Blue – communication network; Yellow – WiFi; Orange – BT
NFC	Supports NFC card punching, personnel information
Sensors	G-Sensor, Gyroscope
Dimensions	100 × 60 × 20 mm
Weight	80 g (including battery)
Optional Modules	WiFi, Bluetooth
Waterproof & Dustproof	IP67
Drop Resistance	1.2 meters
Storage Temperature	-30°C to +85°C
Operating Temperature	-20°C to +70°C

SATELLITE CONSTELLATIONS

Global Satellite Coverage

XM320R supports all major global navigation satellite systems, providing robust positioning performance in any region and environment.

🇺🇸

GPS

L1 C/A, L2C, L2P(Y), L5

🇨🇳

BeiDou

B1I, B2I, B3I, B1C, B2a, B2b

🇪🇺

Galileo

E1, E5a, E5b, E6

🇷🇺

GLONASS

G1, G2, G3

🇯🇵

QZSS

L1, L2, L5, L6

🌐

SBAS

WAAS, EGNOS, MSAS, GAGAN, SDCM

SOFTWARE COMPATIBILITY

Works with Your Tools

XM320R is compatible with a wide range of professional surveying, mapping, and GIS software, ensuring seamless integration into your existing workflow.

🗺️

GIS Software

ArcGIS, QGIS, MapInfo

📐

Surveying Software

Trimble Access, Leica Infinity, CHC LandStar

🏗️

CAD & Engineering

AutoCAD, Civil 3D, BricsCAD

📊

Data Management

Excel, CSV, Shapefile, DXF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM320R RTK GNSS Handheld Receiver.

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM320R.

📄

Product Datasheet

Complete technical specifications and features overview.

Download PDF

📘

User Manual

Comprehensive guide for setup, operation, and maintenance.

Download PDF

⚙️

SDK & API

Software development kit for custom integration and applications.

Download ZIP
