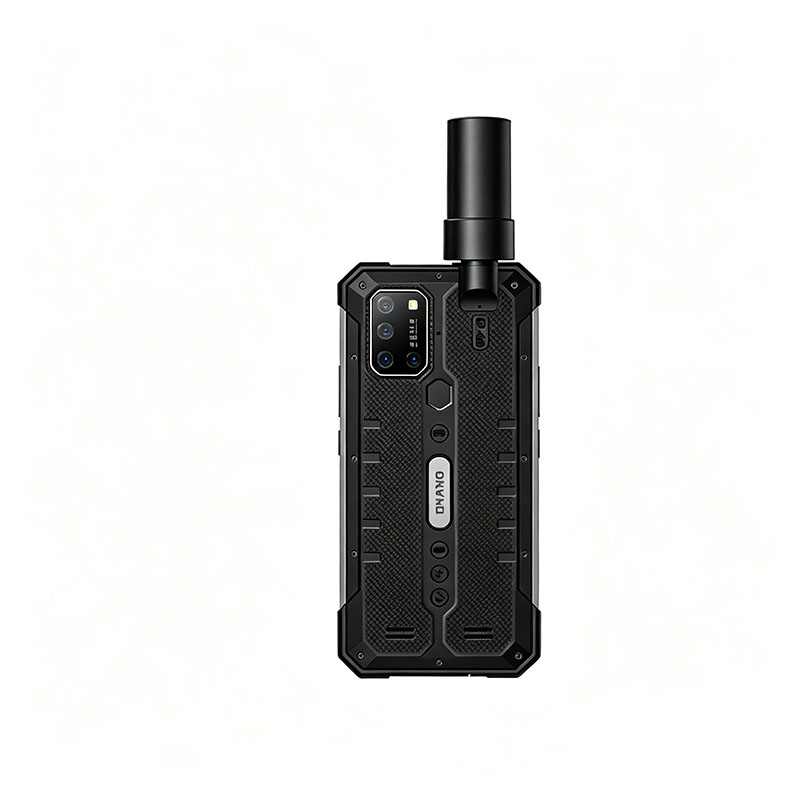

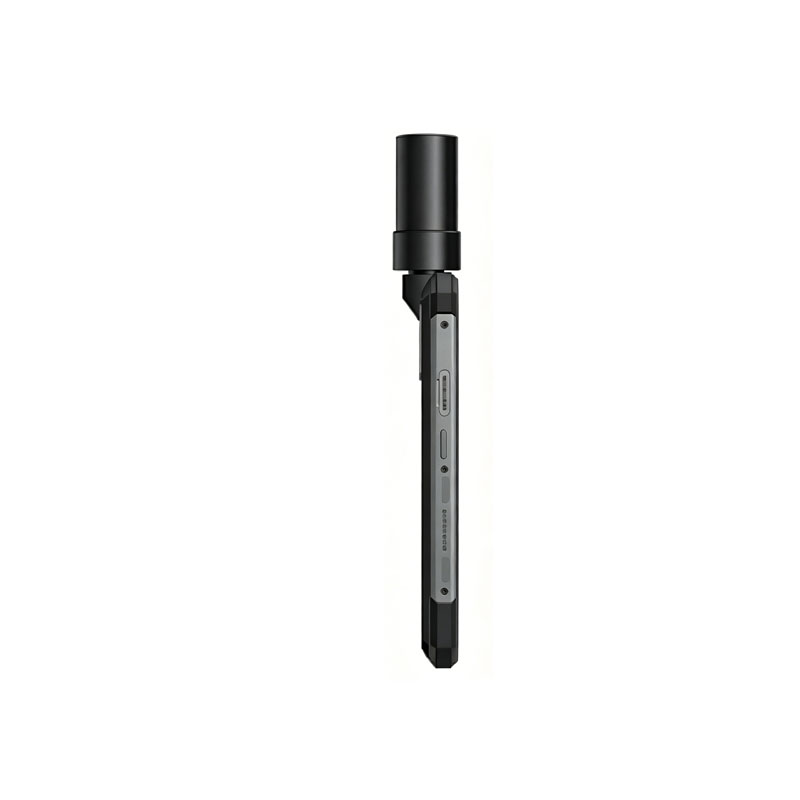

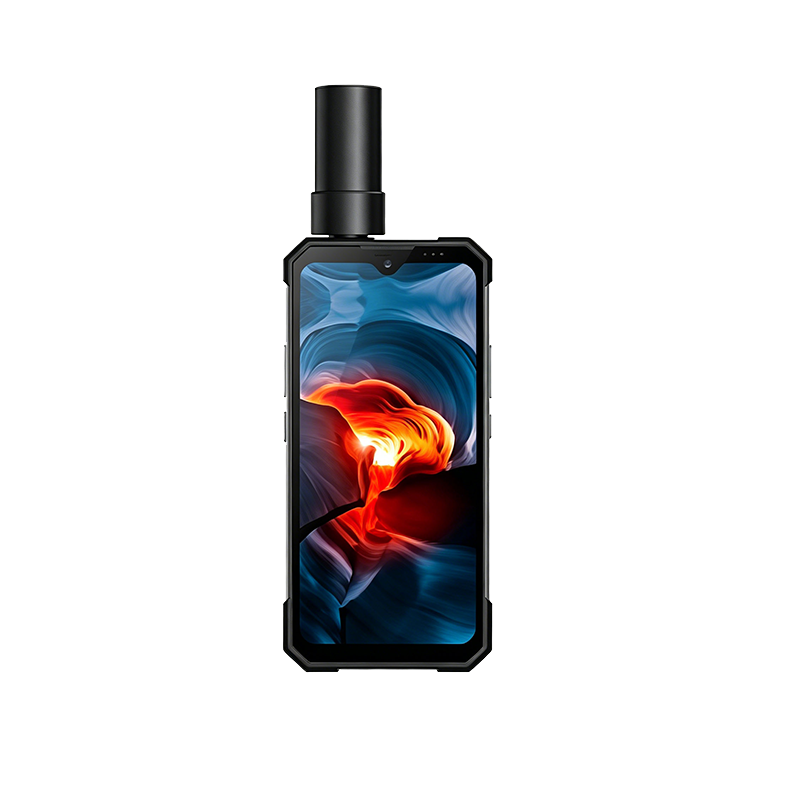

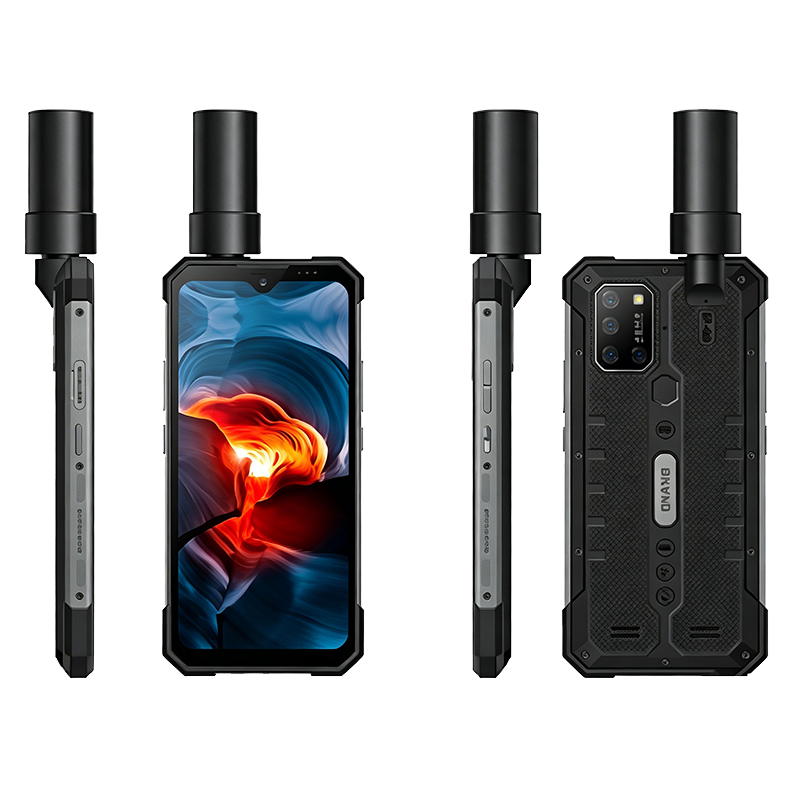

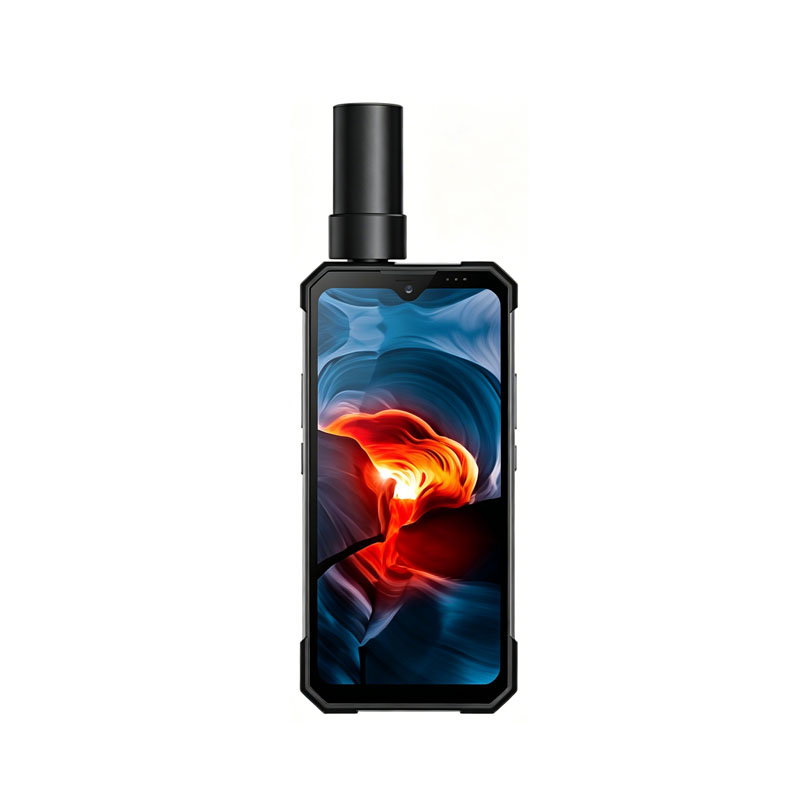

XM630R High-Precision Handheld Android Device with Configurable GNSS

XM630R High-Precision Handheld Android Device with Configurable GNSS

XM630R是一款坚固耐用的安卓手持设备，专为专业现场应用而设计，提供可配置的高精度GPS，可选亚米级或厘米级精度。它结合了5G连接、IP68防水等级和强大的八核处理器，可为测绘、巡检、物流以及任何需要可靠精准定位的应用提供强大的性能。

Select the number of specifications

Please check the product information you want!

Product Detail

XM630R High-Precision Handheld Android Device with Configurable GNSS | Starmax International

CONFIGURABLE GNSS · ANDROID · 5G

XM630R High-Precision Handheld Android Device with Configurable GNSS

Configurable positioning from standard single‑point to sub‑meter and centimeter‑level RTK, all in a rugged Android 10 handheld with 6.3‑inch FHD display, IP68 protection, and 5G connectivity.

Configurable GNSS Accuracy

GPS · BeiDou · GLONASS · Galileo

Android 10 Platform

IP68 Rugged Protection

6.3' FHD Display

5G & Dual‑SIM

<5mStandard Accuracy

<1mSub‑meter (D‑GNSS)

<10cmRTK Accuracy

IP68Industrial Grade

Request a Quote View Specifications

PRODUCT OVERVIEW

One Device. Three Accuracy Levels.

The STARMAX XM630R is a high‑precision handheld Android device with configurable GNSS accuracy – from standard single‑point positioning (5m CEP) to sub‑meter (D‑GNSS) and centimeter‑level RTK. Built on Android 10 with a 6.3‑inch FHD display, IP68 protection, and 5G connectivity, it adapts to your project requirements, whether you need basic asset tracking or high‑precision surveying.

Flexible GNSS for Any Application

Choose the accuracy level that fits your workflow: standard mode for general navigation, sub‑meter mode with differential corrections for GIS mapping, and RTK mode for centimeter‑level surveying. The XM630R’s multi‑constellation GNSS engine ensures reliable positioning even in challenging environments.

With its rugged IP68 design, large 6.3‑inch sunlight‑readable display, and Android 10 with Google Mobile Services, the XM630R is the ultimate field‑ready tool for surveyors, engineers, and GIS professionals.

Configurable Accuracy: 5m / <1m / <10cm
GPS + BeiDou + GLONASS + Galileo
Android 10 with GMS
IP68 Waterproof & Dustproof
6.3' FHD Display (2340×1080)
5G NR & Dual‑SIM Support

3

Accuracy Levels

4

Constellations

IP68

Industrial Protection

5400mAh

Battery Capacity

🎚️

Configurable GNSS

Choose between standard, sub‑meter, or RTK accuracy to match your project needs and budget.

📱

Android 10 + GMS

Full Android experience with access to millions of apps, including professional surveying and GIS tools.

🛡

IP68 Rugged Design

Waterproof, dustproof, and shock‑resistant housing built to survive drops, rain, and extreme conditions.

📶

5G & Dual‑SIM

Ultra‑fast 5G connectivity and dual‑SIM support for seamless communication in the field.

CORE FEATURES

Six Powerful Features for Any Accuracy Need

XM630R offers the flexibility to choose your GNSS accuracy level, combined with industrial Android computing, rugged durability, and high‑speed connectivity – all in a single handheld device.

🎚️

Configurable GNSS

Three accuracy modes: standard (5m), sub‑meter (<1m), and centimeter‑level RTK (<10cm) – selectable via software.

Learn More →

🛰️

Multi‑Constellation GNSS

Supports GPS, BeiDou, GLONASS, and Galileo for robust satellite coverage and fast fix times.

Learn More →

📱

Android 10 with GMS

Full Android ecosystem with Google Play, enabling custom field apps, data collection, and cloud integration.

Learn More →

🛡️

IP68 Rugged Protection

Waterproof, dustproof, and drop‑proof to 1.2 meters – built to withstand the toughest field conditions.

Learn More →

📶

5G & Dual‑SIM

Next‑generation 5G connectivity and dual‑SIM support ensure reliable data transmission and communication anywhere.

Learn More →

🌍

Multiple Industry Applications

Ideal for surveying, GIS mapping, construction, utilities, agriculture, and infrastructure inspection.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM630R.

Key Components

GNSS Antenna Multi‑constellation
6.3' FHD Display Sunlight‑readable
NFC Module Contactless ID
48MP Camera Documentation
5400mAh Battery All‑day power
Type-C Port Fast charging

CONFIGURABLE GNSS

Choose Your Accuracy Level

XM630R offers three configurable GNSS accuracy modes to match your project requirements – from standard navigation to high‑precision RTK surveying.

GNSS
Config

Standard Mode – 5m CEP

Ideal for general navigation, asset tracking, and basic GIS tasks. Uses single‑point positioning with SBAS corrections.

Sub‑meter Mode – <1m CEP

Enabled via differential corrections (D‑GNSS) from SBAS, NTRIP, or base stations. Perfect for high‑accuracy GIS mapping.

RTK Mode – <10cm CEP

Centimeter‑level precision with RTK corrections via NTRIP or a local base station. Designed for professional surveying and construction.

Seamless Switching

Change accuracy modes on the fly via software – no hardware changes required. Adapt to any task with one device.

APPLICATIONS

Versatile Across Industries

XM630R adapts to a wide range of professional applications – from general asset tracking to high‑precision surveying – with configurable GNSS accuracy.

⛰️

Land Surveying

RTK mode for boundary surveys, topographic mapping, and cadastral measurements with centimeter precision.

🏗️

Construction

Grade control, stakeout, and site layout with sub‑meter or RTK accuracy depending on project phase.

🗺️

GIS Mapping

Sub‑meter accuracy for asset management, utility mapping, and environmental monitoring.

🌾

Agriculture

Precision farming with RTK for field boundary mapping and machine guidance.

🚰

Utilities & Infrastructure

Asset inspection, pipeline mapping, and infrastructure monitoring with reliable GNSS.

🚁

Emergency Response

Rapid damage assessment and search‑and‑rescue with fast positioning and rugged reliability.

SATELLITE CONSTELLATIONS

Global Satellite Coverage

XM630R supports all major global navigation satellite systems, ensuring robust positioning performance in any region.

🇺🇸

GPS

L1 C/A, L2C, L5

Global Positioning System

🇨🇳

BeiDou

B1I, B2I, B3I

Chinese satellite navigation

🇪🇺

Galileo

E1, E5a, E5b

European global system

🇷🇺

GLONASS

G1, G2

Russian global system

🇯🇵

QZSS

L1, L2, L5

Japanese augmentation

🌐

SBAS

WAAS, EGNOS, MSAS

Satellite‑based augmentation

SOFTWARE COMPATIBILITY

Works with Your Tools

XM630R runs Android 10 with GMS, giving you access to a vast ecosystem of surveying, mapping, and GIS applications.

🗺️

GIS Software

ArcGIS, QGIS, MapInfo

📐

Surveying Apps

Trimble Access, Leica Infinity, CHC LandStar

🏗️

CAD & Engineering

AutoCAD, Civil 3D, BricsCAD

📊

Data Management

Excel, CSV, Shapefile, DXF

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM630R High‑Precision Handheld Android Device. Click on each category to expand.

General+

OS	Android 10 (with GMS)
CPU	MTK6853 2.0GHz Octa‑core
RAM/ROM	8GB / 128GB or 256GB
Display	6.3' FHD IPS 2340×1080
Touchscreen	Capacitive, multi‑touch
Dimensions	167 × 80 × 15 mm
Weight	320g (including battery)

GNSS Performance+

Constellations	GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
Standard Accuracy	5 m CEP
Sub‑meter Accuracy	< 1 m CEP (with DGPS)
RTK Accuracy	< 10 cm CEP
Sensitivity	Better than -162 dBm
Time Accuracy	1PPS 20 ns
Speed Accuracy	0.1 m/s CEP

Communication+

5G NR	N1/3/41/77/78/79
4G LTE	FDD B1/B3/B7/B8/B20/B28; TDD B34/38/39/40/41
WCDMA	B1/B2/B5/B8
GSM	B2/B3/B5/B8
WiFi	2.4G/5G dual‑band 802.11 a/b/g/n/ac
Bluetooth	BT5.1
NFC	13.56 MHz, ISO14443A/B
SIM	Dual Nano SIM

Battery & Power+

Type	Lithium polymer, 5400mAh
Charging	Type‑C, 5V/3A

Physical & Environmental+

Protection	IP68 waterproof & dustproof
Drop Resistance	1.2 meters
Operating Temperature	-25°C to +50°C
Storage Temperature	-35°C to +70°C
Sensors	G‑sensor, distance, ambient light, gyroscope
Camera	Rear 48MP PDAF + 8MP wide + 2MP macro; Front 8MP
Optional	Fingerprint scanner

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM630R.

📄

Datasheet

Complete specifications

Download PDF

📘

User Manual

Setup & operation guide

Download PDF

⚙️

SDK & API

Development kit

Download ZIP

📦

Firmware

Latest version

Download

📜

Certificate

Compliance & test reports

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM630R High‑Precision Handheld Android Device.

Ready to Get a Quote?

Contact our sales team today for pricing, technical support, or to request a demo of the XM630R. We're here to help you find the right GNSS solution for your project.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

No comment

Previous : XM1400U Rugged Portable Computer for Industrial Field Applications Next : XM980-K4 RTK GNSS Modules

Product Detail

XM630R High-Precision Handheld Android Device with Configurable GNSS | Starmax International

CONFIGURABLE GNSS · ANDROID · 5G

XM630R High-Precision Handheld Android Device with Configurable GNSS

Configurable positioning from standard single‑point to sub‑meter and centimeter‑level RTK, all in a rugged Android 10 handheld with 6.3‑inch FHD display, IP68 protection, and 5G connectivity.

Configurable GNSS Accuracy

GPS · BeiDou · GLONASS · Galileo

Android 10 Platform

IP68 Rugged Protection

6.3' FHD Display

5G & Dual‑SIM

<5mStandard Accuracy

<1mSub‑meter (D‑GNSS)

<10cmRTK Accuracy

IP68Industrial Grade

Request a Quote View Specifications

PRODUCT OVERVIEW

One Device. Three Accuracy Levels.

Flexible GNSS for Any Application

Configurable Accuracy: 5m / <1m / <10cm
GPS + BeiDou + GLONASS + Galileo
Android 10 with GMS
IP68 Waterproof & Dustproof
6.3' FHD Display (2340×1080)
5G NR & Dual‑SIM Support

3

Accuracy Levels

4

Constellations

IP68

Industrial Protection

5400mAh

Battery Capacity

🎚️

Configurable GNSS

Choose between standard, sub‑meter, or RTK accuracy to match your project needs and budget.

📱

Android 10 + GMS

Full Android experience with access to millions of apps, including professional surveying and GIS tools.

🛡

IP68 Rugged Design

Waterproof, dustproof, and shock‑resistant housing built to survive drops, rain, and extreme conditions.

📶

5G & Dual‑SIM

Ultra‑fast 5G connectivity and dual‑SIM support for seamless communication in the field.

CORE FEATURES

Six Powerful Features for Any Accuracy Need

XM630R offers the flexibility to choose your GNSS accuracy level, combined with industrial Android computing, rugged durability, and high‑speed connectivity – all in a single handheld device.

🎚️

Configurable GNSS

Three accuracy modes: standard (5m), sub‑meter (<1m), and centimeter‑level RTK (<10cm) – selectable via software.

Learn More →

🛰️

Multi‑Constellation GNSS

Supports GPS, BeiDou, GLONASS, and Galileo for robust satellite coverage and fast fix times.

Learn More →

📱

Android 10 with GMS

Full Android ecosystem with Google Play, enabling custom field apps, data collection, and cloud integration.

Learn More →

🛡️

IP68 Rugged Protection

Waterproof, dustproof, and drop‑proof to 1.2 meters – built to withstand the toughest field conditions.

Learn More →

📶

5G & Dual‑SIM

Next‑generation 5G connectivity and dual‑SIM support ensure reliable data transmission and communication anywhere.

Learn More →

🌍

Multiple Industry Applications

Ideal for surveying, GIS mapping, construction, utilities, agriculture, and infrastructure inspection.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM630R.

Key Components

GNSS Antenna Multi‑constellation
6.3' FHD Display Sunlight‑readable
NFC Module Contactless ID
48MP Camera Documentation
5400mAh Battery All‑day power
Type-C Port Fast charging

CONFIGURABLE GNSS

Choose Your Accuracy Level

XM630R offers three configurable GNSS accuracy modes to match your project requirements – from standard navigation to high‑precision RTK surveying.

GNSS
Config

Standard Mode – 5m CEP

Ideal for general navigation, asset tracking, and basic GIS tasks. Uses single‑point positioning with SBAS corrections.

Sub‑meter Mode – <1m CEP

Enabled via differential corrections (D‑GNSS) from SBAS, NTRIP, or base stations. Perfect for high‑accuracy GIS mapping.

RTK Mode – <10cm CEP

Centimeter‑level precision with RTK corrections via NTRIP or a local base station. Designed for professional surveying and construction.

Seamless Switching

Change accuracy modes on the fly via software – no hardware changes required. Adapt to any task with one device.

APPLICATIONS

Versatile Across Industries

XM630R adapts to a wide range of professional applications – from general asset tracking to high‑precision surveying – with configurable GNSS accuracy.

⛰️

Land Surveying

RTK mode for boundary surveys, topographic mapping, and cadastral measurements with centimeter precision.

🏗️

Construction

Grade control, stakeout, and site layout with sub‑meter or RTK accuracy depending on project phase.

🗺️

GIS Mapping

Sub‑meter accuracy for asset management, utility mapping, and environmental monitoring.

🌾

Agriculture

Precision farming with RTK for field boundary mapping and machine guidance.

🚰

Utilities & Infrastructure

Asset inspection, pipeline mapping, and infrastructure monitoring with reliable GNSS.

🚁

Emergency Response

Rapid damage assessment and search‑and‑rescue with fast positioning and rugged reliability.

SATELLITE CONSTELLATIONS

Global Satellite Coverage

XM630R supports all major global navigation satellite systems, ensuring robust positioning performance in any region.

🇺🇸

GPS

L1 C/A, L2C, L5

Global Positioning System

🇨🇳

BeiDou

B1I, B2I, B3I

Chinese satellite navigation

🇪🇺

Galileo

E1, E5a, E5b

European global system

🇷🇺

GLONASS

G1, G2

Russian global system

🇯🇵

QZSS

L1, L2, L5

Japanese augmentation

🌐

SBAS

WAAS, EGNOS, MSAS

Satellite‑based augmentation

SOFTWARE COMPATIBILITY

Works with Your Tools

XM630R runs Android 10 with GMS, giving you access to a vast ecosystem of surveying, mapping, and GIS applications.

🗺️

GIS Software

ArcGIS, QGIS, MapInfo

📐

Surveying Apps

Trimble Access, Leica Infinity, CHC LandStar

🏗️

CAD & Engineering

AutoCAD, Civil 3D, BricsCAD

📊

Data Management

Excel, CSV, Shapefile, DXF

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM630R High‑Precision Handheld Android Device. Click on each category to expand.

General+

OS	Android 10 (with GMS)
CPU	MTK6853 2.0GHz Octa‑core
RAM/ROM	8GB / 128GB or 256GB
Display	6.3' FHD IPS 2340×1080
Touchscreen	Capacitive, multi‑touch
Dimensions	167 × 80 × 15 mm
Weight	320g (including battery)

GNSS Performance+

Constellations	GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
Standard Accuracy	5 m CEP
Sub‑meter Accuracy	< 1 m CEP (with DGPS)
RTK Accuracy	< 10 cm CEP
Sensitivity	Better than -162 dBm
Time Accuracy	1PPS 20 ns
Speed Accuracy	0.1 m/s CEP

Communication+

5G NR	N1/3/41/77/78/79
4G LTE	FDD B1/B3/B7/B8/B20/B28; TDD B34/38/39/40/41
WCDMA	B1/B2/B5/B8
GSM	B2/B3/B5/B8
WiFi	2.4G/5G dual‑band 802.11 a/b/g/n/ac
Bluetooth	BT5.1
NFC	13.56 MHz, ISO14443A/B
SIM	Dual Nano SIM

Battery & Power+

Type	Lithium polymer, 5400mAh
Charging	Type‑C, 5V/3A

Physical & Environmental+

Protection	IP68 waterproof & dustproof
Drop Resistance	1.2 meters
Operating Temperature	-25°C to +50°C
Storage Temperature	-35°C to +70°C
Sensors	G‑sensor, distance, ambient light, gyroscope
Camera	Rear 48MP PDAF + 8MP wide + 2MP macro; Front 8MP
Optional	Fingerprint scanner

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM630R.

📄

Datasheet

Complete specifications

Download PDF

📘

User Manual

Setup & operation guide

Download PDF

⚙️

SDK & API

Development kit

Download ZIP

📦

Firmware

Latest version

Download

📜

Certificate

Compliance & test reports

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM630R High‑Precision Handheld Android Device.

Ready to Get a Quote?

Contact our sales team today for pricing, technical support, or to request a demo of the XM630R. We're here to help you find the right GNSS solution for your project.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd
