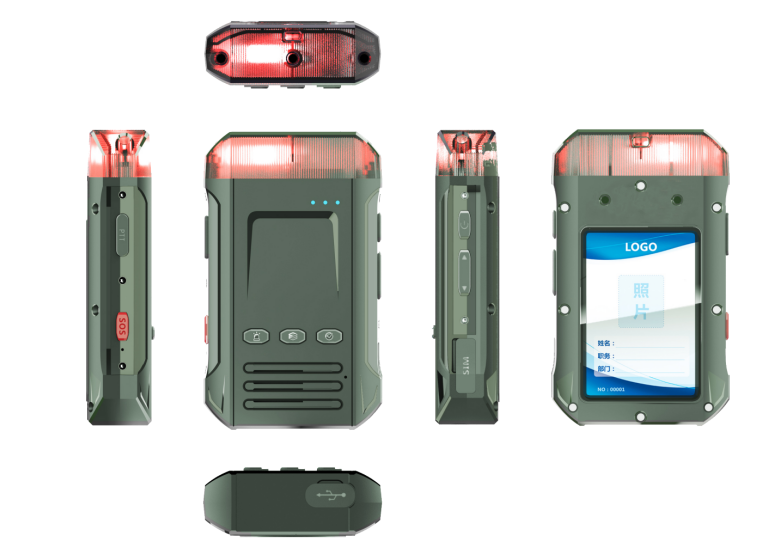

XM200A Beidou III Portable Positioning Terminal with NFC & SOS

XM200A Beidou III Portable Positioning Terminal with NFC & SOS

The XM200A is a durable, intelligent portable terminal designed for real-time personnel and asset tracking. It utilizes Beidou III and GPS for reliable positioning, includes optional NFC for identity management, and offers SOS emergency alert functionality. Built with reinforced plastic and IP67 protection, it ensures dependable performance in demanding outdoor and industrial environments.

حدد عدد المواصفات

يرجى التحقق من معلومات المنتج التي تريدها!

Product Detail

Features:

◇The reinforced plastic processing technology is adopted, so the product is resistant to falling and stable

◆Position tracking and intelligent upload of location information

◇BDS (B1C, B1I) / LBS fast and accurate positioning

◆Position tracking and intelligent upload of location information

◇National intercom, single call, group call, multi-group switching

Specifications:

4G CAT1 frequency band	FDD:Band1/3/5/8;TDD：Band34/38/39/40/41
Communication Protocol	UDP/TCP (customizable)
GNSS	BD/GPS dual-mode single frequency, support Beidou III B1I
BDS/GPS sensitivity	Better than -162dBm
Positioning accuracy	5-10 meters
Time accuracy	1PPS 20NS
Speed measurement accuracy	GNSS 0.1M/S CEP
Regaining sensitivity	-158Dbm
GPS	beidou,GPS, glonass
NFC	Support NFC card punching, personnel information
SPEAKER	1.5W waterproof large speaker
Warning light	Red and blue alternately; 1W LED*2
Indicator Lights	Red - charging, low battery, PPT status. Green - fully charged, GPS status, blue - communication network status, yellow - WIFI status, orange - BT status
Sensor	Gyroscope G-Sensor
size	1006020mm
Battery	3000mah\3.7v
Operating voltage Working current	3.8V 300mA
weight	80g
Beidou Antenna	Built-in ceramic antenna
button	Power, V+, V -,SOS
Optional module	Bluetooth WIFI Public network intercom, automatic recording function Step counting Silent alarm
proof rate	water proof IP67 Drapping proof 1.2 meter
Temperature	storate temperature -30 to 85 degree operation temperature -20 to 70 degree

Please contact us to obtain the detailed specifications for this product.
