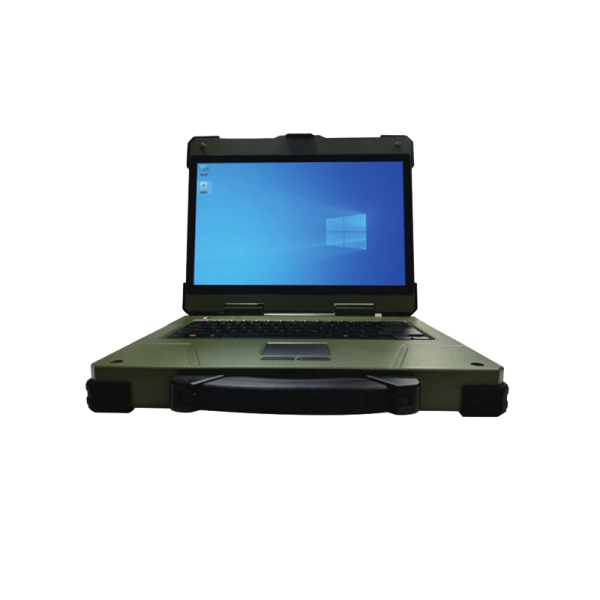

XM1400U Rugged Portable Computer
XM1400U Rugged Portable Computer

XM1400U Rugged Portable Computer

The XM1400U is a rugged, high-performance portable computer built for demanding outdoor and industrial use. It runs Windows 7 64-bit, supports multi-size displays up to 21.5 inches, and offers optional 4G connectivity and GPS. With IP65 rating, wide operating temperature range, and rich I/O ports, it ensures durability and versatility in field operations, logistics, and mobile computing scenarios.

XM1400U Rugged Portable Computer

Select the number of specifications

Please check the product information you want!

Product Detail

RUGGED PORTABLE COMPUTER

XM1400U Rugged Portable Computer for Industrial & Mission‑Critical Applications

Built for demanding environments, the XM1400U combines desktop‑class performance, IP65 rugged protection, multiple expansion interfaces, and long battery life for industrial automation, military, emergency response, mining, and field operations.

Intel i5 / i7 / i9
IP65 Protection
7000mAh Battery
Rich Industrial Interfaces
Intel CoreProcessor
IP65Protection
7000mAhBattery
Win/LinuxOS Support
Request Pricing        Download Datasheet
XM1400U Rugged Portable Computer

Why Choose XM1400U

Built for professionals who need reliability, performance, and flexibility in the field.

⚡

High Performance Computing

Intel Core i5/i7/i9 processors deliver stable computing power for industrial software and mission‑critical applications.

Intel i5i7i9
🛡️

Industrial Protection

IP65 waterproof, 1.2m drop resistance, rugged aluminum chassis — built for harsh environments.

IP651.2m DropAluminum
🔌

Multiple Expansion

USB, HDMI, RS232, Gigabit LAN, optional 4G, GPS — ready for industrial integration.

USB 3.0RS2324G
🌍

Built for Field Operations

Mining, military, power inspection, command vehicles, survey — deploy anywhere.

MilitaryMiningField
PRODUCT OVERVIEW

Industrial Mobile Workstation Built for Harsh Environments

The XM1400U is a high-performance rugged portable computer engineered for industrial computing, command systems, field operations and mission‑critical applications. Powered by Intel® Core processors and protected by an IP65‑rated enclosure, it delivers reliable performance in harsh environments while offering extensive industrial connectivity and long battery life.

Suitable for military, police, energy, mining, and emergency response operations.

14″Display
7000mAhBattery
IP65Protection
16GBDDR4
512GBSSD
IntelCore CPU
XM1400U overview

Performance Highlights

Key specifications at a glance — the XM1400U delivers where it matters.

14″Display
7000mAhBattery
IP65Protection
16GBDDR4
512GBSSD
Intel CoreCPU

CPU & Platform Options

Choose the processing platform that fits your deployment — Intel or domestic CPU options.

⚡

Intel Core i5

i5‑7200U

Dual‑core, 4 threads

Standard
⚡

Intel Core i7 / i9

Higher performance

Optional upgrade

Optional
🇨🇳

Phytium / Zhaoxin

Domestic CPU options

China‑made processors

Available

Industrial Rugged Design

Built to survive the toughest conditions — from the factory floor to the field.

💧

IP65

Waterproof & dustproof

📏

1.2m Drop

MIL‑STD‑810G tested

🧹

Dustproof

Sealed enclosure

💥

Shockproof

Reinforced chassis

🌡️

Wide Temperature

-20°C to +50°C

Industrial Interfaces

Hover over the ports to explore the XM1400U's industrial connectivity.

XM1400U ports and interfaces
USB 3.0 ×2 – High‑speed data
USB 2.0 ×2 – Peripheral
DB9 Serial – RS232
HDMI – External display
DC Aviation – 12V power
Audio – 3.5mm

Full I/O

  • 🔌 USB 3.0 ×2
  • 🔌 USB 2.0 ×2
  • ⚙️ DB9 Serial
  • 🖥️ HDMI
  • ✈️ DC Aviation
  • 🎧 Audio

Application Scenarios

Deployed across mission‑critical industries worldwide.

🎖️

Military Command

Tactical operations, command centers

Military

Command & control systems

🏭

Industrial Automation

MES, SCADA, control systems

Industrial

Automation & control

⛏️

Mining

Site operations, rugged data collection

Mining

Dust‑proof, drop‑resistant

🚄

Railway Inspection

Track monitoring, asset inspection

Railway

Track & infrastructure

🛢️

Oil & Gas

Exploration, pipeline monitoring

Oil & Gas

Harsh environment ops

🚑

Emergency Rescue

Disaster response, field coordination

Emergency

Rapid deployment

Technical Specifications

Complete technical data organized by category for easy reference.

General+
OSWindows 7 64‑bit (Windows 10/11 optional)
CPUIntel Core i5‑7200U (i7/i9/Phytium/Zhaoxin optional)
RAM16GB (max)
Storage512GB SSD
Battery7000mAh
Display+
Size14″ (15.6″/17.3″/21.5″ optional)
Resolution1920 × 1080
Brightness450 nits
Wireless+
WWAN4G LTE (optional, global bands)
GNSSGPS, BeiDou, GLONASS (optional)
WiFi802.11 b/g/n/ac, 2.4G/5G (optional)
Bluetooth4.2 (optional)
NFC13.56 MHz (optional)
Interfaces+
USB 3.0×2
USB 2.0×2
DB9 SerialRS232 ×1
HDMI×1
DC InputAviation connector, 12V
Audio3.5mm ×1
Battery+
Capacity7000mAh
Voltage7.6V
TypeLithium‑ion, removable
Mechanical+
Dimensions340 × 270 × 49.5 mm
Weight4.2 kg
MaterialRugged aluminum chassis
Environmental+
ProtectionIP65
Drop1.2 meters
Operating Temp.-20°C to +50°C
Storage Temp.-40°C to +60°C
CertificationsCE, FCC, RoHS
Accessories+
IncludedCharger, power cable
OptionalVehicle dock, desk dock, shoulder strap, protective case, carrying bag, aviation cable

Frequently Asked Questions

Quick answers to common questions about the XM1400U.

Ready to Build Your Industrial Computing Solution?

Contact our engineers for pricing, OEM customization, SDK support, and technical consultation. We're here to help you deploy the XM1400U in your operations.

✅ ISO9001
📋 CE / FCC / RoHS
🔧 OEM / ODM
🏭 Factory Direct
Request PricingDownload DatasheetOEM Services
✉ serenasSun@outlook.com📞 +86 186 7671 6687💬 WhatsApp: +852 6945 5984🌐 www.starmax.ltd

Get a Free Quote

Fill in your details and we'll respond within 24 hours.
