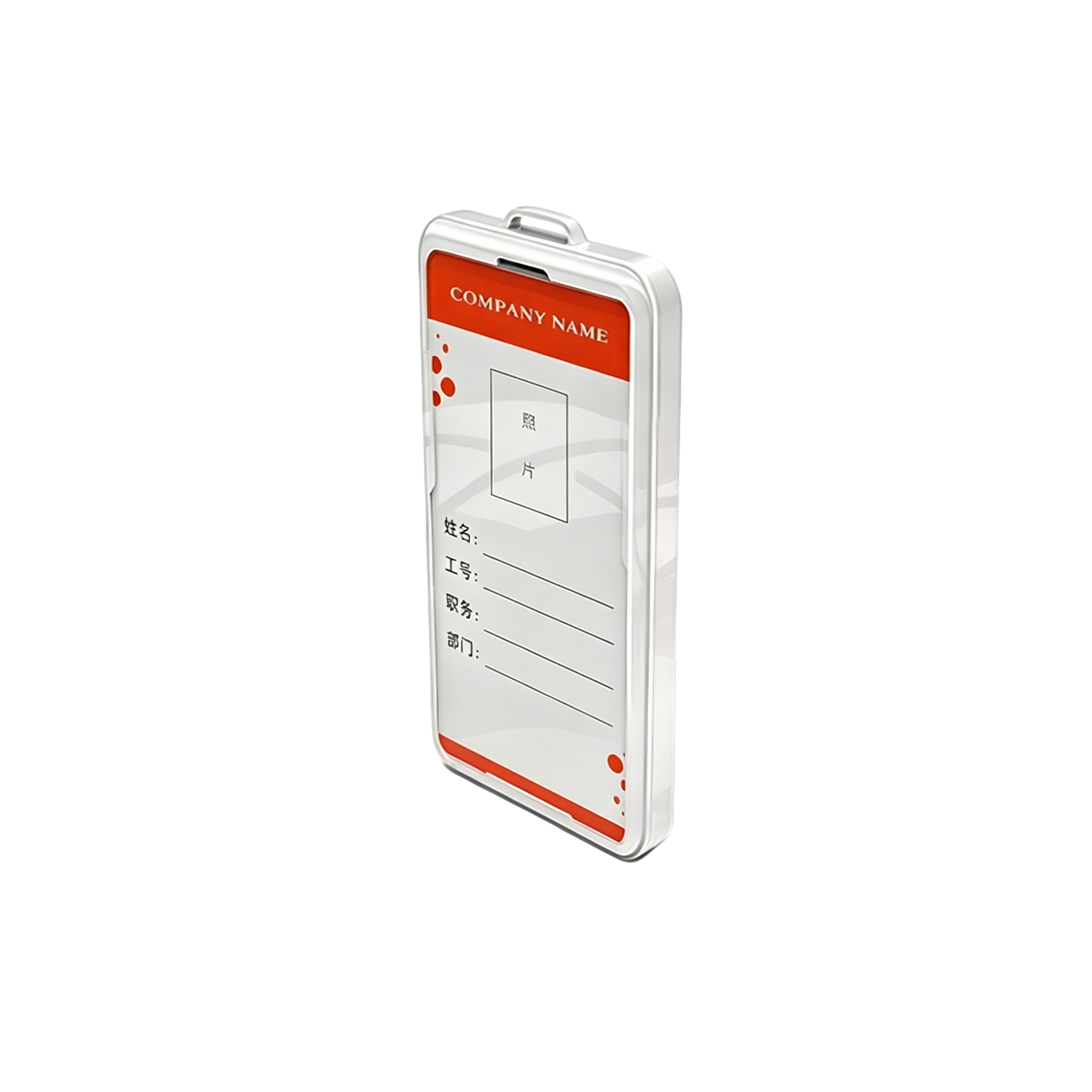

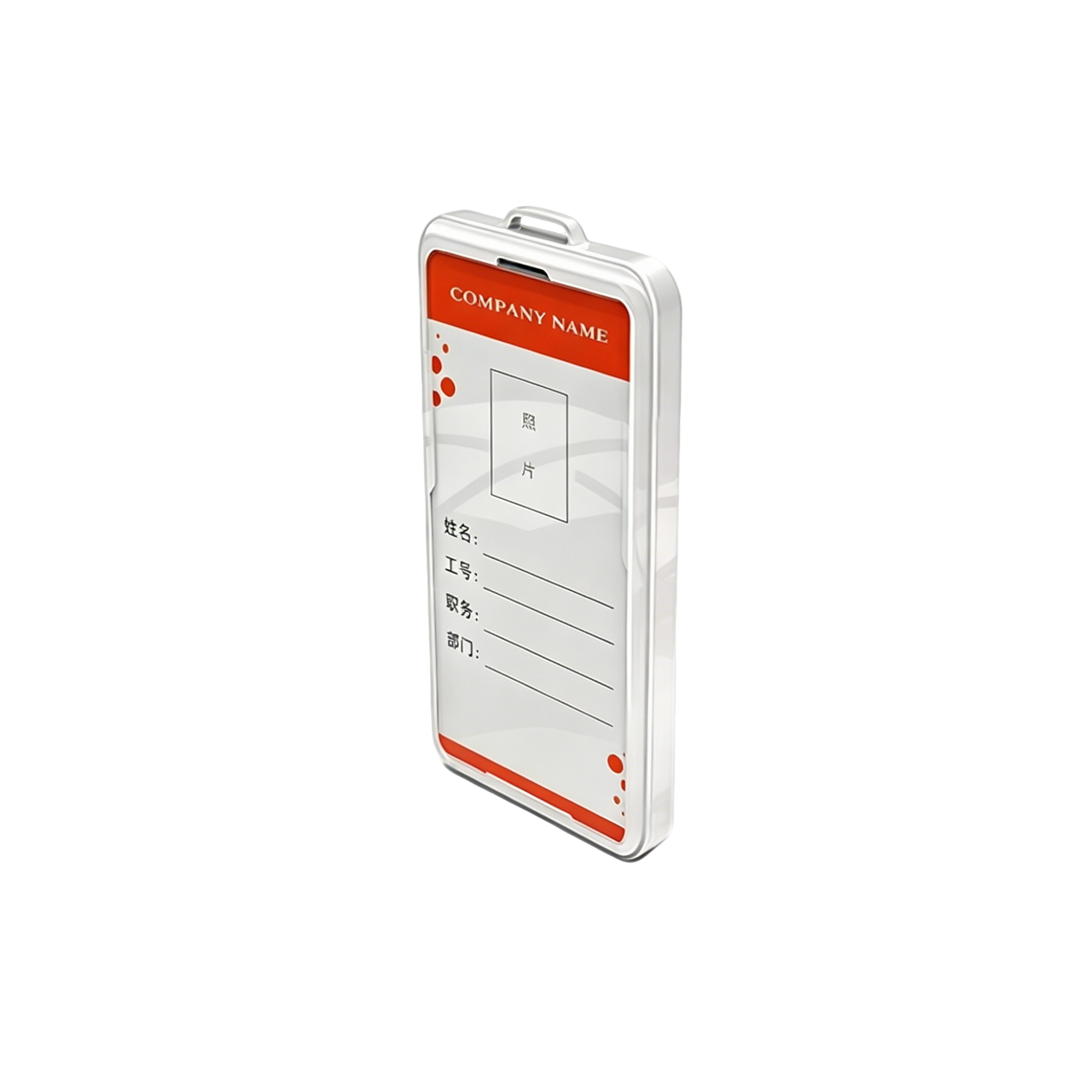

XM903 High-Precision Smart Badge with GPS & NFC

XM903 High-Precision Smart Badge with GPS & NFC

The XM903 High-Precision Smart Badge is a wearable safety and tracking device built for workforce management in demanding conditions. Featuring real-time GPS/Beidou positioning, NFC-enabled identification, IP67 durability, and an emergency SOS button, it supports reliable personnel monitoring, access control, and lone worker protection across industries such as construction, logistics, and field services.

Select the number of specifications

Please check the product information you want!

Product Detail

XM903 High-Precision Smart Badge with GPS & NFC | Starmax International

GPS · BEIDOU · NFC · LTE

XM903 High-Precision Smart Badge with GPS & NFC

Compact personnel positioning and identification badge with GPS, BeiDou, NFC, LTE communication, IP65 protection, and magnetic charging for workforce management, security patrol, and real-time personnel tracking.

GPS + BeiDou Positioning

NFC Identification

LTE Communication

IP65 Rugged Design

Magnetic Charging

Ultra‑lightweight (130g)

0Positioning Accuracy (m)

IP65Protection

NFCContactless ID

130gLightweight

Request a Quote View Specifications

PRODUCT OVERVIEW

Compact Badge for Personnel & Asset Tracking

The STARMAX XM903 is a high‑precision smart badge that combines GPS and BeiDou positioning, NFC identification, LTE communication, and IP65 durability in a lightweight, pocket‑sized form factor. Ideal for workforce management, security patrol, visitor tracking, and asset monitoring, the XM903 provides real‑time location and identity data with reliable wireless transmission.

GPS+ BeiDou

LTE4G Communication

NFCContactless ID

IP65Rugged

130gLightweight

All‑in‑One Personnel Badge

Powered by GPS and BeiDou dual‑mode positioning, the XM903 delivers accurate location tracking with an accuracy of<5m CEP. The built‑in NFC module enables contactless identification, access control, and data exchange, while LTE connectivity ensures real‑time transmission of location and status data to your backend systems.

With a rugged IP65 design, magnetic charging interface, and a compact 106×61×11mm form factor weighing just 130g, the XM903 is the perfect companion for security patrols, logistics, construction sites, and smart city applications.

GPS + BeiDou Dual‑Mode Positioning
NFC for Personnel Identification & Access
LTE-FDD/TDD Communication
IP65 Water & Dust Resistance
Magnetic Charging Interface
Ultra‑lightweight (130g) & Compact

📏

Compact

Pocket-sized, 106×61×11mm

🏷️

Wearable

Clip or badge holder

📡

Real‑time

LTE transmission

🔒

Secure

Encrypted data

🔋

Long Battery

2000mAh

🛡️

Reliable

IP65 rugged

<5m

Positioning Accuracy

IP65

Protection Rating

NFC

Contactless ID

2000mAh

Battery Capacity

📍

Precise Positioning

GPS and BeiDou dual‑mode positioning with accuracy better than 5 meters for reliable tracking.

🏷

NFC Identification

Contactless NFC for employee ID, access control, and asset tagging with instant data capture.

📶

LTE Connectivity

LTE-FDD and LTE-TDD support for real‑time data transmission to control centers and platforms.

🔋

Magnetic Charging

Easy, reliable magnetic charging interface and 2000mAh battery for long‑lasting operation.

CORE FEATURES

Six Powerful Features for Smart Workforce Management

XM903 integrates precise positioning, NFC identification, LTE communication, and rugged design into a compact badge, empowering organizations to track personnel, manage access, and improve operational efficiency.

📍

GPS + BeiDou Positioning

Dual‑mode GNSS provides accurate location data with<5m CEP, ensuring reliable tracking indoors and outdoors.

Learn More →

🏷

NFC Identification

Contactless NFC for personnel authentication, access control, and fast data exchange in the field.

Learn More →

📶

LTE Communication

Supports LTE-FDD and LTE-TDD bands for real‑time transmission of position, status, and alerts.

Learn More →

🛡️

IP65 Rugged Design

Dustproof and water‑resistant, built to withstand demanding outdoor and industrial environments.

Learn More →

🔋

Magnetic Charging

Convenient magnetic charging interface with 2000mAh battery for extended operation.

Learn More →

🌍

Multiple Applications

Ideal for security patrol, logistics, construction, utilities, smart cities, and visitor management.

Learn More →

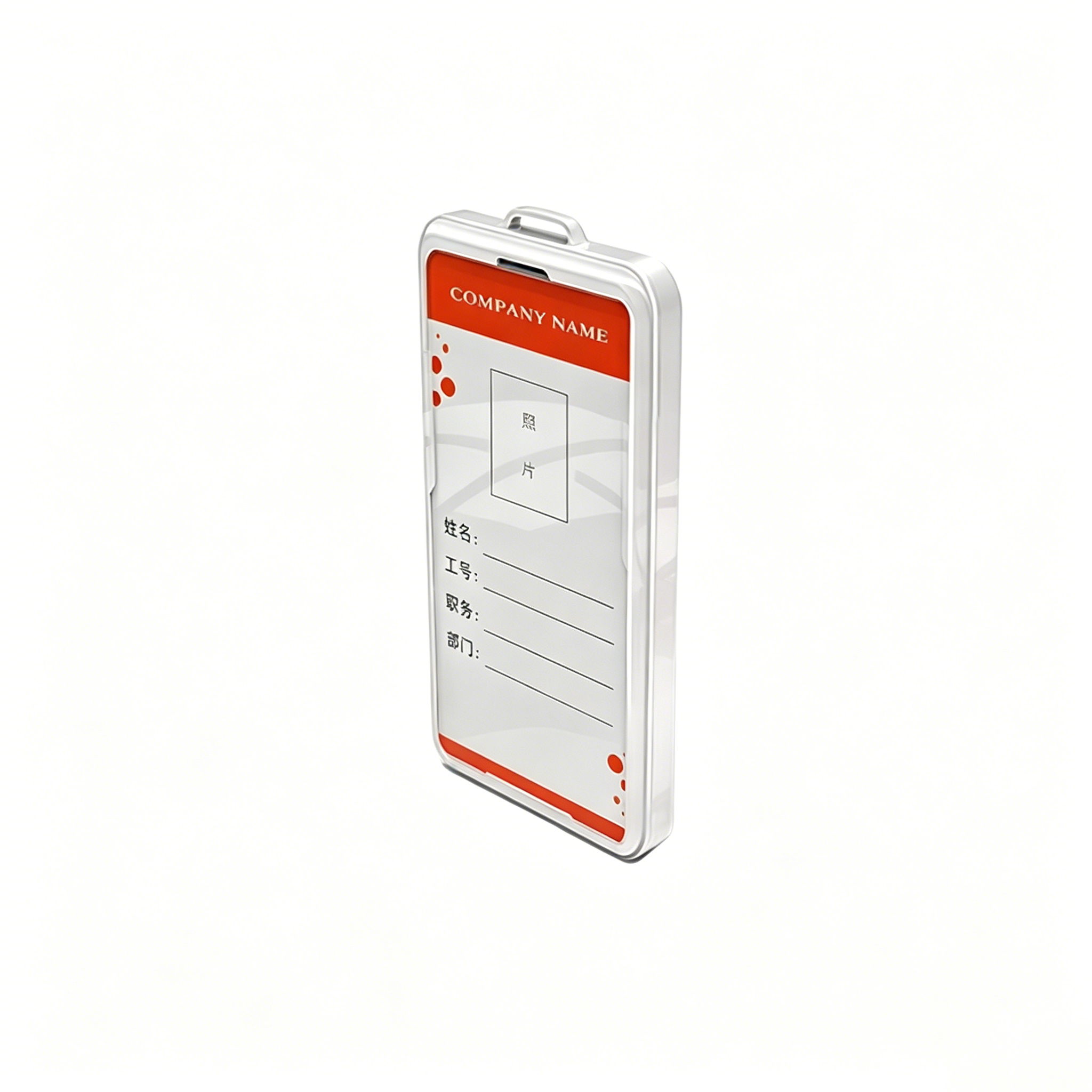

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM903.

Key Components

GNSS Antenna GPS + BeiDou
NFC Module Contactless ID
LTE Antenna 4G communication
Magnetic Charging Easy connect
2000mAh Battery Long runtime
SIM Card Slot LTE connectivity

POSITIONING & IDENTIFICATION

Smart Tracking with GPS + BeiDou & NFC

XM903 combines dual‑mode satellite positioning with contactless NFC to deliver both location and identity intelligence in a single badge.

🛰️ Satellite→GPS+BeiDou

↓

XM903→NFC

↓

📶 LTE→☁️ Cloud→🏢 Dispatch

Satellite Positioning

GPS and BeiDou signals provide accurate location data (<5m CEP) for real‑time personnel and asset tracking.

NFC Identification

Contactless NFC reads employee badges, access cards, or asset tags for instant identity verification.

Data Fusion

Position and identity data are combined and transmitted via LTE to your control center or cloud platform.

Real‑Time Management

Monitor personnel locations, access events, and status alerts through your existing dashboard or our API.

APPLICATIONS

Versatile Across Industries

XM903 is designed for organizations that need reliable personnel tracking, access control, and asset monitoring in diverse environments.

👮

Security Patrol

Track security guards in real‑time, verify check‑ins via NFC, and ensure rapid response to incidents.

Learn More

🚚

Logistics & Delivery

Monitor delivery personnel, confirm package handovers with NFC, and optimize route efficiency.

Learn More

🏗️

Construction & Mining

Track workers on site, manage access to restricted areas, and ensure safety compliance.

Learn More

⚡

Utilities & Infrastructure

Monitor field technicians, verify equipment inspections, and manage asset inventory.

Learn More

🏙️

Smart City & Public Safety

Enable citizen services, emergency response, and municipal worker tracking with a single badge.

Learn More

🏷️

Visitor & Contractor Management

Issue temporary badges with GPS and NFC for visitor tracking and access control.

Learn More

SATELLITE SYSTEMS

Global Satellite Coverage

XM903 supports GPS and BeiDou, with additional support for LBS and A‑GNSS for faster and more reliable positioning.

🇺🇸

GPS

L1 C/A

Signal: L1
Accuracy: ~5m

🇨🇳

BeiDou

B1I

Signal: B1
Accuracy: ~5m

📡

LBS

Cell ID / TDOA

Assisted location

🚀

A‑GNSS

Network assisted

Faster fix & improved

🇪🇺

Galileo

—

Optional support

🌐

SBAS

WAAS, EGNOS

Augmentation

SOFTWARE COMPATIBILITY

Works with Your Platforms

XM903 outputs standard NMEA0183 data and supports REST API, MQTT, TCP/IP, and integration with major IoT platforms.

📊

IoT Platforms

AWS IoT, Azure, ThingWorx

🗺️

GIS & Mapping

ArcGIS, QGIS, Google Maps

🔌

REST API / MQTT

Flexible data integration

🌐

Web Platform

Dashboard & management

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM903 High‑Precision Smart Badge. Click on each category to expand.

General+

Dimensions	106 × 61 × 11 mm
Weight	130g (including battery)
Protection	IP65 (dustproof, water‑resistant)
Charging	Magnetic charging interface
Battery	2000mAh lithium
Drop Resistance	1.2 meters

GNSS Performance+

Satellite Systems	GPS, BeiDou (BDS), LBS, A‑GNSS
Positioning Accuracy	< 5 m CEP (horizontal)
Speed Accuracy	≤ 0.2 m/s (RMS, 95%)
Time Accuracy	Better than 1s (1PPS)
Data Update Rate	1 Hz
Cold Start	≤ 35s
Hot Start	≤ 5s
Sensitivity	Capture: -140 dBm, Tracking: -155 dBm

Communication+

LTE	LTE-TDD: B34/38/39/40/41; LTE-FDD: B1/3/5/8
NFC	13.56 MHz, contactless
Data Format	NMEA0183, custom protocol, REST API, MQTT, TCP/IP
Interface	Magnetic (charging + data)
SIM	1x Micro SIM slot

Certifications+

CE	Compliant
FCC	Compliant
RoHS	Compliant
MIL-STD-810G	Optional

Environmental+

Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Humidity	95% non‑condensing
Salt Spray	35°C, pH 6.5~7.2, 24h

Accessories+

Included	Magnetic charging cable, belt clip, lanyard
Optional	Desktop charger, car charger, external antenna

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM903.

📄

Datasheet

v2.1

1.2 MB

Download PDF

📘

User Manual

v1.8

3.5 MB

Download PDF

⚙️

SDK & API

v3.0

8.2 MB

Download ZIP

📦

Firmware

v2.3.5

15 MB

Download

📜

Certificate

2026

0.6 MB

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM903 High‑Precision Smart Badge.

Ready to Get a Quote?

Contact our sales team today for pricing, technical support, or to request a demo of the XM903 Smart Badge. We're here to help you find the right tracking and identification solution for your organization.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

No comment

Previous : XM240TS IP68 4G Smart Push-to-Talk Terminal with Android & DMR Radio Next : XM550R Beidou Centimeter-Level Positioning Terminal

Product Detail

XM903 High-Precision Smart Badge with GPS & NFC | Starmax International

GPS · BEIDOU · NFC · LTE

XM903 High-Precision Smart Badge with GPS & NFC

GPS + BeiDou Positioning

NFC Identification

LTE Communication

IP65 Rugged Design

Magnetic Charging

Ultra‑lightweight (130g)

0Positioning Accuracy (m)

IP65Protection

NFCContactless ID

130gLightweight

Request a Quote View Specifications

PRODUCT OVERVIEW

Compact Badge for Personnel & Asset Tracking

GPS+ BeiDou

LTE4G Communication

NFCContactless ID

IP65Rugged

130gLightweight

All‑in‑One Personnel Badge

GPS + BeiDou Dual‑Mode Positioning
NFC for Personnel Identification & Access
LTE-FDD/TDD Communication
IP65 Water & Dust Resistance
Magnetic Charging Interface
Ultra‑lightweight (130g) & Compact

📏

Compact

Pocket-sized, 106×61×11mm

🏷️

Wearable

Clip or badge holder

📡

Real‑time

LTE transmission

🔒

Secure

Encrypted data

🔋

Long Battery

2000mAh

🛡️

Reliable

IP65 rugged

<5m

Positioning Accuracy

IP65

Protection Rating

NFC

Contactless ID

2000mAh

Battery Capacity

📍

Precise Positioning

GPS and BeiDou dual‑mode positioning with accuracy better than 5 meters for reliable tracking.

🏷

NFC Identification

Contactless NFC for employee ID, access control, and asset tagging with instant data capture.

📶

LTE Connectivity

LTE-FDD and LTE-TDD support for real‑time data transmission to control centers and platforms.

🔋

Magnetic Charging

Easy, reliable magnetic charging interface and 2000mAh battery for long‑lasting operation.

CORE FEATURES

Six Powerful Features for Smart Workforce Management

📍

GPS + BeiDou Positioning

Dual‑mode GNSS provides accurate location data with<5m CEP, ensuring reliable tracking indoors and outdoors.

Learn More →

🏷

NFC Identification

Contactless NFC for personnel authentication, access control, and fast data exchange in the field.

Learn More →

📶

LTE Communication

Supports LTE-FDD and LTE-TDD bands for real‑time transmission of position, status, and alerts.

Learn More →

🛡️

IP65 Rugged Design

Dustproof and water‑resistant, built to withstand demanding outdoor and industrial environments.

Learn More →

🔋

Magnetic Charging

Convenient magnetic charging interface with 2000mAh battery for extended operation.

Learn More →

🌍

Multiple Applications

Ideal for security patrol, logistics, construction, utilities, smart cities, and visitor management.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM903.

Key Components

GNSS Antenna GPS + BeiDou
NFC Module Contactless ID
LTE Antenna 4G communication
Magnetic Charging Easy connect
2000mAh Battery Long runtime
SIM Card Slot LTE connectivity

POSITIONING & IDENTIFICATION

Smart Tracking with GPS + BeiDou & NFC

XM903 combines dual‑mode satellite positioning with contactless NFC to deliver both location and identity intelligence in a single badge.

🛰️ Satellite→GPS+BeiDou

↓

XM903→NFC

↓

📶 LTE→☁️ Cloud→🏢 Dispatch

Satellite Positioning

GPS and BeiDou signals provide accurate location data (<5m CEP) for real‑time personnel and asset tracking.

NFC Identification

Contactless NFC reads employee badges, access cards, or asset tags for instant identity verification.

Data Fusion

Position and identity data are combined and transmitted via LTE to your control center or cloud platform.

Real‑Time Management

Monitor personnel locations, access events, and status alerts through your existing dashboard or our API.

APPLICATIONS

Versatile Across Industries

XM903 is designed for organizations that need reliable personnel tracking, access control, and asset monitoring in diverse environments.

👮

Security Patrol

Track security guards in real‑time, verify check‑ins via NFC, and ensure rapid response to incidents.

Learn More

🚚

Logistics & Delivery

Monitor delivery personnel, confirm package handovers with NFC, and optimize route efficiency.

Learn More

🏗️

Construction & Mining

Track workers on site, manage access to restricted areas, and ensure safety compliance.

Learn More

⚡

Utilities & Infrastructure

Monitor field technicians, verify equipment inspections, and manage asset inventory.

Learn More

🏙️

Smart City & Public Safety

Enable citizen services, emergency response, and municipal worker tracking with a single badge.

Learn More

🏷️

Visitor & Contractor Management

Issue temporary badges with GPS and NFC for visitor tracking and access control.

Learn More

SATELLITE SYSTEMS

Global Satellite Coverage

XM903 supports GPS and BeiDou, with additional support for LBS and A‑GNSS for faster and more reliable positioning.

🇺🇸

GPS

L1 C/A

Signal: L1
Accuracy: ~5m

🇨🇳

BeiDou

B1I

Signal: B1
Accuracy: ~5m

📡

LBS

Cell ID / TDOA

Assisted location

🚀

A‑GNSS

Network assisted

Faster fix & improved

🇪🇺

Galileo

—

Optional support

🌐

SBAS

WAAS, EGNOS

Augmentation

SOFTWARE COMPATIBILITY

Works with Your Platforms

XM903 outputs standard NMEA0183 data and supports REST API, MQTT, TCP/IP, and integration with major IoT platforms.

📊

IoT Platforms

AWS IoT, Azure, ThingWorx

🗺️

GIS & Mapping

ArcGIS, QGIS, Google Maps

🔌

REST API / MQTT

Flexible data integration

🌐

Web Platform

Dashboard & management

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM903 High‑Precision Smart Badge. Click on each category to expand.

General+

Dimensions	106 × 61 × 11 mm
Weight	130g (including battery)
Protection	IP65 (dustproof, water‑resistant)
Charging	Magnetic charging interface
Battery	2000mAh lithium
Drop Resistance	1.2 meters

GNSS Performance+

Satellite Systems	GPS, BeiDou (BDS), LBS, A‑GNSS
Positioning Accuracy	< 5 m CEP (horizontal)
Speed Accuracy	≤ 0.2 m/s (RMS, 95%)
Time Accuracy	Better than 1s (1PPS)
Data Update Rate	1 Hz
Cold Start	≤ 35s
Hot Start	≤ 5s
Sensitivity	Capture: -140 dBm, Tracking: -155 dBm

Communication+

LTE	LTE-TDD: B34/38/39/40/41; LTE-FDD: B1/3/5/8
NFC	13.56 MHz, contactless
Data Format	NMEA0183, custom protocol, REST API, MQTT, TCP/IP
Interface	Magnetic (charging + data)
SIM	1x Micro SIM slot

Certifications+

CE	Compliant
FCC	Compliant
RoHS	Compliant
MIL-STD-810G	Optional

Environmental+

Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Humidity	95% non‑condensing
Salt Spray	35°C, pH 6.5~7.2, 24h

Accessories+

Included	Magnetic charging cable, belt clip, lanyard
Optional	Desktop charger, car charger, external antenna

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM903.

📄

Datasheet

v2.1

1.2 MB

Download PDF

📘

User Manual

v1.8

3.5 MB

Download PDF

⚙️

SDK & API

v3.0

8.2 MB

Download ZIP

📦

Firmware

v2.3.5

15 MB

Download

📜

Certificate

2026

0.6 MB

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM903 High‑Precision Smart Badge.

Ready to Get a Quote?

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

Copy product links

Long by picture save/share

INQUIRY

enquiry form：

Message Success
Message to submit success, we will handle your message as soon as possible

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now
