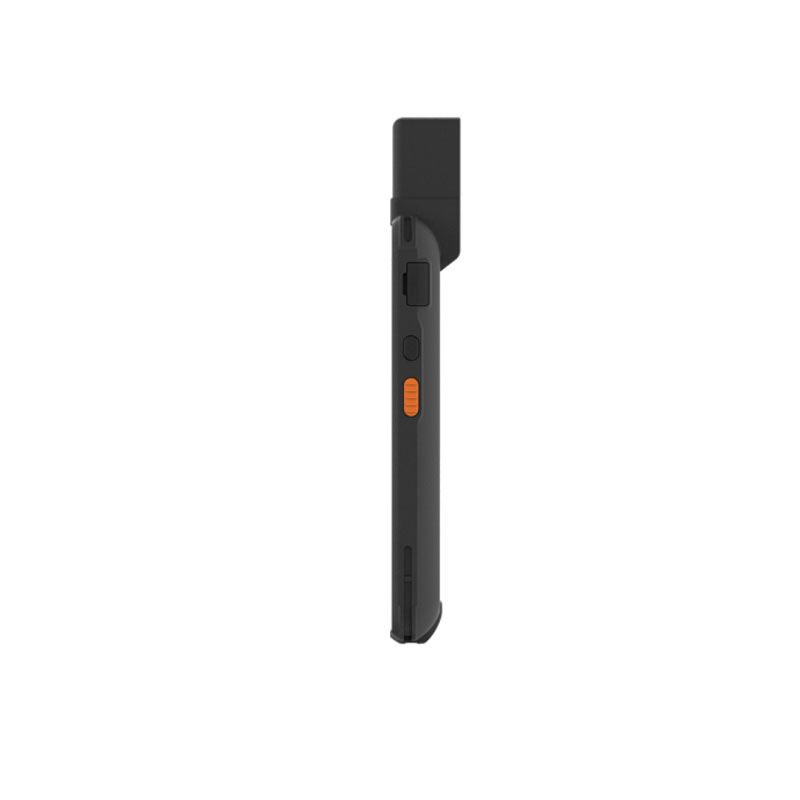

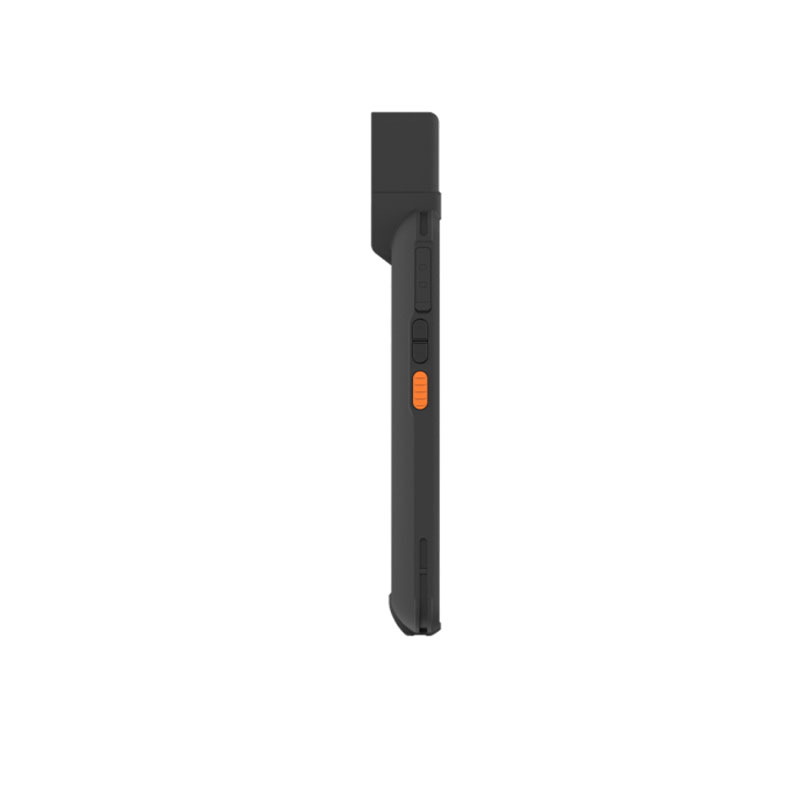

XM550R Beidou Centimeter-Level Positioning Terminal

XM550R Beidou Centimeter-Level Positioning Terminal

The XM550R is a rugged, high-precision positioning terminal that delivers centimeter-level accuracy using Beidou and GPS dual-mode technology. Built with IP68 protection, 4G connectivity, and long-lasting battery life, it provides reliable, real-time location data for surveying, mapping, machinery guidance, and outdoor asset management in challenging conditions.

Select the number of specifications

Please check the product information you want!

Product Detail

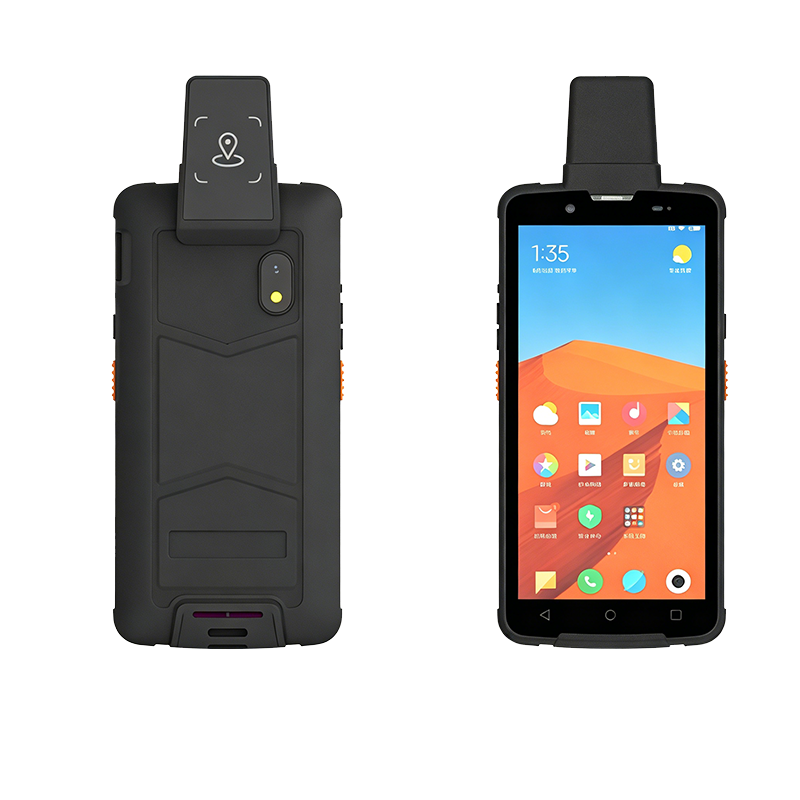

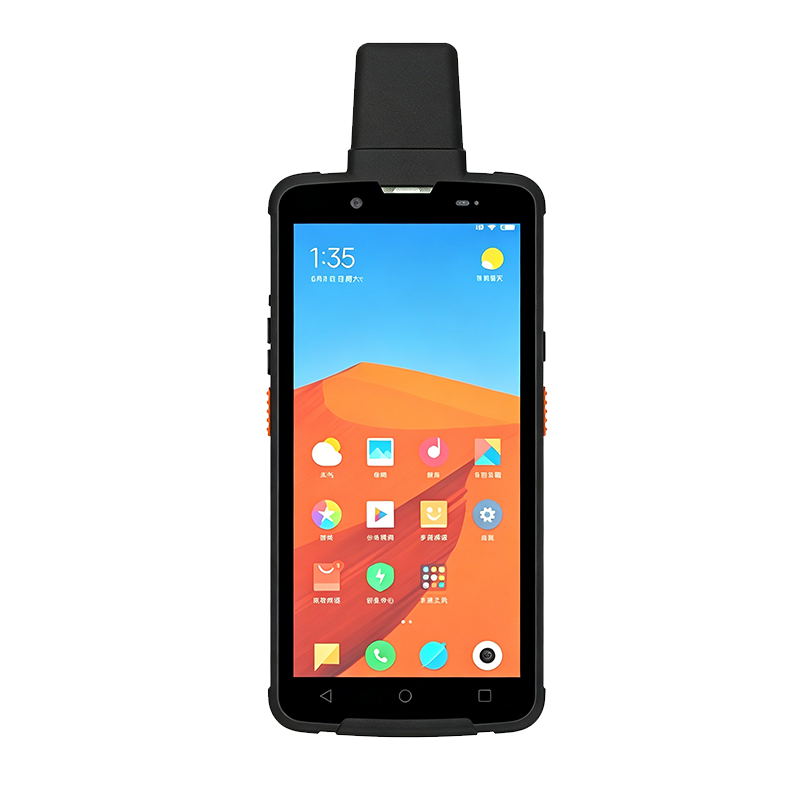

XM550R High-Precision GNSS RTK Handheld Surveying Device | Starmax International

HIGH-PRECISION GNSS RTK

XM550R High-Precision GNSS RTK Handheld Surveying Device

Engineered for professionals who demand centimeter-level RTK accuracy, multi-constellation GNSS support, and rugged reliability in the field. Ideal for surveying, construction, GIS, agriculture, mining, and infrastructure inspection.

Centimeter RTK Accuracy

GPS · BeiDou · Galileo · GLONASS

Android 11 Platform

IP67 Rugged Protection

5.5' HD Display

All‑Day Battery

8mm+1ppmRTK Horizontal

IP67Industrial Grade

6Constellations

4700mAhBattery

Request a Quote View Specifications

PRODUCT OVERVIEW

Built for Precision. Engineered for Reliability.

The STARMAX XM550R High-Precision GNSS RTK Handheld Surveying Device combines advanced multi-constellation satellite positioning, industrial-grade durability, and intelligent Android computing into a compact 5.5‑inch field solution. Designed for surveying, construction, GIS mapping, agriculture, mining, and infrastructure management, XM550R delivers dependable centimeter‑level positioning performance wherever precision matters.

Professional GNSS Surveying Solution

Powered by next‑generation RTK technology, XM550R supports GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS for superior positioning stability even in complex environments. Its 5.5‑inch HD display, long‑life battery, and high‑performance GNSS engine enable survey professionals to work efficiently under harsh outdoor conditions.

With IP67 protection, Android 11, and optional 2D barcode scanning, XM550R is the versatile tool for modern field data collection and mapping.

Centimeter‑Level RTK Positioning Accuracy
Full‑Constellation Multi‑Frequency GNSS Tracking
Industrial Android 11 Operating System
IP67 Waterproof & Dustproof Protection
5.5' HD Sunlight‑Readable Display
4700mAh Battery for Full‑Day Operation

8mm+1ppm

RTK Horizontal Accuracy

6

Satellite Constellations

IP67

Industrial Protection

4700mAh

Battery Capacity

📡

High‑Precision Positioning

Professional RTK engine provides centimeter‑level positioning accuracy for surveying, GIS, and engineering projects.

🌍

Multi‑Constellation GNSS

Supports GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS to maximize signal availability and reliability.

🛡

Industrial Rugged Design

IP67 protection and reinforced housing withstand rain, dust, vibration, and harsh field environments.

⚡

All‑Day Productivity

Android 11, large battery, and optional barcode scanner maximize efficiency during long working hours.

CORE FEATURES

Six Powerful Features for Professional Surveying

XM550R integrates advanced RTK positioning, multi‑constellation GNSS, Android intelligence, and rugged durability into one compact handheld. Built for professionals working in demanding environments, it delivers reliable centimeter‑level positioning and seamless field productivity.

📡

Centimeter RTK Accuracy

Professional RTK engine provides stable centimeter‑level positioning with rapid initialization for surveying, GIS, engineering, and precision measurement.

Learn More →

🛰️

Full GNSS Support

Tracks GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS simultaneously to maximize satellite visibility and positioning reliability.

Learn More →

🛡️

Industrial IP67 Protection

Designed for harsh outdoor environments with waterproof, dustproof, and shock‑resistant construction that meets demanding field applications.

Learn More →

⚡

Long Battery Life

4700mAh battery supports full‑day surveying operations; optional 6500mAh for extended use in remote areas.

Learn More →

📱

Android 11 Platform

Powered by Android 11 with a 5.5‑inch HD touchscreen, customizable applications, wireless connectivity, and efficient field data collection.

Learn More →

🌍

Multiple Industry Applications

Ideal for land surveying, construction, GIS mapping, mining, utilities, agriculture, and infrastructure inspection.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM550R.

Key Components

GNSS Antenna Multi‑frequency
5.5' HD Display Sunlight‑readable
NFC Module Contactless ID
2D Barcode Scanner Optional
4700mAh Battery Long‑lasting
Type-C Port Fast charging

RTK TECHNOLOGY

Centimeter‑Level RTK Positioning

The XM550R leverages advanced Real‑Time Kinematic (RTK) technology to deliver centimeter‑level positioning accuracy, enabling precise surveying, mapping, and construction applications with rapid initialization and high reliability.

RTK

Multi‑Constellation Signal Tracking

XM550R simultaneously tracks GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS satellites, ensuring maximum satellite visibility and robust signal reception even in challenging environments.

Real‑Time Correction Processing

Onboard RTK engine processes correction data from base stations or network services (NTRIP) to compute precise positioning with centimeter‑level accuracy.

Fast & Reliable Initialization

Advanced algorithms ensure rapid RTK fix initialization with high reliability, minimizing downtime and maximizing productivity in the field.

Centimeter Output

Delivers horizontal accuracy of 8 mm + 1 ppm and vertical accuracy of 15 mm + 1 ppm in RTK fixed mode, meeting the most demanding surveying requirements.

APPLICATIONS

Versatile Across Industries

XM550R is engineered to perform in a wide range of professional applications, from land surveying and construction to agriculture and emergency response. Its rugged design and high‑precision GNSS make it the ideal tool for field professionals.

⛰️

Land Surveying & Mapping

Precise boundary surveys, topographic mapping, and cadastral measurements with centimeter‑level RTK accuracy.

🏗️

Construction & Engineering

Grade control, stakeout, site layout, and as‑built verification for infrastructure and building projects.

⛏️

Mining & Quarrying

Volume calculation, blast pattern design, and pit mapping in demanding and dusty environments.

🌾

Agriculture & Precision Farming

Field boundary mapping, crop health monitoring, and precision guidance for farm equipment.

🚰

Utilities & Infrastructure

Asset mapping, pipeline and utility inspection, and infrastructure monitoring with high‑accuracy positioning.

🚁

Emergency & Disaster Response

Rapid damage assessment, search and rescue, and incident mapping with reliable GNSS positioning.

SATELLITE CONSTELLATIONS

Global Satellite Coverage

XM550R supports all major global navigation satellite systems, providing robust positioning performance in any region and environment.

🇺🇸

GPS

L1 C/A, L2C, L2P(Y), L5

Global Positioning System – full support

🇨🇳

BeiDou

B1I, B2I, B3I, B1C, B2a, B2b

Chinese satellite navigation system

🇪🇺

Galileo

E1, E5a, E5b, E6

European global navigation system

🇷🇺

GLONASS

G1, G2, G3

Russian global navigation system

🇯🇵

QZSS

L1, L2, L5, L6

Japanese regional augmentation system

🌐

SBAS

WAAS, EGNOS, MSAS, GAGAN, SDCM

Satellite‑based augmentation systems

SOFTWARE COMPATIBILITY

Works with Your Tools

XM550R is compatible with a wide range of professional surveying, mapping, and GIS software, ensuring seamless integration into your existing workflow.

🗺️

GIS Software

ArcGIS, QGIS, MapInfo

📐

Surveying Software

Trimble Access, Leica Infinity, CHC LandStar

🏗️

CAD & Engineering

AutoCAD, Civil 3D, BricsCAD

📊

Data Management

Excel, CSV, Shapefile, DXF

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM550R High‑Precision GNSS RTK Handheld Surveying Device. Click on each category to expand.

General+

OS	Android 11
CPU	8 cores 2.0GHz
RAM/ROM	3GB/4GB RAM, 32GB/64GB ROM
Display	5.5' IPS 720×1400
Touchscreen	5‑point capacitive, glove support
Dimensions	155.15 × 74.5 × 16.8 mm
Weight	~245g (including battery)

GNSS Performance+

Satellite Systems	GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
Positioning Accuracy (RTK)	Horizontal 8 mm + 1 ppm; Vertical 15 mm + 1 ppm
Positioning Accuracy (Single Point)	2.5 m CEP
D‑GNSS Accuracy	< 1.0 m CEP
Time Accuracy	1PPS 20 ns
Speed Accuracy	0.1 m/s CEP

Communication+

4G LTE	FDD B1/B3/B5/B7/B8; TDD B38/B39/B40/B41
WCDMA	B1/B2/B5/B8
GSM	B2/B3/B5/B8
CDMA/EVDO	BC0/BC1
WiFi	2.4G/5G dual‑band, 802.11 a/b/g/n/ac
Bluetooth	BT5.0 (BLE)
NFC	ISO14443A/B, ISO15693, 0‑5cm

Battery & Power+

Type	Lithium polymer, 4700mAh (6500mAh optional)
Charging	Type‑C, fast charging

Physical & Environmental+

Protection	IP67 waterproof & dustproof
Drop Resistance	1.5 meters
Operating Temperature	-20°C to +55°C
Storage Temperature	-30°C to +70°C
Sensors	Geomagnetism, acceleration, light, distance
Optional Modules	2D barcode scanner, fingerprint

DOWNLOAD CENTER

Resources & Downloads

Access product manuals, SDKs, firmware updates, and other essential resources for the XM550R.

📄

Datasheet

Complete specifications

Download PDF

📘

User Manual

Setup & operation guide

Download PDF

⚙️

SDK & API

Development kit

Download ZIP

📦

Firmware

Latest version

Download

📜

Certificate

Compliance & test reports

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM550R High‑Precision GNSS RTK Handheld Surveying Device.

Ready to Get a Quote?

Contact our sales team today for pricing, technical support, or to request a demo of the XM550R High‑Precision GNSS RTK Handheld Surveying Device. We're here to help you find the right solution for your project.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

No comment

Previous : XM903 High-Precision Smart Badge with GPS & NFC Next : XM200R High-Precision RTK Portable Positioning Terminal

Product Detail

XM550R High-Precision GNSS RTK Handheld Surveying Device | Starmax International

HIGH-PRECISION GNSS RTK

XM550R High-Precision GNSS RTK Handheld Surveying Device

Centimeter RTK Accuracy

GPS · BeiDou · Galileo · GLONASS

Android 11 Platform

IP67 Rugged Protection

5.5' HD Display

All‑Day Battery

8mm+1ppmRTK Horizontal

IP67Industrial Grade

6Constellations

4700mAhBattery

Request a Quote View Specifications

PRODUCT OVERVIEW

Built for Precision. Engineered for Reliability.

Professional GNSS Surveying Solution

With IP67 protection, Android 11, and optional 2D barcode scanning, XM550R is the versatile tool for modern field data collection and mapping.

Centimeter‑Level RTK Positioning Accuracy
Full‑Constellation Multi‑Frequency GNSS Tracking
Industrial Android 11 Operating System
IP67 Waterproof & Dustproof Protection
5.5' HD Sunlight‑Readable Display
4700mAh Battery for Full‑Day Operation

8mm+1ppm

RTK Horizontal Accuracy

6

Satellite Constellations

IP67

Industrial Protection

4700mAh

Battery Capacity

📡

High‑Precision Positioning

Professional RTK engine provides centimeter‑level positioning accuracy for surveying, GIS, and engineering projects.

🌍

Multi‑Constellation GNSS

Supports GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS to maximize signal availability and reliability.

🛡

Industrial Rugged Design

IP67 protection and reinforced housing withstand rain, dust, vibration, and harsh field environments.

⚡

All‑Day Productivity

Android 11, large battery, and optional barcode scanner maximize efficiency during long working hours.

CORE FEATURES

Six Powerful Features for Professional Surveying

📡

Centimeter RTK Accuracy

Professional RTK engine provides stable centimeter‑level positioning with rapid initialization for surveying, GIS, engineering, and precision measurement.

Learn More →

🛰️

Full GNSS Support

Tracks GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS simultaneously to maximize satellite visibility and positioning reliability.

Learn More →

🛡️

Industrial IP67 Protection

Designed for harsh outdoor environments with waterproof, dustproof, and shock‑resistant construction that meets demanding field applications.

Learn More →

⚡

Long Battery Life

4700mAh battery supports full‑day surveying operations; optional 6500mAh for extended use in remote areas.

Learn More →

📱

Android 11 Platform

Powered by Android 11 with a 5.5‑inch HD touchscreen, customizable applications, wireless connectivity, and efficient field data collection.

Learn More →

🌍

Multiple Industry Applications

Ideal for land surveying, construction, GIS mapping, mining, utilities, agriculture, and infrastructure inspection.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM550R.

Key Components

GNSS Antenna Multi‑frequency
5.5' HD Display Sunlight‑readable
NFC Module Contactless ID
2D Barcode Scanner Optional
4700mAh Battery Long‑lasting
Type-C Port Fast charging

RTK TECHNOLOGY

Centimeter‑Level RTK Positioning

RTK

Multi‑Constellation Signal Tracking

XM550R simultaneously tracks GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS satellites, ensuring maximum satellite visibility and robust signal reception even in challenging environments.

Real‑Time Correction Processing

Onboard RTK engine processes correction data from base stations or network services (NTRIP) to compute precise positioning with centimeter‑level accuracy.

Fast & Reliable Initialization

Advanced algorithms ensure rapid RTK fix initialization with high reliability, minimizing downtime and maximizing productivity in the field.

Centimeter Output

Delivers horizontal accuracy of 8 mm + 1 ppm and vertical accuracy of 15 mm + 1 ppm in RTK fixed mode, meeting the most demanding surveying requirements.

APPLICATIONS

Versatile Across Industries

⛰️

Land Surveying & Mapping

Precise boundary surveys, topographic mapping, and cadastral measurements with centimeter‑level RTK accuracy.

🏗️

Construction & Engineering

Grade control, stakeout, site layout, and as‑built verification for infrastructure and building projects.

⛏️

Mining & Quarrying

Volume calculation, blast pattern design, and pit mapping in demanding and dusty environments.

🌾

Agriculture & Precision Farming

Field boundary mapping, crop health monitoring, and precision guidance for farm equipment.

🚰

Utilities & Infrastructure

Asset mapping, pipeline and utility inspection, and infrastructure monitoring with high‑accuracy positioning.

🚁

Emergency & Disaster Response

Rapid damage assessment, search and rescue, and incident mapping with reliable GNSS positioning.

SATELLITE CONSTELLATIONS

Global Satellite Coverage

XM550R supports all major global navigation satellite systems, providing robust positioning performance in any region and environment.

🇺🇸

GPS

L1 C/A, L2C, L2P(Y), L5

Global Positioning System – full support

🇨🇳

BeiDou

B1I, B2I, B3I, B1C, B2a, B2b

Chinese satellite navigation system

🇪🇺

Galileo

E1, E5a, E5b, E6

European global navigation system

🇷🇺

GLONASS

G1, G2, G3

Russian global navigation system

🇯🇵

QZSS

L1, L2, L5, L6

Japanese regional augmentation system

🌐

SBAS

WAAS, EGNOS, MSAS, GAGAN, SDCM

Satellite‑based augmentation systems

SOFTWARE COMPATIBILITY

Works with Your Tools

XM550R is compatible with a wide range of professional surveying, mapping, and GIS software, ensuring seamless integration into your existing workflow.

🗺️

GIS Software

ArcGIS, QGIS, MapInfo

📐

Surveying Software

Trimble Access, Leica Infinity, CHC LandStar

🏗️

CAD & Engineering

AutoCAD, Civil 3D, BricsCAD

📊

Data Management

Excel, CSV, Shapefile, DXF

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM550R High‑Precision GNSS RTK Handheld Surveying Device. Click on each category to expand.

General+

OS	Android 11
CPU	8 cores 2.0GHz
RAM/ROM	3GB/4GB RAM, 32GB/64GB ROM
Display	5.5' IPS 720×1400
Touchscreen	5‑point capacitive, glove support
Dimensions	155.15 × 74.5 × 16.8 mm
Weight	~245g (including battery)

GNSS Performance+

Satellite Systems	GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
Positioning Accuracy (RTK)	Horizontal 8 mm + 1 ppm; Vertical 15 mm + 1 ppm
Positioning Accuracy (Single Point)	2.5 m CEP
D‑GNSS Accuracy	< 1.0 m CEP
Time Accuracy	1PPS 20 ns
Speed Accuracy	0.1 m/s CEP

Communication+

4G LTE	FDD B1/B3/B5/B7/B8; TDD B38/B39/B40/B41
WCDMA	B1/B2/B5/B8
GSM	B2/B3/B5/B8
CDMA/EVDO	BC0/BC1
WiFi	2.4G/5G dual‑band, 802.11 a/b/g/n/ac
Bluetooth	BT5.0 (BLE)
NFC	ISO14443A/B, ISO15693, 0‑5cm

Battery & Power+

Type	Lithium polymer, 4700mAh (6500mAh optional)
Charging	Type‑C, fast charging

Physical & Environmental+

Protection	IP67 waterproof & dustproof
Drop Resistance	1.5 meters
Operating Temperature	-20°C to +55°C
Storage Temperature	-30°C to +70°C
Sensors	Geomagnetism, acceleration, light, distance
Optional Modules	2D barcode scanner, fingerprint

DOWNLOAD CENTER
