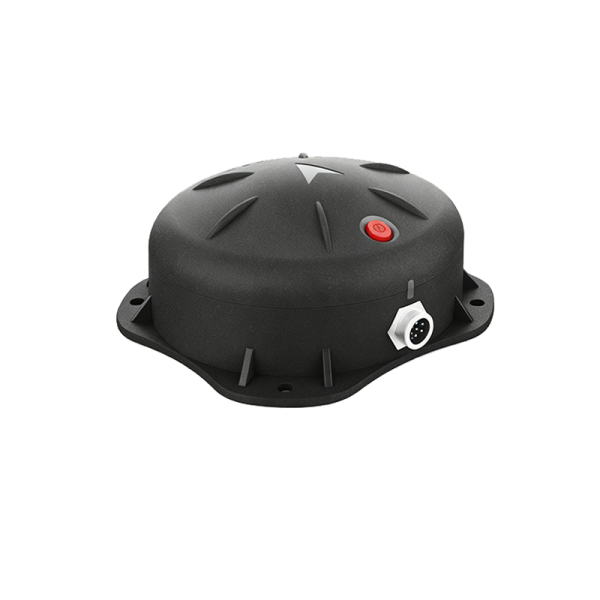

XMCZ20D Vehicle Tracking Terminal with 4G & RTK GNSS

XMCZ20D Vehicle Tracking Terminal with 4G & RTK GNSS

The XMCZ20D is a professional-grade vehicle tracking device designed for reliable, high-accuracy positioning in demanding conditions. It combines a dual-mode RTK GNSS module with 4G Cat1 communication, IP67 protection, and a magnetic mounting design for easy installation. Suitable for fleet operators and logistics companies needing real-time, submeter-level tracking with robust connectivity and durability.

Select the number of specifications

Please check the product information you want!

Product Detail

XMCZ20D 4G Vehicle Tracking Terminal with RTK GNSS | Starmax Fleet Management

RTK GNSS · 4G · VEHICLE TRACKING

XMCZ20D 4G Vehicle Tracking Terminal with RTK GNSS

Rugged fleet management terminal with RTK centimeter positioning, 4G CAT1, 9‑40V wide input, 5000mAh backup, and MQTT/TCP — built for logistics, mining, construction, and commercial telematics.

Fleet ManagementLogisticsMining VehiclesConstruction EquipmentPublic TransportationCold Chain Monitoring

RTK Positioning (<0.6m CEP)

GPS + BeiDou Dual‑Mode

4G CAT1 Communication

9‑40V Wide Voltage Input

5000mAh Backup Battery

MQTT / TCP Protocols

0RTK Accuracy (m)

9‑40VWide Voltage

5000Battery (mAh)

4GCAT1

Request a Quote View Specifications

PRODUCT OVERVIEW

Precision Vehicle Tracking for Fleet Management

The STARMAX XMCZ20D is a rugged 4G vehicle tracking terminal with RTK GNSS, wide voltage input, and backup battery, designed for fleet management, logistics, construction, and mining. It delivers centimeter‑level positioning and reliable data transmission to optimize fleet operations and asset utilization.

📡RTK<0.6m CEP

📶4GCAT1

🔋5000mAh

⚡9‑40VInput

🌐MQTTTCP

RTK Precision for Fleet Optimization

Powered by GPS and BeiDou single‑frequency dual‑mode RTK, the XMCZ20D achieves <0.6m CEP accuracy in RTK FIX mode — ideal for fleet dispatching, route optimization, and asset tracking. The built‑in 48×48×5mm active antenna ensures strong signal reception even in urban canyons.

With 4G CAT1, TCP/MQTT, and a wide 9‑40V input range, the XMCZ20D integrates seamlessly with 12V/24V vehicles and connects to your fleet management platform, providing real‑time location, speed, and status data.

RTK Positioning <0.6m CEP
GPS + BeiDou Dual‑Mode GNSS
4G CAT1 with TCP/MQTT
9‑40V Wide Voltage Input
5000mAh Backup Battery
50‑Channel GNSS Engine

📏

RTK Tracking

Centimeter precision

🚚

Fleet Dispatch

Real‑time location

📡

Remote Monitoring

4G connectivity

⚡

Wide Voltage

9‑40V compatibility

☁️

Cloud Platform

MQTT/TCP

🛡️

Industrial Reliability

Vehicle‑grade

<0.6m

RTK Accuracy

50

GNSS Channels

4G

CAT1

5000mAh

Battery

📡

RTK Precision

Centimeter‑level accuracy for fleet tracking.

📶

4G Connectivity

Reliable LTE with TCP/MQTT support.

⚡

Wide Voltage

9‑40V compatible with 12/24V systems.

🔋

Backup Battery

5000mAh for extended operation.

CORE FEATURES

Six Powerful Features for Fleet Intelligence

XMCZ20D delivers RTK positioning, 4G connectivity, wide voltage input, and platform integration — everything you need for modern fleet management and vehicle telematics.

📡

RTK Fleet Positioning

Centimeter‑level RTK accuracy (<0.6m CEP) for precise vehicle tracking and dispatch optimization.

Learn More →

📶

4G CAT1 Communication

LTE CAT1 with TCP/MQTT support for real‑time data transmission to your fleet platform.

Learn More →

⚡

Wide Voltage Input

9‑40V DC input compatible with 12V and 24V vehicle electrical systems.

Learn More →

🔋

Backup Battery

5000mAh built‑in lithium battery for continuous operation during engine off.

Learn More →

☁️

MQTT/TCP Platform

Flexible protocol support for integration with Wialon, GPSGate, AWS IoT, and custom solutions.

Learn More →

🚛

Fleet Management Ready

Ideal for logistics, mining, construction, public transport, and cold chain monitoring.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot to learn about the key components of the XMCZ20D vehicle tracking terminal.

Key Components

GNSS Antenna 48×48mm active
4G Antenna CAT1 LTE
SIM Card Slot 4G connectivity
Power Input 9‑40V DC
5000mAh Battery Backup
Status LEDs Power, GNSS, 4G
CAN/IO Port Optional
Waterproof Housing IP65

FLEET WORKFLOW

From Vehicle to Control Center

The XMCZ20D collects vehicle data and transmits it via 4G to your fleet platform, enabling real‑time monitoring and dispatching.

🚚

Vehicle

On‑board terminal

→

📡

GNSS

RTK position

→

📶

4G LTE

Data transmission

→

☁️

Cloud

Platform

→

📊

Fleet Dashboard

Monitoring

→

📱

Mobile App

Alerts & control

REAL‑TIME DASHBOARD

Live Vehicle Intelligence

Visualize vehicle data in real‑time with our cloud‑based dashboard or integrate with your existing platform.

📍

45.2°N

Latitude

📍

-123.1°E

Longitude

🚀

68 km/h

Speed

⛽

78%

Fuel Level

🛤️

12,450 km

Odometer

🔴

Online

Status

⚠️

Alerts

📊

2.3h

Engine Hours

APPLICATIONS

Built for Every Fleet

From logistics to mining, XMCZ20D is engineered for diverse vehicle tracking and fleet management needs.

🚛

Fleet Management

Real‑time tracking, route optimization, and driver behavior monitoring.

Learn More

⛏️

Mining Trucks

Track heavy haulers in remote sites with RTK precision and rugged reliability.

Learn More

🏗️

Construction Machinery

Monitor excavators, bulldozers, and cranes on job sites.

Learn More

❄️

Cold Chain Logistics

Track refrigerated trucks and ensure temperature‑controlled delivery.

Learn More

🚌

Public Bus

Improve schedule adherence and passenger information with real‑time location.

Learn More

☣️

Hazardous Goods Transport

Ensure safety compliance and route monitoring for dangerous cargo.

Learn More

🚜

Agricultural Machinery

Track tractors, harvesters, and sprayers for precision farming.

Learn More

🚓

Municipal Vehicles

Manage garbage trucks, street sweepers, and public service fleets.

Learn More

SATELLITE SYSTEMS

Global Satellite Coverage

XMCZ20D supports GPS, BeiDou, LBS, AGNSS, and RTK for continuous, high‑availability tracking in any environment.

🇺🇸

GPS

L1 C/A

Continuous tracking, urban canyon performance

🇨🇳

BeiDou

B1I

High availability, fast signal recovery

📡

LBS

Cell ID / TDOA

Assisted location for indoor/urban

🚀

AGNSS

Network assisted

Fast fix (<25s), improved sensitivity

📏

RTK

Correction data

Centimeter accuracy (<0.6m CEP)

🌐

SBAS

WAAS, EGNOS

Augmentation for improved accuracy

SOFTWARE PLATFORM

Integrate with Your Ecosystem

XMCZ20D supports MQTT, TCP, REST API, and works with leading fleet management platforms, cloud services, and mapping providers.

📊

Fleet Management

Wialon, GPSGate, Tracksolid

☁️

Cloud Platforms

AWS IoT, Azure, ThingWorx

🔌

Protocols

MQTT, TCP, REST API

🗺️

Maps

Google, OpenStreetMap, Baidu

📱

Mobile Apps

Android / iOS custom apps

🌐

Web Dashboard

Live tracking & analytics

TECHNICAL SPECIFICATIONS

Detailed Vehicle Specifications

Complete technical data for the XMCZ20D Vehicle Tracking Terminal.

General+

CPU	4G CAT1 Module
GNSS Processor	GPS/BDS Single‑Freq RTK
Network Protocol	TCP, MQTT (Optional)
Battery	5000mAh Lithium
Operating Voltage	9V – 40V DC
Working Current	≥1.7A @9V

GNSS Performance+

Satellite Systems	GPS, BeiDou, LBS, AGNSS, SBAS
Channels	50
Hot Start	≤1s (open sky)
Cold Start	≤26s (open sky)
Positioning Sensitivity	Better than -159dBm
RTK Accuracy (FIX)	<0.6m CEP
Single‑point Accuracy	<5m CEP
Speed Accuracy	<0.1 m/s
Time Accuracy	<60s

Communication+

4G CAT1 Bands	FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41
Protocols	TCP, MQTT (Optional)
GNSS Antenna	48×48×5mm active

Vehicle Interface+

Power Input	9‑40V DC
CAN/IO Port	Optional
Status LEDs	Power, GNSS, 4G
SIM Slot	Micro SIM

Environmental & Certifications+

Operating Temperature	-20°C to +70°C
Storage Temperature	-20°C to +70°C
Protection	IP65 (water/dust resistant)
Certifications	CE, FCC, RoHS

DOWNLOADS

Resources & Documentation

Access installation guides, wiring diagrams, protocol manuals, SDK, firmware, and certificates.

📄

Datasheet

v2.1

1.4 MB

PDF

📘

User Manual

v1.8

3.8 MB

PDF

🔌

Installation Guide

v1.2

2.1 MB

PDF

📐

Wiring Diagram

v1.0

0.8 MB

PDF

📡

Protocol Manual

v2.0

1.9 MB

PDF

⚙️

SDK & API

v3.0

7.5 MB

ZIP

📦

Firmware

v2.2.1

12 MB

BIN

📜

Certificate

2026

0.5 MB

PDF

FAQ

Frequently Asked Questions

Find answers to common questions about the XMCZ20D Vehicle Tracking Terminal.

Ready to Get a Quote?

Contact our team today for pricing, technical support, or to request a demo of the XMCZ20D Vehicle Tracking Terminal. We're here to help you optimize your fleet operations.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

No comment

Previous : XM1330 Rugged Windows Tablet with RTK GNSS Next : XM-L5 Rugged Android 13 Smartphone – 8000mAh Battery, 5.45” HD Screen, 48MP Camera, IP68, 5G

Product Detail

XMCZ20D 4G Vehicle Tracking Terminal with RTK GNSS | Starmax Fleet Management

RTK GNSS · 4G · VEHICLE TRACKING

XMCZ20D 4G Vehicle Tracking Terminal with RTK GNSS

Rugged fleet management terminal with RTK centimeter positioning, 4G CAT1, 9‑40V wide input, 5000mAh backup, and MQTT/TCP — built for logistics, mining, construction, and commercial telematics.

Fleet ManagementLogisticsMining VehiclesConstruction EquipmentPublic TransportationCold Chain Monitoring

RTK Positioning (<0.6m CEP)

GPS + BeiDou Dual‑Mode

4G CAT1 Communication

9‑40V Wide Voltage Input

5000mAh Backup Battery

MQTT / TCP Protocols

0RTK Accuracy (m)

9‑40VWide Voltage

5000Battery (mAh)

4GCAT1

Request a Quote View Specifications

PRODUCT OVERVIEW

Precision Vehicle Tracking for Fleet Management

📡RTK<0.6m CEP

📶4GCAT1

🔋5000mAh

⚡9‑40VInput

🌐MQTTTCP

RTK Precision for Fleet Optimization

RTK Positioning <0.6m CEP
GPS + BeiDou Dual‑Mode GNSS
4G CAT1 with TCP/MQTT
9‑40V Wide Voltage Input
5000mAh Backup Battery
50‑Channel GNSS Engine

📏

RTK Tracking

Centimeter precision

🚚

Fleet Dispatch

Real‑time location

📡

Remote Monitoring

4G connectivity

⚡

Wide Voltage

9‑40V compatibility

☁️

Cloud Platform

MQTT/TCP

🛡️

Industrial Reliability

Vehicle‑grade

<0.6m

RTK Accuracy

50

GNSS Channels

4G

CAT1

5000mAh

Battery

📡

RTK Precision

Centimeter‑level accuracy for fleet tracking.

📶

4G Connectivity

Reliable LTE with TCP/MQTT support.

⚡

Wide Voltage

9‑40V compatible with 12/24V systems.

🔋

Backup Battery

5000mAh for extended operation.

CORE FEATURES

Six Powerful Features for Fleet Intelligence

XMCZ20D delivers RTK positioning, 4G connectivity, wide voltage input, and platform integration — everything you need for modern fleet management and vehicle telematics.

📡

RTK Fleet Positioning

Centimeter‑level RTK accuracy (<0.6m CEP) for precise vehicle tracking and dispatch optimization.

Learn More →

📶

4G CAT1 Communication

LTE CAT1 with TCP/MQTT support for real‑time data transmission to your fleet platform.

Learn More →

⚡

Wide Voltage Input

9‑40V DC input compatible with 12V and 24V vehicle electrical systems.

Learn More →

🔋

Backup Battery

5000mAh built‑in lithium battery for continuous operation during engine off.

Learn More →

☁️

MQTT/TCP Platform

Flexible protocol support for integration with Wialon, GPSGate, AWS IoT, and custom solutions.

Learn More →

🚛

Fleet Management Ready

Ideal for logistics, mining, construction, public transport, and cold chain monitoring.

Learn More →

EXPLORE EVERY DETAIL

Interactive Product Explorer

Hover over any hotspot to learn about the key components of the XMCZ20D vehicle tracking terminal.

Key Components

GNSS Antenna 48×48mm active
4G Antenna CAT1 LTE
SIM Card Slot 4G connectivity
Power Input 9‑40V DC
5000mAh Battery Backup
Status LEDs Power, GNSS, 4G
CAN/IO Port Optional
Waterproof Housing IP65

FLEET WORKFLOW

From Vehicle to Control Center

The XMCZ20D collects vehicle data and transmits it via 4G to your fleet platform, enabling real‑time monitoring and dispatching.

🚚

Vehicle

On‑board terminal

→

📡

GNSS

RTK position

→

📶

4G LTE

Data transmission

→

☁️

Cloud

Platform

→

📊

Fleet Dashboard

Monitoring

→

📱

Mobile App

Alerts & control

REAL‑TIME DASHBOARD

Live Vehicle Intelligence

Visualize vehicle data in real‑time with our cloud‑based dashboard or integrate with your existing platform.

📍

45.2°N

Latitude

📍

-123.1°E

Longitude

🚀

68 km/h

Speed

⛽

78%

Fuel Level

🛤️

12,450 km

Odometer

🔴

Online

Status

⚠️

Alerts

📊

2.3h

Engine Hours

APPLICATIONS

Built for Every Fleet

From logistics to mining, XMCZ20D is engineered for diverse vehicle tracking and fleet management needs.

🚛

Fleet Management

Real‑time tracking, route optimization, and driver behavior monitoring.

Learn More

⛏️

Mining Trucks

Track heavy haulers in remote sites with RTK precision and rugged reliability.

Learn More

🏗️

Construction Machinery

Monitor excavators, bulldozers, and cranes on job sites.

Learn More

❄️

Cold Chain Logistics

Track refrigerated trucks and ensure temperature‑controlled delivery.

Learn More

🚌

Public Bus

Improve schedule adherence and passenger information with real‑time location.

Learn More

☣️

Hazardous Goods Transport

Ensure safety compliance and route monitoring for dangerous cargo.

Learn More

🚜

Agricultural Machinery

Track tractors, harvesters, and sprayers for precision farming.

Learn More

🚓

Municipal Vehicles

Manage garbage trucks, street sweepers, and public service fleets.

Learn More

SATELLITE SYSTEMS

Global Satellite Coverage

XMCZ20D supports GPS, BeiDou, LBS, AGNSS, and RTK for continuous, high‑availability tracking in any environment.

🇺🇸

GPS

L1 C/A

Continuous tracking, urban canyon performance

🇨🇳

BeiDou

B1I

High availability, fast signal recovery

📡

LBS

Cell ID / TDOA

Assisted location for indoor/urban

🚀

AGNSS

Network assisted

Fast fix (<25s), improved sensitivity

📏

RTK

Correction data

Centimeter accuracy (<0.6m CEP)

🌐

SBAS

WAAS, EGNOS

Augmentation for improved accuracy

SOFTWARE PLATFORM

Integrate with Your Ecosystem

XMCZ20D supports MQTT, TCP, REST API, and works with leading fleet management platforms, cloud services, and mapping providers.

📊

Fleet Management

Wialon, GPSGate, Tracksolid

☁️

Cloud Platforms

AWS IoT, Azure, ThingWorx

🔌

Protocols

MQTT, TCP, REST API

🗺️

Maps

Google, OpenStreetMap, Baidu

📱

Mobile Apps

Android / iOS custom apps

🌐

Web Dashboard

Live tracking & analytics

TECHNICAL SPECIFICATIONS

Detailed Vehicle Specifications

Complete technical data for the XMCZ20D Vehicle Tracking Terminal.

General+

CPU	4G CAT1 Module
GNSS Processor	GPS/BDS Single‑Freq RTK
Network Protocol	TCP, MQTT (Optional)
Battery	5000mAh Lithium
Operating Voltage	9V – 40V DC
Working Current	≥1.7A @9V

GNSS Performance+

Satellite Systems	GPS, BeiDou, LBS, AGNSS, SBAS
Channels	50
Hot Start	≤1s (open sky)
Cold Start	≤26s (open sky)
Positioning Sensitivity	Better than -159dBm
RTK Accuracy (FIX)	<0.6m CEP
Single‑point Accuracy	<5m CEP
Speed Accuracy	<0.1 m/s
Time Accuracy	<60s

Communication+

4G CAT1 Bands	FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41
Protocols	TCP, MQTT (Optional)
GNSS Antenna	48×48×5mm active

Vehicle Interface+

Power Input	9‑40V DC
CAN/IO Port	Optional
Status LEDs	Power, GNSS, 4G
SIM Slot	Micro SIM

Environmental & Certifications+

Operating Temperature	-20°C to +70°C
Storage Temperature	-20°C to +70°C
Protection	IP65 (water/dust resistant)
Certifications	CE, FCC, RoHS

DOWNLOADS

Resources & Documentation

Access installation guides, wiring diagrams, protocol manuals, SDK, firmware, and certificates.

📄

Datasheet

v2.1

1.4 MB

PDF

📘

User Manual

v1.8

3.8 MB

PDF

🔌

Installation Guide

v1.2

2.1 MB

PDF

📐

Wiring Diagram

v1.0

0.8 MB

PDF

📡

Protocol Manual

v2.0

1.9 MB

PDF

⚙️

SDK & API

v3.0

7.5 MB

ZIP

📦

Firmware

v2.2.1

12 MB

BIN

📜

Certificate

2026

0.5 MB

PDF

FAQ

Frequently Asked Questions

Find answers to common questions about the XMCZ20D Vehicle Tracking Terminal.

Ready to Get a Quote?

Contact our team today for pricing, technical support, or to request a demo of the XMCZ20D Vehicle Tracking Terminal. We're here to help you optimize your fleet operations.

✉ serenasSun@outlook.com 📞 +86 186 7671 6687 💬 WhatsApp: +852 6945 5984 🌐 www.starmax.ltd
