XM1330 Rugged Windows Tablet with RTK GNSS
XM1330 Rugged Windows Tablet with RTK GNSS
XM1330 Rugged Windows Tablet with RTK GNSS
XM1330 Rugged Windows Tablet with RTK GNSS
XM1330 Rugged Windows Tablet with RTK GNSS
XM1330 Rugged Windows Tablet with RTK GNSS

XM1330 Rugged Windows Tablet with RTK GNSS

The XM1330 is a high-performance 13.3-inch rugged Windows tablet engineered for reliable mobile computing, industrial data collection and field operations. Powered by Intel® Celeron N5100 and supporting Windows 10 Pro or Windows 11, it combines an IP65-rated rugged enclosure, Full HD glove-touch display, 4G LTE, dual-band Wi-Fi, Bluetooth and multi-constellation positioning including Beidou, GPS and GLONASS. Rich industrial interfaces such as RS232, Gigabit RJ45, HDMI, USB 3.0 and optional 2D ba

XM1330 Rugged Windows Tablet with RTK GNSS

Select the number of specifications

Please check the product information you want!

Product Detail

RUGGED WINDOWS TABLET

XM1330 13.3″ Rugged Windows Tablet

Built for warehouse, logistics, GIS survey, public safety and industrial inspection — 13.3″ Full HD, IP65, Intel N5100, and full industrial I/O.

Windows 11 Pro
Intel N5100 Processor
13.3″ Full HD Display
IP65 Waterproof
GPS + BeiDou + GLONASS
2D Barcode Optional
13.3″Display
IP65Protection
6000mAh
Intel N5100CPU
Request a Quote     Download Datasheet

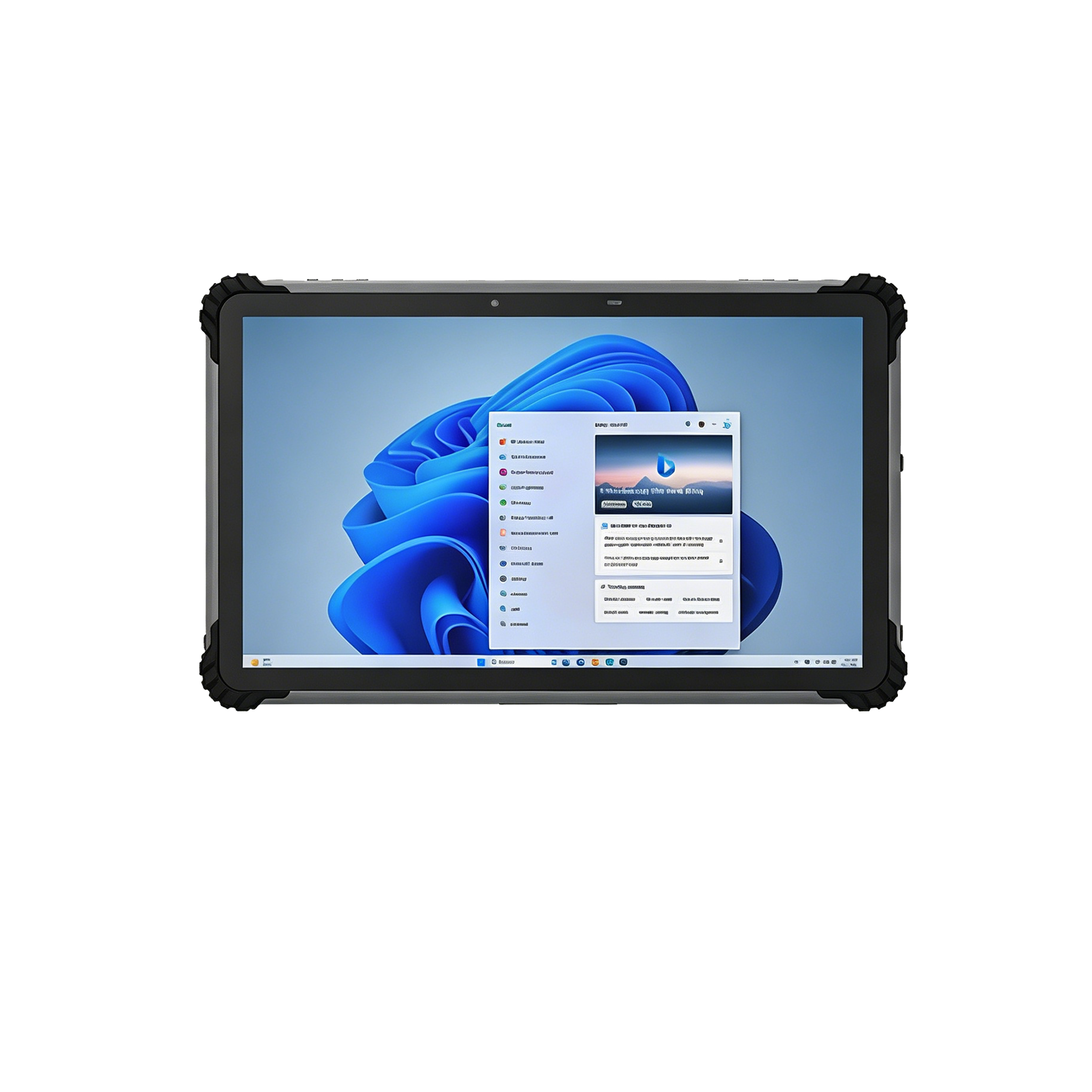

XM1330 Rugged Windows Tablet
PRODUCT OVERVIEW

Rugged Windows Tablet Built for Harsh Environments

The XM1330 is a high-performance rugged Windows tablet designed for demanding industrial environments. Powered by Intel® Celeron N5100 and Windows 10/11 Pro, it combines a 13.3-inch Full HD touchscreen, IP65 protection, 4G LTE, GPS, BeiDou, GLONASS, industrial interfaces and optional barcode scanning into a reliable mobile computing platform.

Ideal for warehouse management, utility inspection, manufacturing, transportation, GIS surveying and field service.

13.3″Display
1920×1080Resolution
450 nitsBrightness
6000mAhBattery
XM1330 overview

Core Features

The XM1330 delivers performance, durability, and connectivity for the most demanding field work.

⚡

Intel N5100

Quad-core 1.1GHz (turbo 2.8GHz)

Windows 11 Pro · Fanless

UHD Graphics 24 EUs
📱

13.3″ FHD Display

1920×1080 · 450 nits

10‑point touch · Glove touch

Sunlight readable
🛡️

Rugged Design

IP65 waterproof & dustproof

1.2m drop resistance

Industrial Grade
📶

Wireless

GPS · BeiDou · GLONASS

4G LTE · WiFi 5 · Bluetooth 4.2

Global bands
🔌

Industrial Ports

USB 3.0 · RJ45 · HDMI · RS232

SIM · TF · 2× Aviation

Full I/O
📇

Data Collection

2D Barcode (optional)

Fingerprint · NFC · Pogo Pin

Scan ready

3D Product Structure

Hover over the ports to explore the XM1330's industrial connectivity.

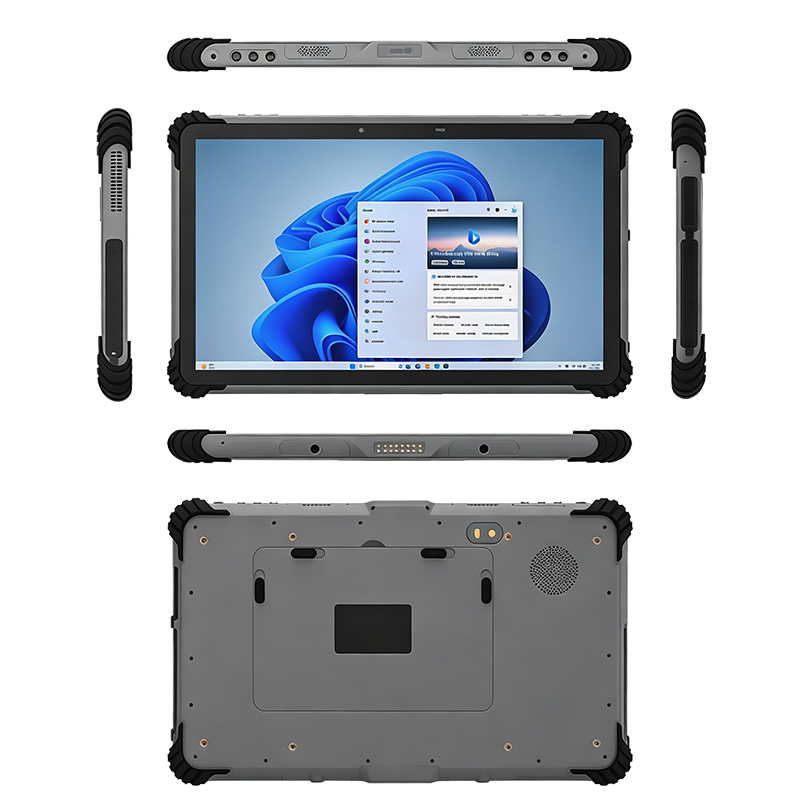

XM1330 ports and interfaces
USB 3.0 ×2 – High‑speed data
HDMI – External display
RJ45 – Gigabit Ethernet
RS232 – Serial communication
SIM / TF Slot
DC Input – 12V 4A
Aviation Interface ×2

Industrial Interfaces

  • 🔌 USB 3.0 ×2 High‑speed
  • 🖥️ HDMI 1080p output
  • 🌐 RJ45 Gigabit Ethernet
  • ⚙️ RS232 DB9 serial
  • 📶 SIM / TF 4G + storage
  • ✈️ Aviation ×2 Custom / RS232

Rugged Protection

Built to withstand the toughest conditions — rain, drops, dust, and extreme temperatures.

💧

Waterproof

IP65 – protected against low-pressure water jets

📏

1.2m Drop

Withstands accidental drops from 1.2 meters

🧹

Dustproof

Sealed design prevents dust ingress

🌡️

Wide Temp

Operates from -20°C to +60°C

Display & Performance

Crisp visuals and responsive performance for field productivity.

XM1330 display

13.3″ Full HD

  • 🖥️ 1920×1080 IPS
  • ☀️ 450 nits brightness
  • ✋ 10‑point capacitive touch
  • 🧤 Thin glove support
  • 🎮 Intel UHD Graphics
  • ⚡ Windows 11 Pro

Industrial Connectivity

From the field to the cloud — seamless data flow for your operations.

📡 4G
→
☁️ Cloud
→
📱 XM1330
→
🏢 Warehouse
→
📊 ERP
→
📇 Barcode
→
📍 GPS

Application Scenarios

The XM1330 empowers professionals across industries with rugged Windows performance.

🏢

Warehouse Management

Inventory, barcode, asset tracking

Warehouse

Real-time inventory, scanning

🚚

Logistics & Transport

Fleet management, route optimization

Logistics

Route planning, delivery proof

🗺️

GIS & Field Survey

Mapping, GPS/BeiDou data collection

GIS Survey

Precise GNSS mapping

⚡

Utility Inspection

Power line, pipeline, asset inspection

Utilities

Asset inspection, maintenance

🛡️

Public Safety

Police, fire, emergency response

Public Safety

Incident reporting, command

🏭

Industrial Manufacturing

MES, production line, QC

Manufacturing

MES integration, production

Technical Specifications

Complete technical data organized for easy reference.

Processor+
OSWindows 10 Pro (Windows 11 optional)
CPUIntel Celeron N5100 (4C4T, 1.1GHz, turbo 2.8GHz)
GPUIntel UHD Graphics 24 EUs
RAM4GB / 8GB (max 16GB)
Storage128GB / 256GB / 512GB
Display+
Size13.3 inch
Resolution1920 × 1080
Brightness450 nits
Touch10‑point capacitive, glove support
Wireless+
WWAN4G LTE (FDD: B1/B2/B3/B4/B5/B7/B8/B28; TDD: B40)
GNSSGPS, BeiDou, GLONASS
WiFi802.11 b/g/n/ac, 2.4G/5G, AP mode
Bluetooth4.2
NFC13.56 MHz, 5cm+
Interface+
USB 3.0×2 (Type-A)
HDMIType A ×1
RJ45Gigabit Ethernet
RS232Aviation interface ×2 (custom/RS232)
SIM/TF×1 slot
Audio3.5mm combo
DC Input12V 4A ∮4.0mm
PogopinBottom 16PIN (USB2.0 + RS232 + charging)
Battery & Mechanical+
Battery6000mAh / 7.6V (45.6Wh)
Dimensions330 × 205 × 19.5 mm
Weight1300 ± 100 g
Environmental+
ProtectionIP65
Drop1.2 meters
Operating Temp.-20°C to +60°C
Storage Temp.-25°C to +80°C
CertificationsCE, FCC, RoHS

Accessories & Add‑ons

Enhance your XM1330 with our complete range of accessories.

🔌

Vehicle Dock

In-vehicle mounting & charging

🖥️

Desk Dock

Desktop dock with USB, HDMI, RJ45

🖐️

Hand Strap

Secure grip for field use

🎒

Shoulder Strap

Comfortable carry strap

📇

Barcode Scanner

Optional 2D scan module

🔋

Power Adapter

12V 4A fast charging

🛡️

Screen Protector

Anti-glare, scratch-resistant

✈️

Aviation Cable

Custom interface cable

Frequently Asked Questions

Find quick answers to common questions about the XM1330.

Ready to Upgrade Your Mobile Workforce?

Get a quote, request a demo, or discuss your custom requirements. Our team is ready to help you deploy the XM1330 in your operations.

✅ ISO9001
📋 CE / FCC / RoHS
🔧 OEM / ODM
🏭 Factory Direct
✉ serenasSun@outlook.com📞 +86 186 7671 6687💬 WhatsApp: +852 6945 5984🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

No comment

Previous : XM1001W Rugged Windows Tablet for Data Collection Next : XMCZ20D Vehicle Tracking Terminal with 4G & RTK GNSS
Product Detail
RUGGED WINDOWS TABLET

XM1330 13.3″ Rugged Windows Tablet

Built for warehouse, logistics, GIS survey, public safety and industrial inspection — 13.3″ Full HD, IP65, Intel N5100, and full industrial I/O.

Windows 11 Pro
Intel N5100 Processor
13.3″ Full HD Display
IP65 Waterproof
GPS + BeiDou + GLONASS
2D Barcode Optional
13.3″Display
IP65Protection
6000mAh
Intel N5100CPU
Request a Quote     Download Datasheet
XM1330 Rugged Windows Tablet
PRODUCT OVERVIEW

Rugged Windows Tablet Built for Harsh Environments

The XM1330 is a high-performance rugged Windows tablet designed for demanding industrial environments. Powered by Intel® Celeron N5100 and Windows 10/11 Pro, it combines a 13.3-inch Full HD touchscreen, IP65 protection, 4G LTE, GPS, BeiDou, GLONASS, industrial interfaces and optional barcode scanning into a reliable mobile computing platform.

Ideal for warehouse management, utility inspection, manufacturing, transportation, GIS surveying and field service.

13.3″Display
1920×1080Resolution
450 nitsBrightness
6000mAhBattery
XM1330 overview

Core Features

The XM1330 delivers performance, durability, and connectivity for the most demanding field work.

⚡

Intel N5100

Quad-core 1.1GHz (turbo 2.8GHz)

Windows 11 Pro · Fanless

UHD Graphics 24 EUs
📱

13.3″ FHD Display

1920×1080 · 450 nits

10‑point touch · Glove touch

Sunlight readable
🛡️

Rugged Design

IP65 waterproof & dustproof

1.2m drop resistance

Industrial Grade
📶

Wireless

GPS · BeiDou · GLONASS

4G LTE · WiFi 5 · Bluetooth 4.2

Global bands
🔌

Industrial Ports

USB 3.0 · RJ45 · HDMI · RS232

SIM · TF · 2× Aviation

Full I/O
📇

Data Collection

2D Barcode (optional)

Fingerprint · NFC · Pogo Pin

Scan ready

3D Product Structure

Hover over the ports to explore the XM1330's industrial connectivity.

XM1330 ports and interfaces
USB 3.0 ×2 – High‑speed data
HDMI – External display
RJ45 – Gigabit Ethernet
RS232 – Serial communication
SIM / TF Slot
DC Input – 12V 4A
Aviation Interface ×2

Industrial Interfaces

  • 🔌 USB 3.0 ×2 High‑speed
  • 🖥️ HDMI 1080p output
  • 🌐 RJ45 Gigabit Ethernet
  • ⚙️ RS232 DB9 serial
  • 📶 SIM / TF 4G + storage
  • ✈️ Aviation ×2 Custom / RS232

Rugged Protection

Built to withstand the toughest conditions — rain, drops, dust, and extreme temperatures.

💧

Waterproof

IP65 – protected against low-pressure water jets

📏

1.2m Drop

Withstands accidental drops from 1.2 meters

🧹

Dustproof

Sealed design prevents dust ingress

🌡️

Wide Temp

Operates from -20°C to +60°C

Display & Performance

Crisp visuals and responsive performance for field productivity.

XM1330 display

13.3″ Full HD

  • 🖥️ 1920×1080 IPS
  • ☀️ 450 nits brightness
  • ✋ 10‑point capacitive touch
  • 🧤 Thin glove support
  • 🎮 Intel UHD Graphics
  • ⚡ Windows 11 Pro

Industrial Connectivity

From the field to the cloud — seamless data flow for your operations.

📡 4G
→
☁️ Cloud
→
📱 XM1330
→
🏢 Warehouse
→
📊 ERP
→
📇 Barcode
→
📍 GPS

Application Scenarios

The XM1330 empowers professionals across industries with rugged Windows performance.

🏢

Warehouse Management

Inventory, barcode, asset tracking

Warehouse

Real-time inventory, scanning

🚚

Logistics & Transport

Fleet management, route optimization

Logistics

Route planning, delivery proof

🗺️

GIS & Field Survey

Mapping, GPS/BeiDou data collection

GIS Survey

Precise GNSS mapping

⚡

Utility Inspection

Power line, pipeline, asset inspection

Utilities

Asset inspection, maintenance

🛡️

Public Safety

Police, fire, emergency response

Public Safety

Incident reporting, command

🏭

Industrial Manufacturing

MES, production line, QC

Manufacturing

MES integration, production

Technical Specifications

Complete technical data organized for easy reference.

Processor+
OSWindows 10 Pro (Windows 11 optional)
CPUIntel Celeron N5100 (4C4T, 1.1GHz, turbo 2.8GHz)
GPUIntel UHD Graphics 24 EUs
RAM4GB / 8GB (max 16GB)
Storage128GB / 256GB / 512GB
Display+
Size13.3 inch
Resolution1920 × 1080
Brightness450 nits
Touch10‑point capacitive, glove support
Wireless+
WWAN4G LTE (FDD: B1/B2/B3/B4/B5/B7/B8/B28; TDD: B40)
GNSSGPS, BeiDou, GLONASS
WiFi802.11 b/g/n/ac, 2.4G/5G, AP mode
Bluetooth4.2
NFC13.56 MHz, 5cm+
Interface+
USB 3.0×2 (Type-A)
HDMIType A ×1
RJ45Gigabit Ethernet
RS232Aviation interface ×2 (custom/RS232)
SIM/TF×1 slot
Audio3.5mm combo
DC Input12V 4A ∮4.0mm
PogopinBottom 16PIN (USB2.0 + RS232 + charging)
Battery & Mechanical+
Battery6000mAh / 7.6V (45.6Wh)
Dimensions330 × 205 × 19.5 mm
Weight1300 ± 100 g
Environmental+
ProtectionIP65
Drop1.2 meters
Operating Temp.-20°C to +60°C
Storage Temp.-25°C to +80°C
CertificationsCE, FCC, RoHS

Accessories & Add‑ons

Enhance your XM1330 with our complete range of accessories.

🔌

Vehicle Dock

In-vehicle mounting & charging

🖥️

Desk Dock

Desktop dock with USB, HDMI, RJ45

🖐️

Hand Strap

Secure grip for field use

🎒

Shoulder Strap

Comfortable carry strap

📇

Barcode Scanner

Optional 2D scan module

🔋

Power Adapter

12V 4A fast charging

🛡️

Screen Protector

Anti-glare, scratch-resistant

✈️

Aviation Cable

Custom interface cable

Frequently Asked Questions

Find quick answers to common questions about the XM1330.

Ready to Upgrade Your Mobile Workforce?

Get a quote, request a demo, or discuss your custom requirements. Our team is ready to help you deploy the XM1330 in your operations.

✅ ISO9001
📋 CE / FCC / RoHS
🔧 OEM / ODM
🏭 Factory Direct
✉ serenasSun@outlook.com📞 +86 186 7671 6687💬 WhatsApp: +852 6945 5984🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.

XM1330 Rugged Windows Tablet with RTK GNSS

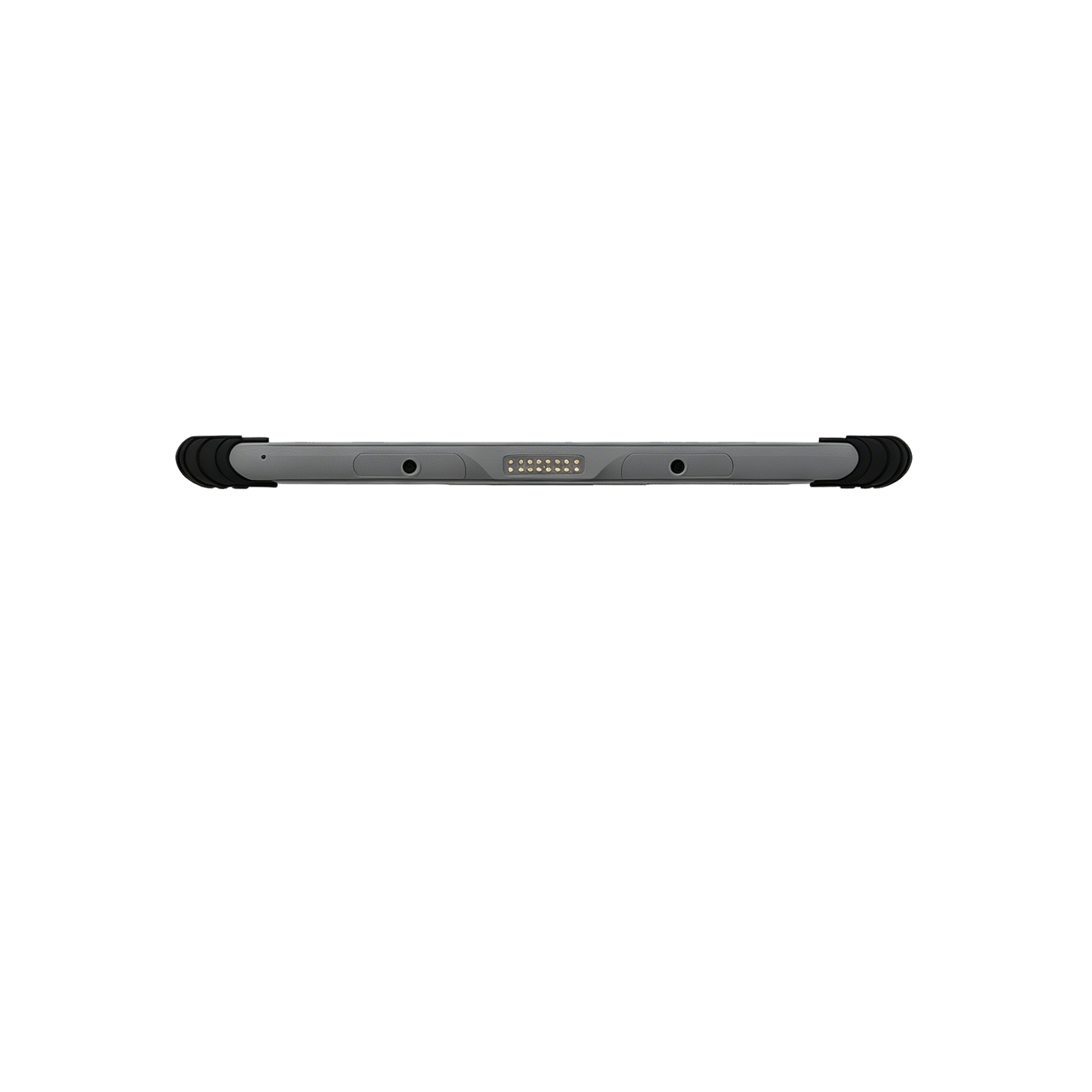

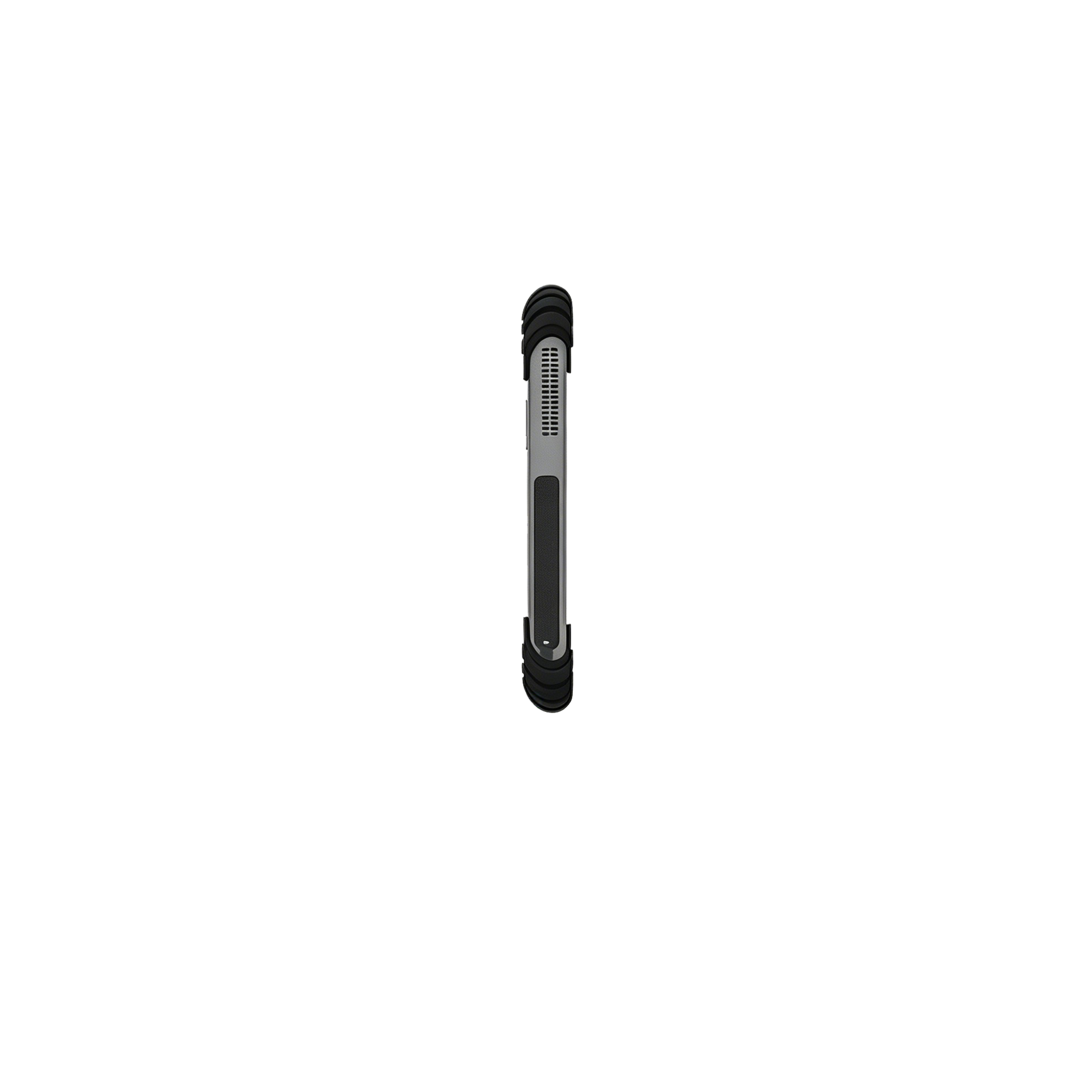

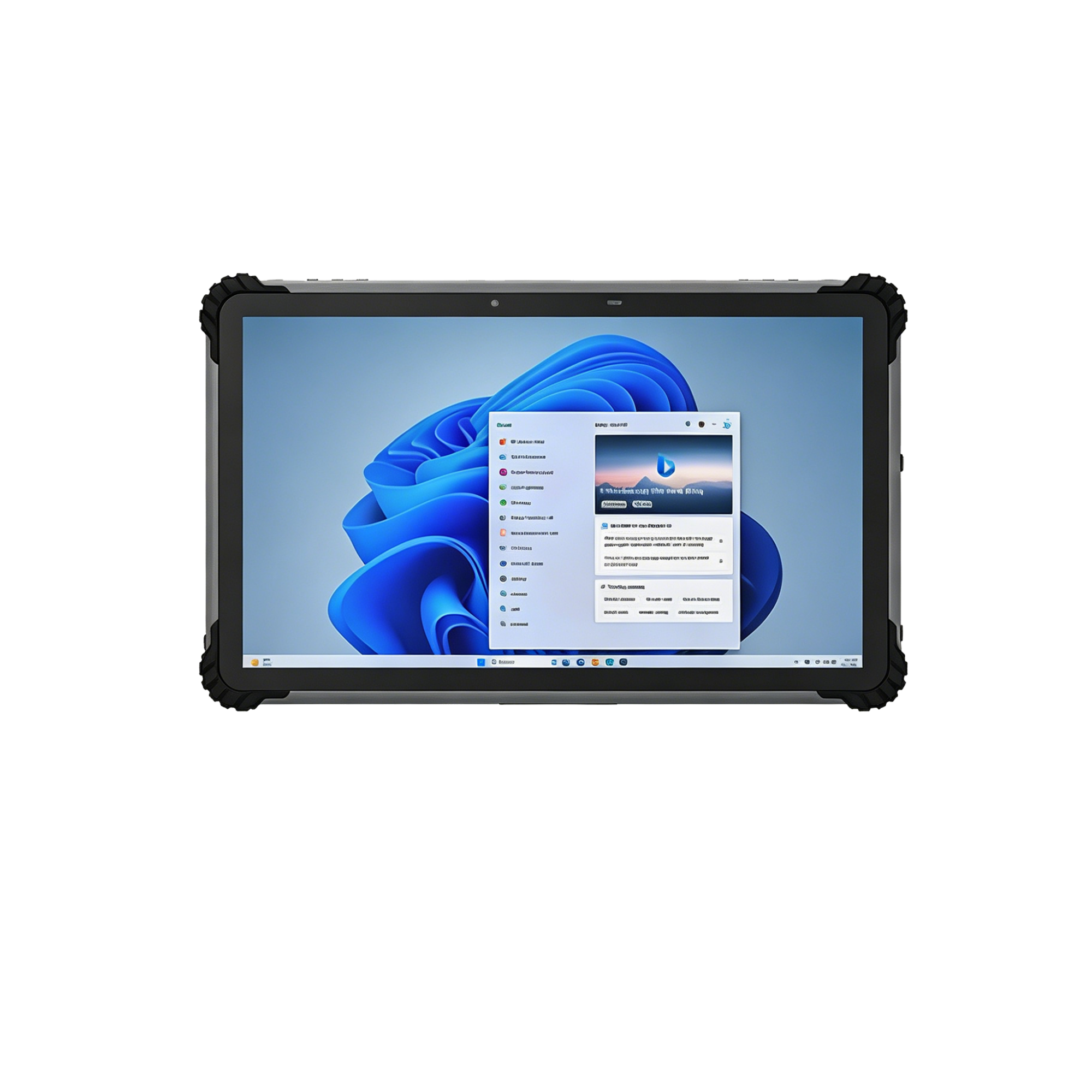

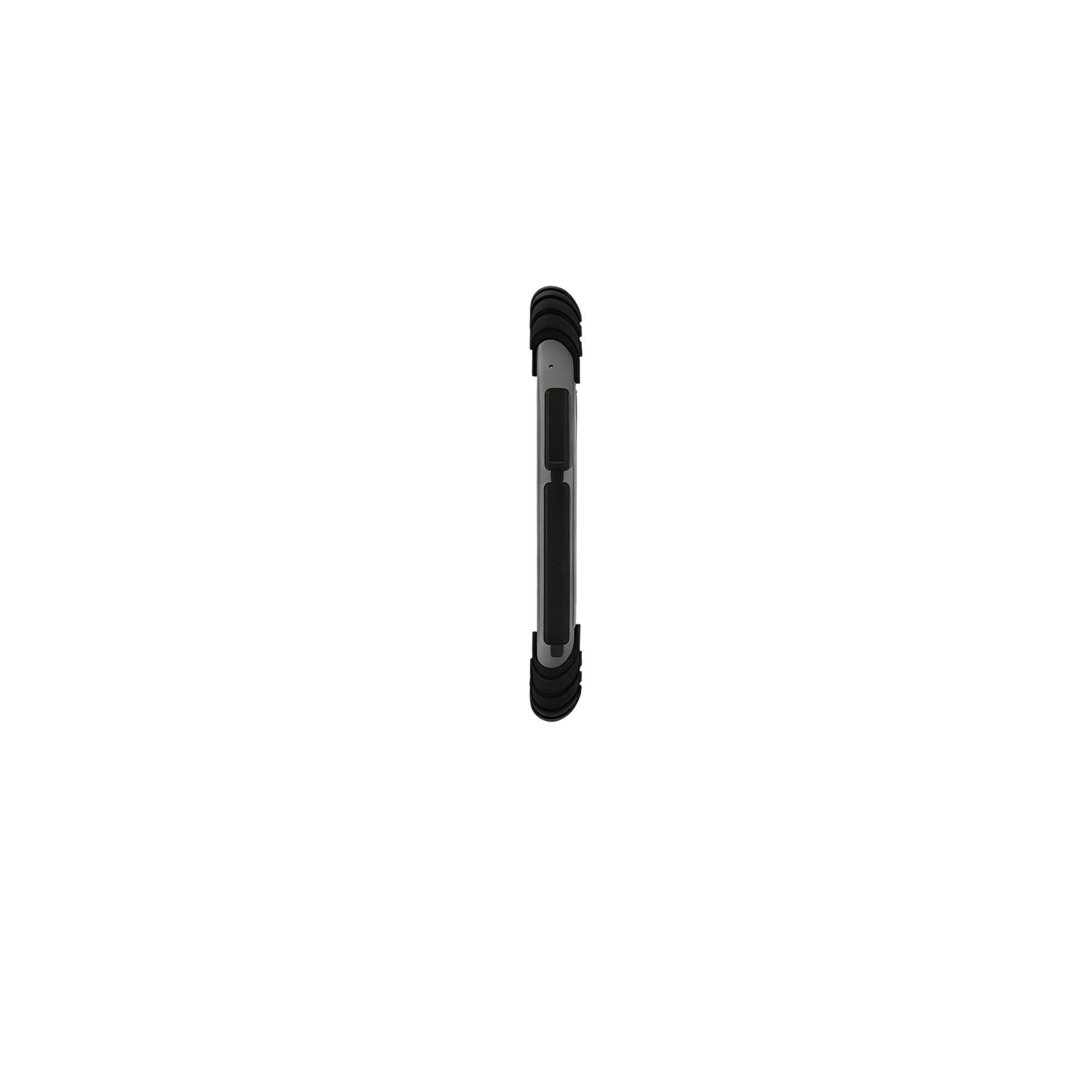

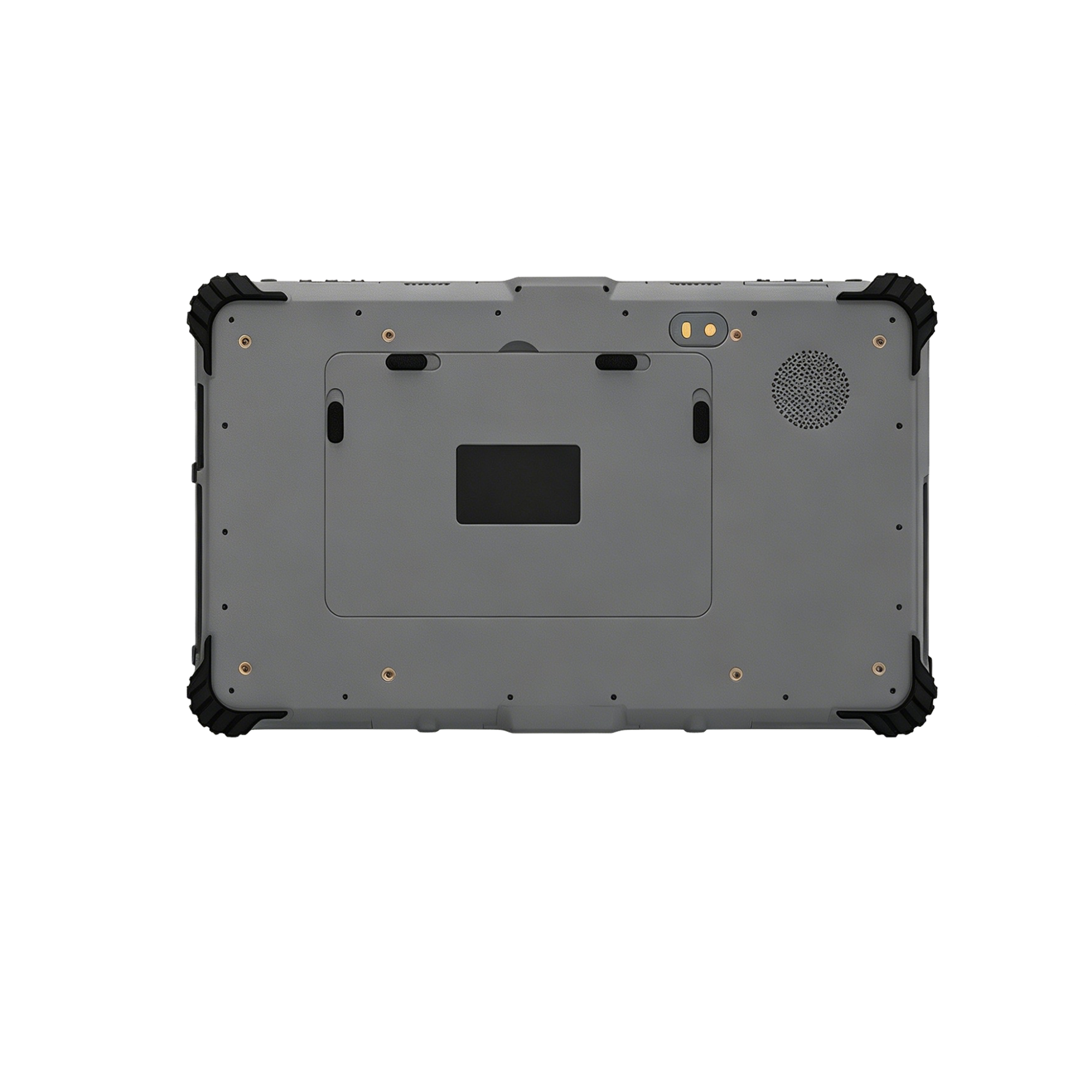

The XM1330 is a high-performance 13.3-inch rugged Windows tablet engineered for reliable mobile computing, industrial data collection and field operations. Powered by Intel® Celeron N5100 and supporting Windows 10 Pro or Windows 11, it combines an IP65-rated rugged enclosure, Full HD glove-touch display, 4G LTE, dual-band Wi-Fi, Bluetooth and multi-constellation positioning including Beidou, GPS and GLONASS. Rich industrial interfaces such as RS232, Gigabit RJ45, HDMI, USB 3.0 and optional 2D ba
Long press to look detail
Copy product links
Long by picture save/share
INQUIRY

enquiry form：

  • Please enter the verification code

Inquiry Content：

You have no items to require

Add Successfully

XM1330 Rugged Windows Tablet with RTK GNSS

Enquiry
INQUIRY

enquiry form：

  • Please enter the verification code

Inquiry Content：

You have no items to require

Add Successfully

About Us

Products

News

Contact Us

Follow Us

Main Menu

About Us

Product

Contact

Cases

News

Recent News

Hot Topic

Feature Stories


Contact Us

86-0755-36626229

starmaxtech@outlook.com

www.starmax.ltd



Follow Us

Copyright © 2015-2035 MySite Ltd. All Rights Reserved.

Service Center
Hi, how can I help you?Service1
Hi, how can I help you?Service2
Hi, how can I help you?Service3
Contacts
Working Hours
Monday to Friday
E-mail
starmaxtech@outlook.com
Qrcode
Qrcode
Service Center
Add WeChat friend to learn more about the product
Use Enterprise WeChat
"Scan" to join the group chat
Copy success!
Add WeChat friend to learn more about the product
I see.
