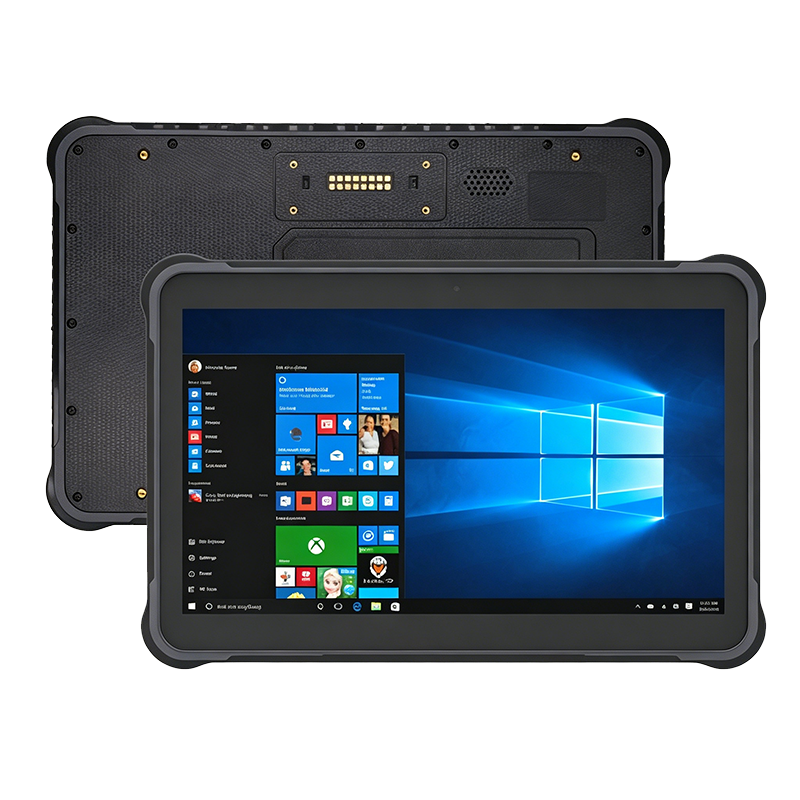

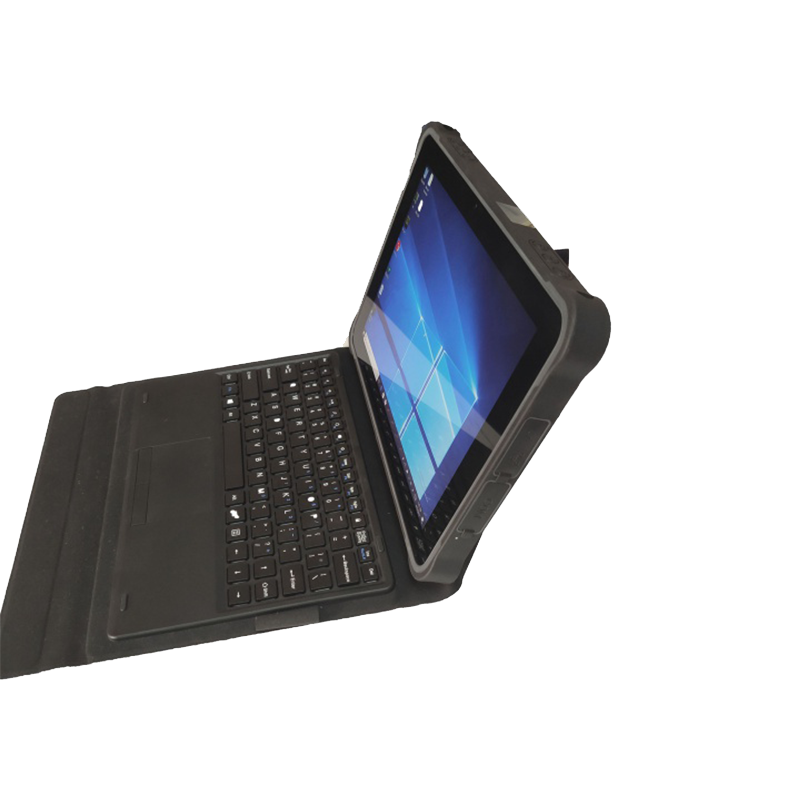

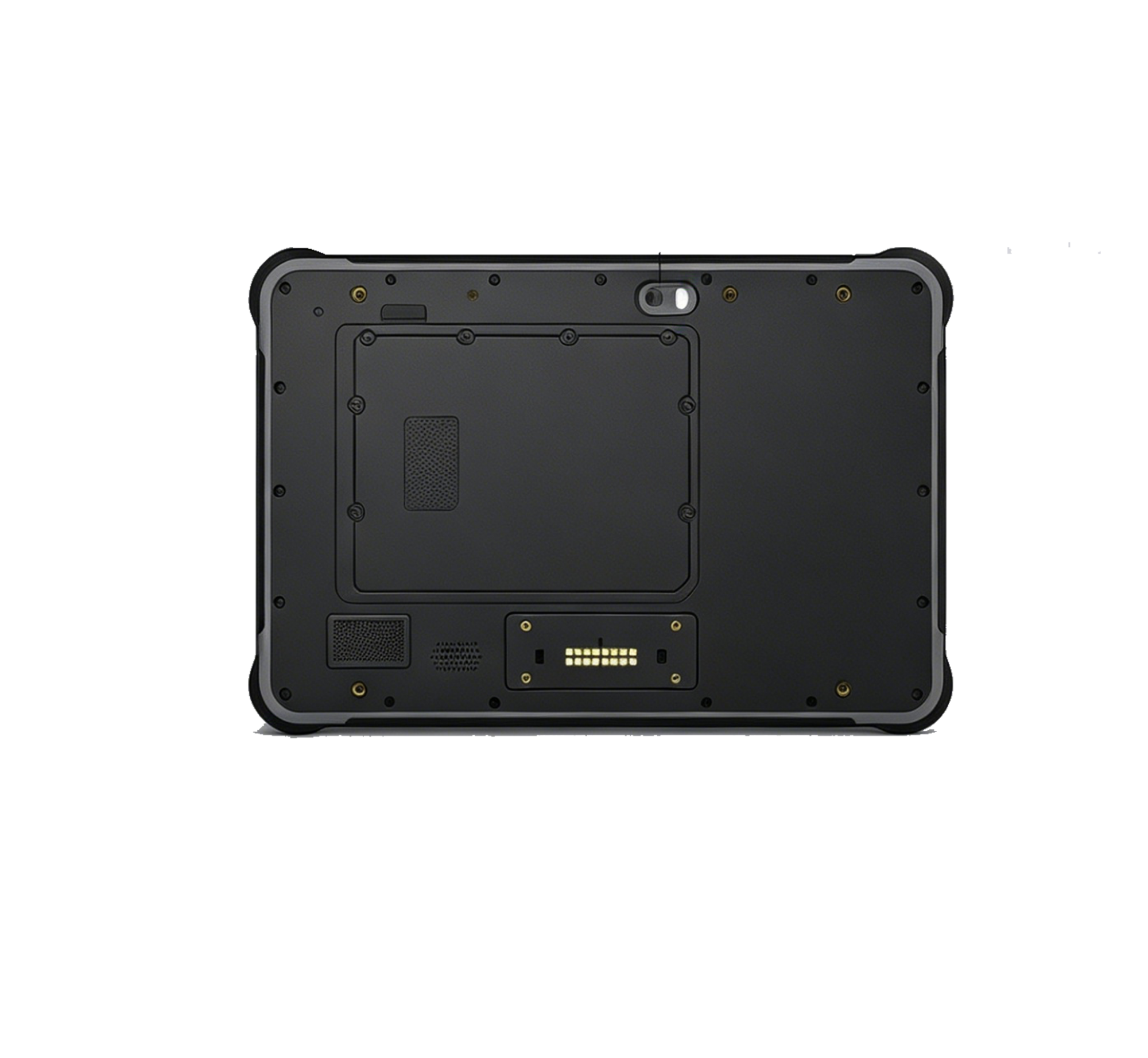

XM1001W Rugged Windows Tablet for Data Collection
XM1001W Rugged Windows Tablet for Data Collection
XM1001W Rugged Windows Tablet for Data Collection
XM1001W Rugged Windows Tablet for Data Collection

XM1001W Rugged Windows Tablet for Data Collection

The XM1001W Rugged Windows Tablet is a high-performance industrial tablet engineered for reliable mobile computing and data collection in demanding environments. Powered by Intel® Celeron N5100 and Windows 10/11 Pro, it combines IP65-rated protection, 4G LTE, dual-band Wi-Fi, multi-constellation GNSS (GPS, BeiDou and GLONASS), optional barcode scanning and rich industrial interfaces including RS232, RJ45, HDMI and USB 3.0. Its 10.1-inch Full HD touchscreen, rugged enclosure and long battery life

XM1001W Rugged Windows Tablet for Data Collection

Select the number of specifications

Please check the product information you want!

Product Detail

RUGGED WINDOWS TABLET

XM1001W IP65 Rugged Windows Tablet

Built for field work, industrial inspection, and data collection — 10.1' industrial tablet with GPS, 4G, RS232 & RJ45, powered by Windows 11 Pro.

Windows 11 Pro
IP65 Rugged Protection
GPS + 4G + WiFi
RS232 + RJ45 Industrial Ports
10.1″Display
IP65Protection
Intel N5100CPU
Request a Quote           Datasheet

XM1001W Rugged Windows Tablet
PRODUCT OVERVIEW

Rugged Windows Tablet for Demanding Field Work

The XM1001W is a rugged industrial Windows tablet designed for demanding field applications including GIS surveying, utility inspection, warehouse management, logistics, public safety and industrial automation.

Powered by Intel® Celeron N5100 processor and Windows 11 Pro, the tablet delivers reliable computing performance while integrating GPS, 4G LTE, Wi-Fi, Bluetooth and industrial interfaces including RS232, RJ45 and USB 3.0.

Its IP65-rated enclosure withstands rain, dust and 1.2-meter drops, making it ideal for harsh outdoor environments.

  • Intel Celeron N5100 Quad-Core (1.10GHz)
  • Windows 11 Pro – full desktop compatibility
  • IP65 waterproof, dustproof, 1.2m drop resistance
  • 4G LTE, GPS/BeiDou/GLONASS, WiFi, Bluetooth
  • RS232, RJ45, HDMI, USB 3.0 ×2

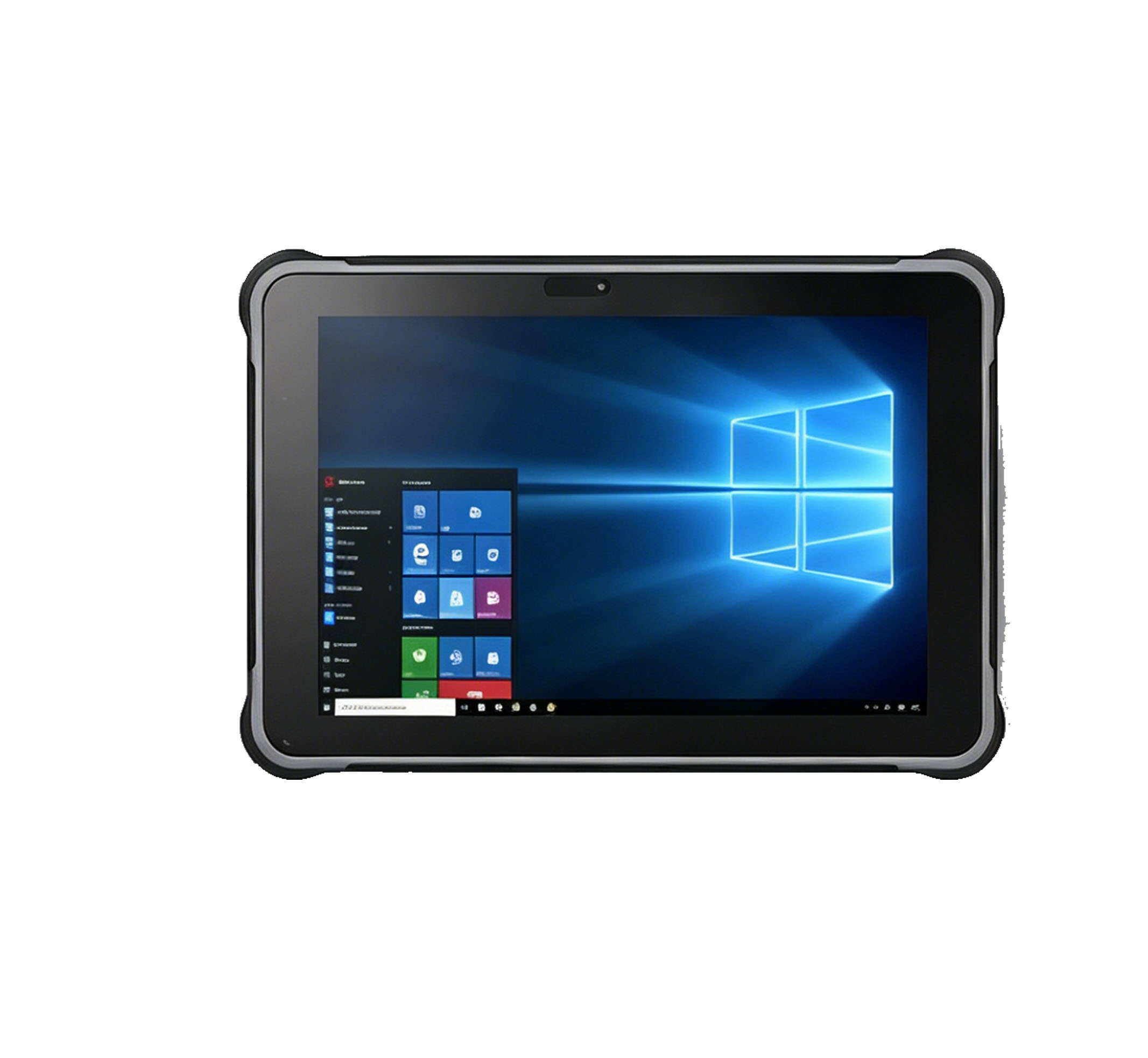

XM1001W industrial tablet overview

Key Features

The XM1001W combines performance, durability, and connectivity to empower field professionals.

⚡

Intel Performance

Intel Celeron N5100 Quad-Core

Windows 11 Pro · Fanless Architecture

UHD Graphics 24 EUs
🛡️

Rugged Protection

IP65 Waterproof & Dustproof

1.2m Drop Resistance · Industrial Grade

MIL-STD-810G
📶

Connectivity

4G LTE · WiFi Dual Band · Bluetooth

GPS · GLONASS · BeiDou

Global Bands
🔌

Industrial Interfaces

USB 3.0 · RJ45 Ethernet · RS232 Serial

HDMI · SIM Slot

Full I/O
🔋

Long Battery Life

6000mAh · 45.6Wh

All-day Field Operation

Fast Charging
📇

Data Collection

NFC · Barcode Scan Button

Optional Dock · Vehicle Mount

2D Barcode Ready

Application Scenarios

The XM1001W empowers professionals across industries with reliable Windows performance and rugged durability.

🏢

Warehouse Management

Barcode scanning, inventory tracking

Warehouse

Real-time inventory, barcode scanning

⚡

Utility Inspection

Power line, pipeline, asset inspection

Utilities

Asset inspection, maintenance

🗺️

Field Survey & GIS

Mapping, data collection, GPS positioning

GIS Survey

Precise GPS/BeiDou mapping

🛡️

Public Safety

Police, fire, emergency response

Public Safety

Incident reporting, command center

🚚

Logistics & Transport

Fleet management, route optimization

Logistics

Route optimization, proof of delivery

🏭

Industrial Manufacturing

MES, production line, quality control

Manufacturing

MES integration, production tracking

Why Choose XM1001W

Compare the XM1001W with a standard consumer tablet and see the difference.

FeatureStandard TabletXM1001W
Industrial OS✘ Android/iOS✔ Windows 11 Pro
GPS / GNSS✘ Limited✔ GPS+BeiDou+GLONASS
4G LTE✘ Optional✔ Global bands
RS232 Serial✘ No✔ Yes
RJ45 Ethernet✘ No✔ Yes
IP65 Rugged✘ Not protected✔ Waterproof & dustproof
Vehicle Dock✘ No✔ Optional

Accessories & Add‑ons

Extend the capability of your XM1001W with our full range of accessories.

🔌

Docking Station

Desktop dock with USB, HDMI, RJ45

🚗

Vehicle Dock

In-vehicle mounting and charging

🖐️

Hand Strap

Secure carrying, rugged grip

🎒

Shoulder Strap

Comfortable field carry

🔋

DC Charger

12V 4A fast charging

🚐

Vehicle Charger

12V car charging

📇

Barcode Scanner

Optional 2D barcode module

🛡️

Screen Protector

Anti-glare, scratch-resistant

Technical Specifications

Click the tabs to explore different categories.

OSWindows 10 Pro / Windows 11 Pro
CPUIntel Celeron N5100 (Quad Core, 1.10GHz)
GPUUHD Graphics 24 EUs
RAM4GB / 8GB
Storage64GB / 256GB SSD
Size10.1 inch
Resolution1920 × 1200 (WUXGA)
Brightness450 nits
Touch10‑point capacitive
GlassCorning Gorilla Glass (optional)
WWAN4G LTE (FDD: B1/B2/B3/B4/B5/B7/B8/B28; TDD: B40)
GNSSGPS, BeiDou, GLONASS
WiFi802.11a/b/g/n/ac, 2.4G/5G, AP mode
Bluetooth4.2
NFC13.56 MHz, 1‑3cm
Front Camera5MP
Rear Camera13MP with flash
USB 3.0×2 (Type-A)
RJ45Gigabit Ethernet
RS232DB9 serial (male)
HDMI1.4
SIM SlotNano SIM
Audio3.5mm combo jack
DC Input12V
Battery6000mAh / 7.6V (45.6Wh)
ChargingDC 12V 4A (included)
Battery LifeUp to 8 hours (typical)
Dimensions273 × 172 × 20 mm
Weight1150 ± 50 g
MaterialRugged plastic, rubberized edges
IP RatingIP65 (dust & water resistant)
Drop Resistance1.2 meters
Operating Temp.-20°C to +55°C
Storage Temp.-25°C to +80°C
CertificationsCE, FCC, RoHS

Downloads & Resources

Get the documentation you need for deployment and development.

📄

Datasheet

1.6 MB
PDF
📘

User Manual

4.2 MB
PDF
📦

Driver Pack

8.5 MB
ZIP
⚙️

SDK & API

10.2 MB
ZIP
📜

Certification

0.8 MB
PDF

Frequently Asked Questions

Find answers to common questions about the XM1001W rugged tablet.

Ready to Get a Quote?

Get expert advice, pricing, or request a demo of the XM1001W rugged Windows tablet. Our team is here to help you find the right data collection solution.

✅ ISO9001
📋 CE / FCC / RoHS
🔧 OEM / ODM
🏭 Factory Direct
✉ serenasSun@outlook.com📞 +86 186 7671 6687💬 WhatsApp: +852 6945 5984🌐 www.starmax.ltd

Request a Quote

Fill in your details and we'll respond within 24 hours.
