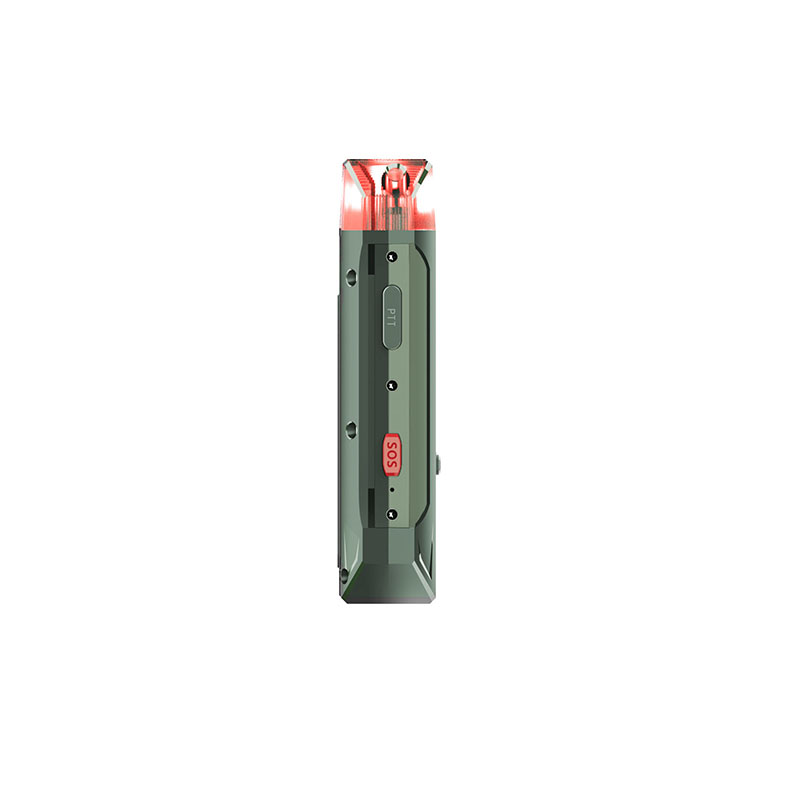

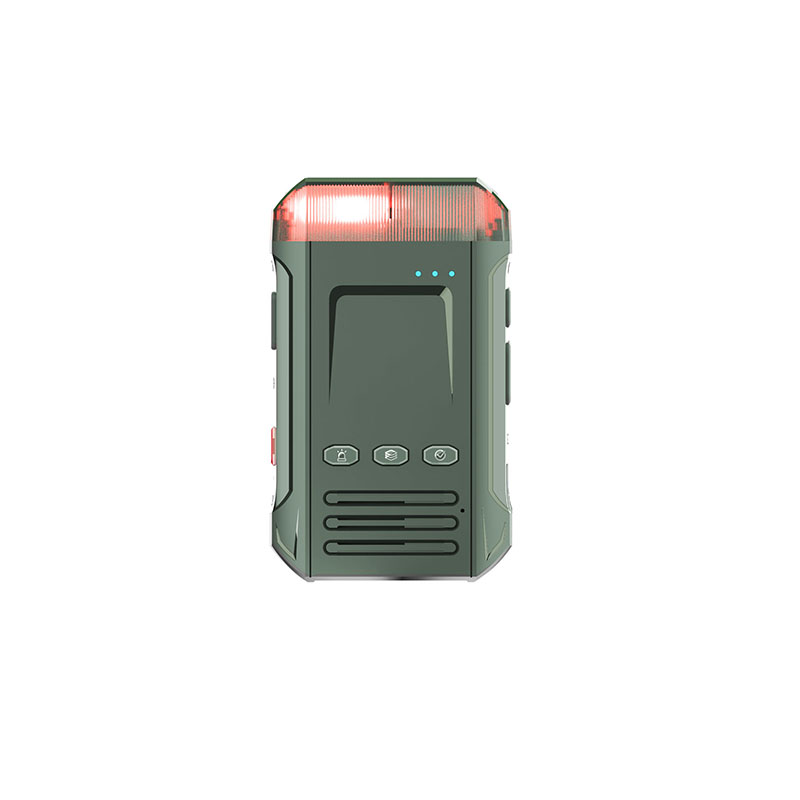

XM200A Beidou III Portable Positioning Terminal with NFC & SOS

XM200A Beidou III Portable Positioning Terminal with NFC & SOS

The XM200A is a durable, intelligent portable terminal designed for real-time personnel and asset tracking. It utilizes Beidou III and GPS for reliable positioning, includes optional NFC for identity management, and offers SOS emergency alert functionality. Built with reinforced plastic and IP67 protection, it ensures dependable performance in demanding outdoor and industrial environments.

Select the number of specifications

Please check the product information you want!

Product Detail

XM200A Beidou III Portable Positioning Terminal with NFC & SOS | Starmax International

BEIDOU III · NFC · SOS

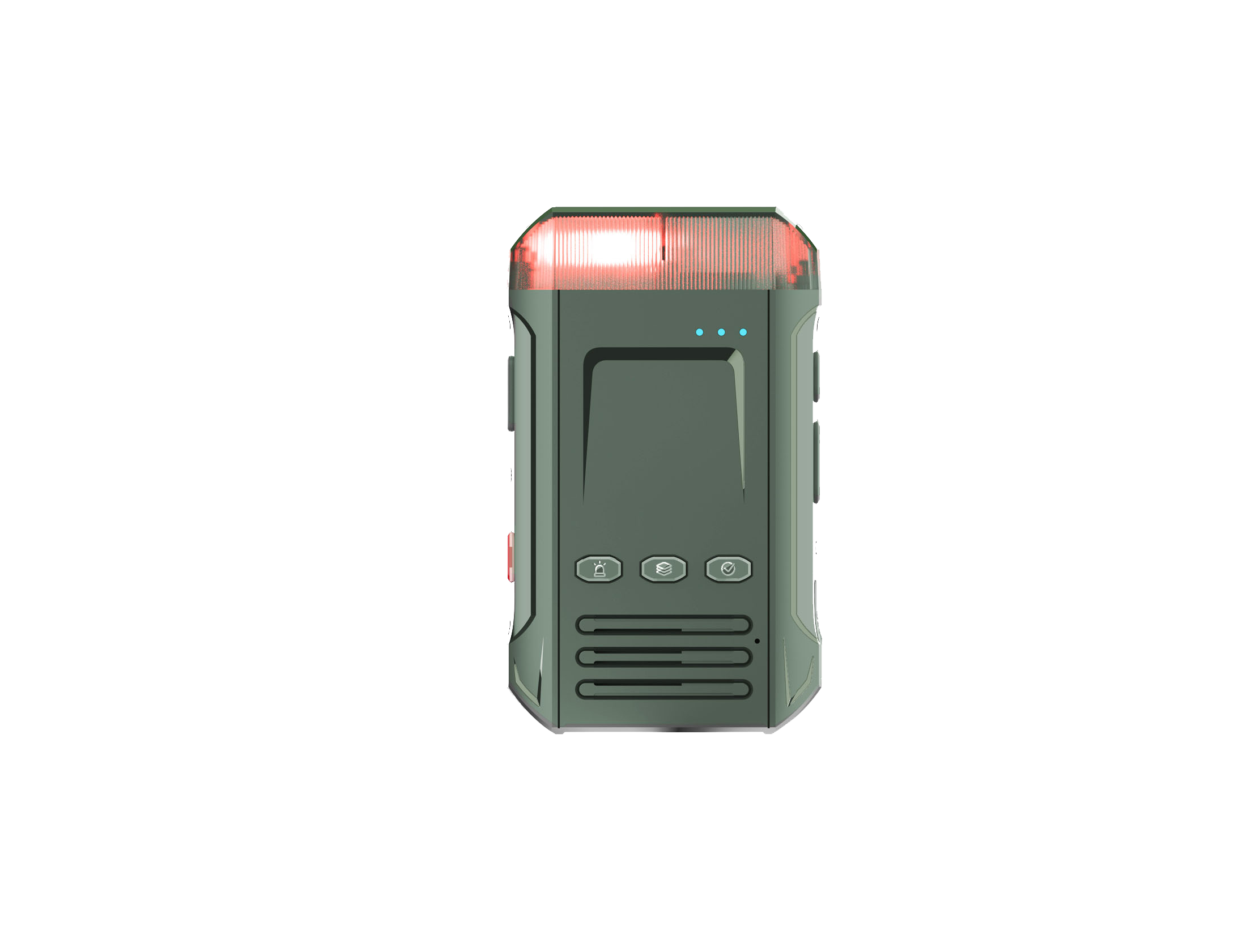

XM200A Beidou III Portable Positioning Terminal

Mission-Critical Positioning, NFC Identification and SOS Emergency Communication in One Rugged Handheld Device.

Beidou III & GPS Positioning

NFC Identification

SOS Emergency Alert

4G CAT1 Communication

IP67 Rugged Design

Android Platform

1m+Positioning Accuracy

IP67Industrial Protection

NFCIdentification

SOSEmergency Alert

Request a Quote View Specifications

PRODUCT OVERVIEW

Reliable Positioning for Mission-Critical Operations

The STARMAX XM200A is a rugged portable positioning terminal integrating BeiDou III satellite positioning, GPS navigation, NFC identification, SOS emergency alerts and industrial-grade wireless communication into a compact handheld platform. Designed for public safety, emergency rescue, patrol management, field inspection and personnel tracking, XM200A delivers reliable positioning and real-time communication even in demanding outdoor environments.

Integrated Solution for Safety and Efficiency

Powered by BeiDou III and GPS dual-mode positioning, XM200A ensures accurate location tracking in remote areas. The built‑in NFC module enables quick personnel identification and asset management, while the SOS button provides one‑tap emergency alerting over 4G LTE.

With IP67 protection, long‑lasting battery, and Android OS, XM200A is the ideal companion for field workers in public safety, energy, utilities, and forestry.

BeiDou III + GPS Dual-Mode Positioning
NFC for Personnel & Asset Identification
One‑Button SOS Emergency Alert
4G CAT1 & TCP/IP Communication
IP67 Waterproof & Dustproof
Android Platform for Custom Apps

1 m+

Positioning Accuracy

IP67

Industrial Protection

NFC

Identification

SOS

Emergency Alert

📡

Beidou III Positioning

High‑accuracy satellite positioning with BeiDou III and GPS for reliable navigation in any environment.

🆘

Emergency SOS

One‑button emergency alert sends real‑time location and distress signal to dispatch center via 4G.

🏷

NFC Identification

Contactless NFC for personnel authentication, asset tracking, and inspection data capture.

🛡

Rugged & Reliable

IP67 waterproof, dustproof, and shock‑resistant design built for harsh field conditions.

CORE FEATURES

Six Powerful Features for Mission-Critical Operations

XM200A combines advanced positioning, communication, and identification technologies in a rugged handheld device, empowering field teams with real‑time situational awareness and emergency response capabilities.

📡

Beidou III Positioning

Supports BeiDou III B1I and GPS L1 for reliable positioning even in remote areas. Stable and accurate.

Learn More →

🆘

Emergency SOS

One‑button SOS triggers instant alert with location data via 4G CAT1 network to your dispatch center.

Learn More →

📶

4G Communication

Integrated 4G CAT1 module supports TCP/IP, UDP, and HTTP for real‑time data transmission and remote monitoring.

Learn More →

📱

Android Platform

Runs on Android OS, allowing installation of custom industry applications for patrol, inspection, and emergency response.

Learn More →

🏷

NFC Identification

Built‑in NFC for personnel authentication, asset tagging, and rapid data exchange in the field.

Learn More →

🛡

IP67 Rugged Design

Waterproof, dustproof, and shockproof housing meets IP67 standards, ensuring durability in extreme conditions.

Learn More →

EXPLORE EVERY DETAIL

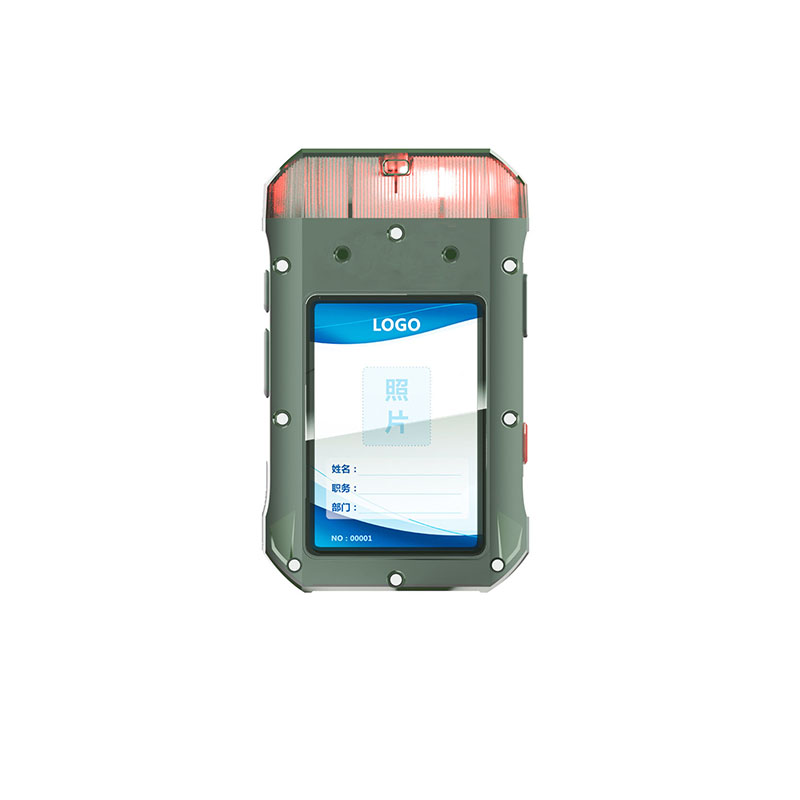

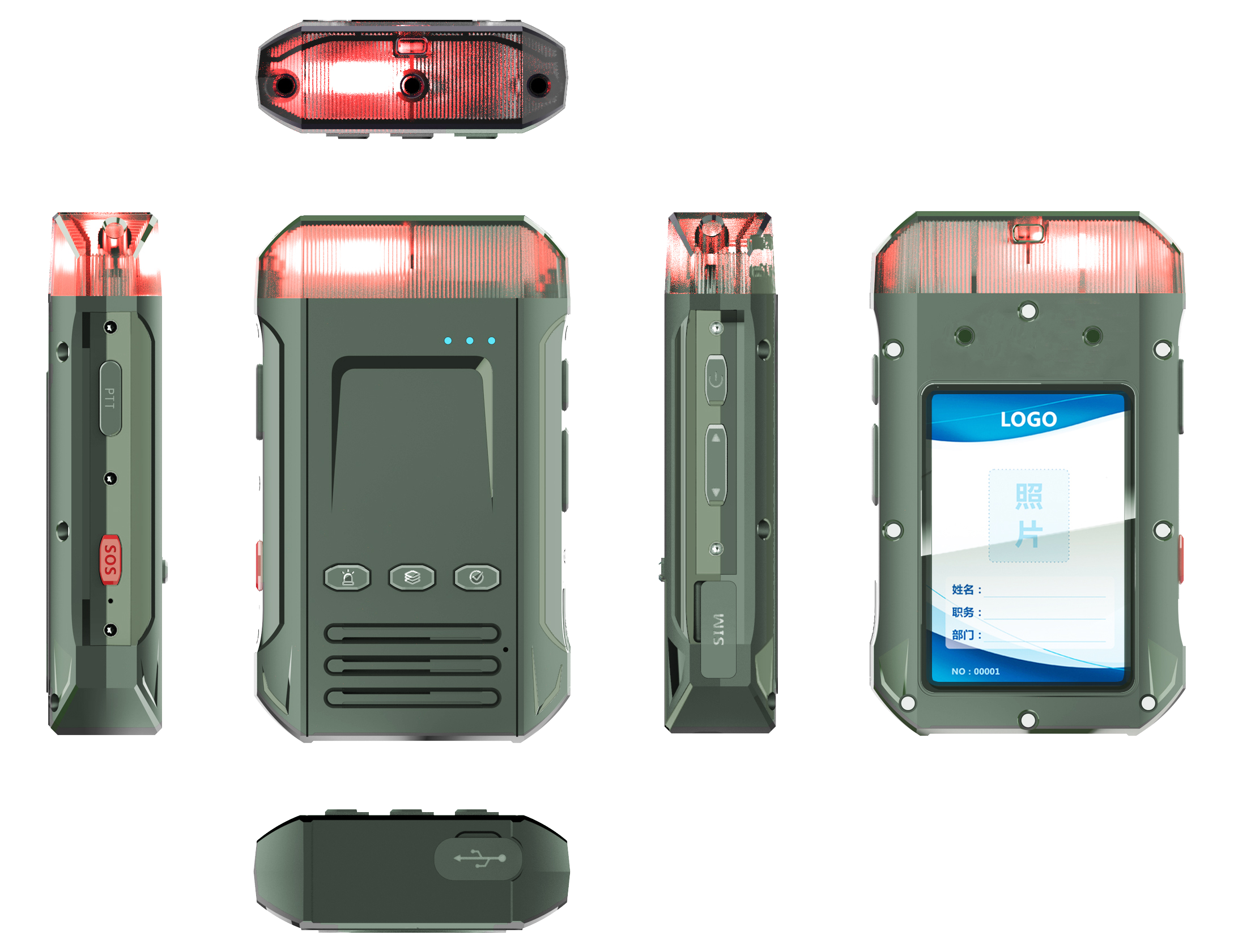

Interactive Product Explorer

Hover over any hotspot or click on a component to learn more about the key features of XM200A.

Key Components

GNSS Antenna BeiDou III + GPS
SOS Button Emergency alert
NFC Module Contactless ID
Loud Speaker Clear audio
Type-C Port Charging & data
Battery 3000mAh
SIM Card 4G connectivity
Camera Documentation

BEIDOU III TECHNOLOGY

China's BeiDou III Satellite Navigation System

XM200A leverages the BeiDou III global navigation satellite system, providing high‑accuracy positioning, timing, and short‑message communication capabilities for mission‑critical operations.

BD III

BeiDou III Satellite Signal

XM200A receives B1I signals from BeiDou III satellites, ensuring robust coverage and high‑reliability positioning in Asia‑Pacific and globally.

Real‑Time Positioning

Onboard GNSS engine processes satellite data to compute accurate position, velocity, and time (PVT) with horizontal accuracy better than 1 meter.

Personnel Tracking

Position data is transmitted via 4G network to the control center, enabling real‑time tracking and management of field personnel.

Control Center Integration

Data feeds into your existing monitoring platform for situational awareness, resource allocation, and emergency response coordination.

EMERGENCY WORKFLOW

From SOS to Rescue – in Seconds

When every second counts, XM200A ensures your emergency alert reaches the right people instantly. The workflow below illustrates the complete emergency communication chain.

👷

Worker

Field personnel

→

🆘

SOS Trigger

Press SOS button

→

📡

XM200A

Position + Alert

→

📶

4G Network

LTE transmission

→

🏢

Dispatch Center

Receive & analyze

→

🚒

Emergency Team

Deploy rescue

→

❤️

Rescue

Mission complete

APPLICATIONS

Versatile Across Critical Industries

XM200A is designed for organizations that require reliable positioning, identification, and emergency communication in demanding environments.

🚑

Emergency Rescue

Rapidly locate and coordinate rescue teams during natural disasters, accidents, and search‑and‑rescue operations.

Learn More

👮

Security Patrol

Track security personnel in real‑time, verify identities via NFC, and ensure rapid response to incidents.

Learn More

🏛️

Public Safety

Enable law enforcement and first responders with accurate location data and emergency alerting capabilities.

Learn More

⚡

Utilities Inspection

Monitor field workers during power line, pipeline, and infrastructure inspections with real‑time tracking and SOS.

Learn More

🌲

Forestry Protection

Track forest rangers, monitor wildlife corridors, and ensure safety in remote forest areas with reliable communication.

Learn More

🔧

Pipeline Inspection

Equip pipeline inspectors with precise positioning and emergency alerting to enhance safety and operational efficiency.

Learn More

TECHNICAL SPECIFICATIONS

Detailed Specifications

Comprehensive technical data for the XM200A Beidou III Portable Positioning Terminal. Click on each category to expand.

General+

OS	Android 10.0
CPU	MTK 6739 Quad-core 1.5GHz
RAM/ROM	2GB / 16GB
Display	2.4' IPS HD 320×240
Touchscreen	Capacitive, 5-point, glove support
Dimensions	142 × 63 × 24 mm
Weight	250g (including battery)

Communication+

4G CAT1 Bands	FDD: B1/3/5/8; TDD: B34/38/39/40/41
WCDMA	B1/2/5/8
GSM	850/900/1800/1900
WiFi	2.4G/5G 802.11 b/g/n
Bluetooth	BT4.0
Protocols	UDP/TCP, HTTP

GNSS Performance+

Satellite Systems	BeiDou III (B1I), GPS
Positioning Accuracy	5–10 meters (CEP)
Sensitivity	Better than -162 dBm
Time Accuracy	1PPS 20 ns
Speed Accuracy	0.1 m/s CEP
Reacquisition	-158 dBm

NFC+

Frequency	13.56 MHz
Protocols	ISO14443A/B, ISO15693
Read Distance	0–5 cm
Application	Personnel ID, asset tagging

Battery & Power+

Type	Lithium battery, 3.8V / 4500mAh
Charging	Micro USB 2.0, 5V/2A
Working Current	~300 mA

Physical & Environmental+

Protection	IP67 (waterproof & dustproof)
Drop Resistance	1.2 meters
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +70°C
Sensors	Accelerometer, geomagnetic, distance, light, gyroscope

Accessories+

Included	Power adapter (5V/2A), USB data cable, Intercom antenna, Utility knife
Optional	Car charger, belt clip, external antenna

DOWNLOADS & CERTIFICATIONS

Resources & Downloads

Access product manuals, firmware, SDK, certificates, and warranty information for XM200A.

📄

Datasheet

Complete specifications and features

Download PDF

📦

Firmware

Latest firmware update package

Download

📘

User Manual

Setup, operation, and maintenance guide

Download PDF

⚙️

SDK & API

Software development kit for custom apps

Download ZIP

📜

Certificates

Compliance, CE, FCC, RoHS reports

Download ZIP

🛡

Warranty

Warranty policy and registration

Download PDF

FAQ

Frequently Asked Questions

Find answers to the most common questions about the XM200A Beidou III Portable Positioning Terminal.
