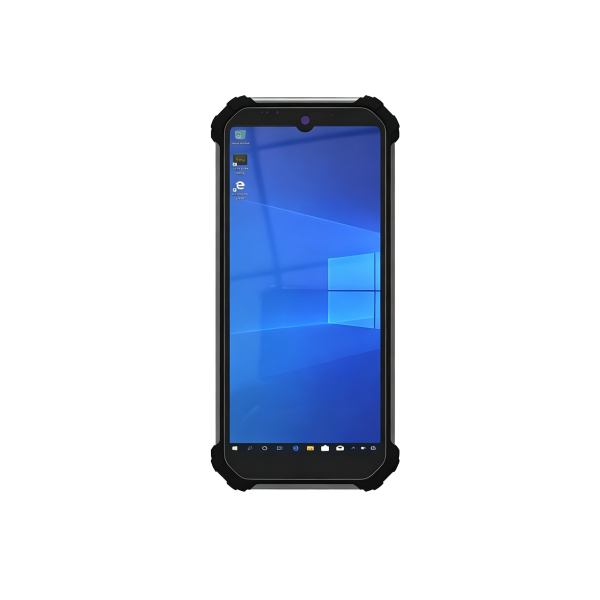

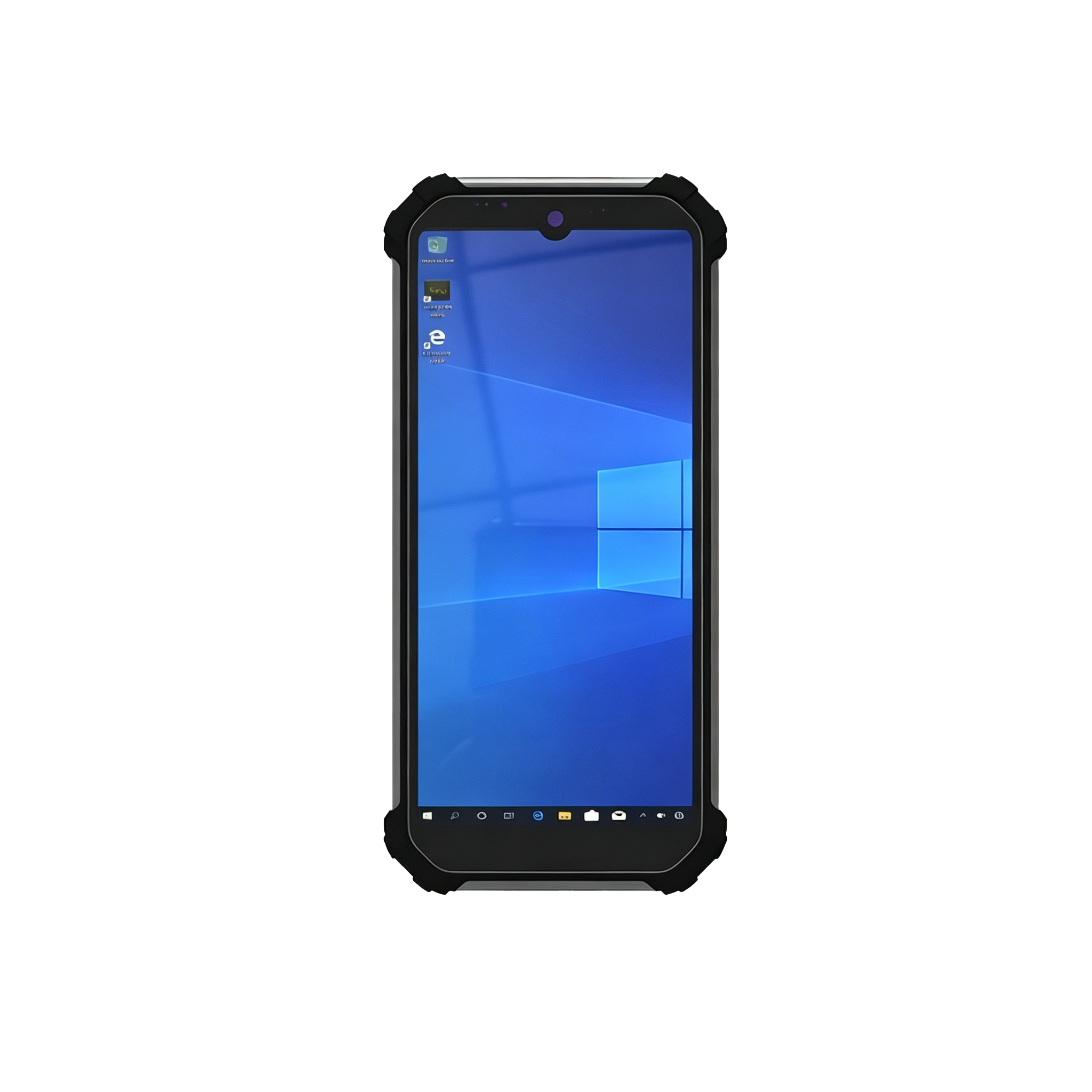

XM650 Rugged Windows Handheld with Beidou GPS
XM650 Rugged Windows Handheld with Beidou GPS

XM650 Rugged Windows Handheld with Beidou GPS

The XM650 is a durable Windows-based handheld terminal built for demanding outdoor and industrial use. With multi-GNSS positioning, IP67 ruggedness, long battery life, and flexible connectivity, it delivers reliable performance for field data collection, asset tracking, and mobile computing in logistics, utilities, and field service applications.

XM650 Rugged Windows Handheld with Beidou GPS

Select the number of specifications

Please check the product information you want!

Product Detail

RUGGED WINDOWS HANDHELD

XM650 Rugged Windows Handheld with Beidou GPS for Industrial Data Collection

IP67 rugged Windows handheld with Beidou GPS, 4G LTE & barcode scanner — designed for industrial data collection, logistics, warehousing, field inspection, and mobile workforce applications.

Windows 10/11
Intel N100
IP67 Protection
5000mAh Battery
Windows 11OS
Intel N100CPU
IP67Protection
5000mAhBattery
Request a Quote           Download Datasheet
XM650 Rugged Windows Handheld with Beidou GPS

Why Choose XM650

Built for enterprise mobility and industrial data collection — the XM650 delivers Windows performance, rugged durability, and professional barcode scanning in one compact handheld.

🖥️

Windows Industrial Platform

Intel Alder Lake N100 with Windows 10/11 — full desktop compatibility in a handheld.

Windows 11Intel N1008‑16GB
📇

Industrial Barcode Collection

Optional professional 2D barcode scanner — ideal for warehouse, retail, and inventory.

2D ScannerWarehouseRetail
🛡️

Rugged Protection

IP65/IP67 waterproof, 1.2m drop resistant, industrial housing — built for field work.

IP671.2m DropIndustrial
🔋

Full‑Day Operation

5000mAh battery with fast charging — keep working all shift without recharging.

5000mAhFast ChargeType‑C
📍

Multi‑GNSS Navigation

GPS, BeiDou, GLONASS — high positioning accuracy for field tracking and GIS.

GPSBeiDouGLONASS
🔌

Flexible Expansion

Dual SIM, USB 3.0, Pogo Pin, TF Card — versatile connectivity for any deployment.

Dual SIMUSB 3.0Pogo Pin
PRODUCT OVERVIEW

Rugged Windows Handheld for Industrial Data Collection

The XM650 is a rugged Windows handheld computer engineered for industrial data collection, logistics, warehousing, field inspection, and mobile workforce applications. Powered by Intel® N100, it features IP67 protection, Beidou/GPS/GLONASS positioning, 4G LTE, dual-band Wi-Fi, optional 2D barcode scanning, and large memory options up to 16GB RAM and 512GB SSD.

With versatile expansion ports, long battery life, and enterprise-grade reliability, the XM650 delivers efficient mobile computing in demanding environments. Whether in warehouses, factories, construction sites, or utility fields, this rugged PDA ensures stable operation and fast, accurate data capture.

XM650 industrial handheld computer for data collection

Product Highlights

Key specifications at a glance — the XM650 delivers where it matters.

6.5″Display
Intel N100CPU
5000mAhBattery
IP67Protection
16GBRAM
512GBStorage

Industrial Rugged Design

Built to survive the toughest conditions — from the warehouse floor to the field.

💧

IP67 Waterproof

Protected against water and dust ingress

📏

1.2m Drop

Drop resistant for field use

🧹

Dustproof

Sealed enclosure prevents dust ingress

💥

Shockproof

Reinforced chassis for industrial environments

🌡️

Wide Temperature

-20°C to +60°C operating range

Key Features

The XM650 combines Windows performance, rugged durability, and professional data capture capabilities.

⚡

Intel® N100 Windows Performance

Powered by the Intel Alder Lake-N N100 processor with Windows 10 or Windows 11, providing smooth multitasking and excellent compatibility with enterprise software.

Windows 10/11
🛡️

IP67 Rugged Protection

Designed for industrial environments with IP67 waterproof, dustproof, 1.2m drop resistance, and outdoor reliability — suitable for factories, construction sites, ports, warehouses, mining, and public utilities.

IP67 · 1.2m Drop
📍

Multi‑GNSS Positioning

Supports BeiDou, GPS, and GLONASS — providing positioning accuracy for asset tracking, utility inspection, survey assistance, fleet management, and outdoor navigation.

GPS · BeiDou · GLONASS
📶

High‑Speed Wireless Communication

Supports 4G LTE, dual-band Wi-Fi, Bluetooth 5.0, and NFC — ensuring stable communication in indoor and outdoor working environments.

4G LTE · WiFi · NFC
📇

Optional Professional Barcode Scanner

Optional integrated 2D barcode scanning module enables warehouse inventory, logistics management, retail operations, manufacturing traceability, and asset identification.

2D Barcode Scanner
🔋

Long Battery Life

Large-capacity 5000mAh battery supports all-day field operation while maintaining lightweight portability.

5000mAh · All‑day

Application Scenarios

The XM650 is widely used across multiple industries for reliable mobile data collection and field operations.

🏢

Warehouse Management

Inventory, barcode, asset tracking

Warehouse

Real‑time inventory & scanning

🚚

Logistics & Transportation

Fleet management, route optimization

Logistics

Route planning & delivery proof

🔍

Field Service & Inspection

Asset inspection, data collection

Field Service

Inspection & maintenance

⚡

Utility Inspection

Grid inspection, asset management

Utilities

Power grid & infrastructure

🛍️

Smart Retail

Inventory, price checks, stocktaking

Retail

Inventory & store operations

🏭

Manufacturing

Production tracking, MES, QC

Manufacturing

MES & quality control

Why Choose XM650

Designed for professional industrial applications — reliable, rugged, and enterprise-ready.

✅ Intel® N100 Windows Platform
✅ IP67 Industrial Rugged Design
✅ 4G LTE + Dual-band Wi-Fi
✅ Beidou Multi‑GNSS Positioning
✅ Optional 2D Barcode Scanner
✅ Large Memory up to 16GB + 512GB
✅ Enterprise Expansion Interfaces
✅ Long Battery Life
✅ Reliable Mobile Data Collection

Technical Specifications

Complete technical data for the XM650 rugged Windows handheld computer.

Operating SystemWindows 10 / Windows 11 (Home/Pro/Enterprise)
CPUIntel® Alder Lake-N N100
Memory8GB / 16GB RAM
Storage256GB / 512GB SSD
Display6.5-inch HD Touchscreen (720×1600)
Touch10-Point Capacitive Touch
Camera5MP Front + 13MP Rear
Battery5000mAh 7.6V
ProtectionIP67 (waterproof & dustproof)
Drop Resistance1.2 meters
GNSSBeiDou / GPS / GLONASS
Network4G LTE (global bands)
Wi-FiDual-band Wi-Fi (2.4G / 5G)
BluetoothBluetooth 5.0
NFCOptional
BarcodeOptional 2D Scanner
InterfacesType-C, USB 3.0, Pogo Pin, Dual SIM, TF Card, Headphone
Dimensions180 × 85 × 22 mm
Weight~380g
Operating Temp.-20°C to +60°C

Frequently Asked Questions

Quick answers to common questions about the XM650 rugged Windows handheld.

Ready to Upgrade Your Mobile Workforce?

Contact STARMAX for pricing, OEM customization, SDK support, and technical consultation. We're here to help you deploy the XM650 in your operations.

✅ ISO9001
📋 CE / FCC / RoHS
🔧 OEM / ODM
🏭 Factory Direct
Request PricingDownload DatasheetOEM Service
✉ serenasSun@outlook.com📞 +86 186 7671 6687💬 WhatsApp: +852 6945 5984🌐 www.starmax.ltd

Get a Free Quote

Fill in your details and we'll respond within 24 hours.
